10252 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) SHORT BLOCK ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

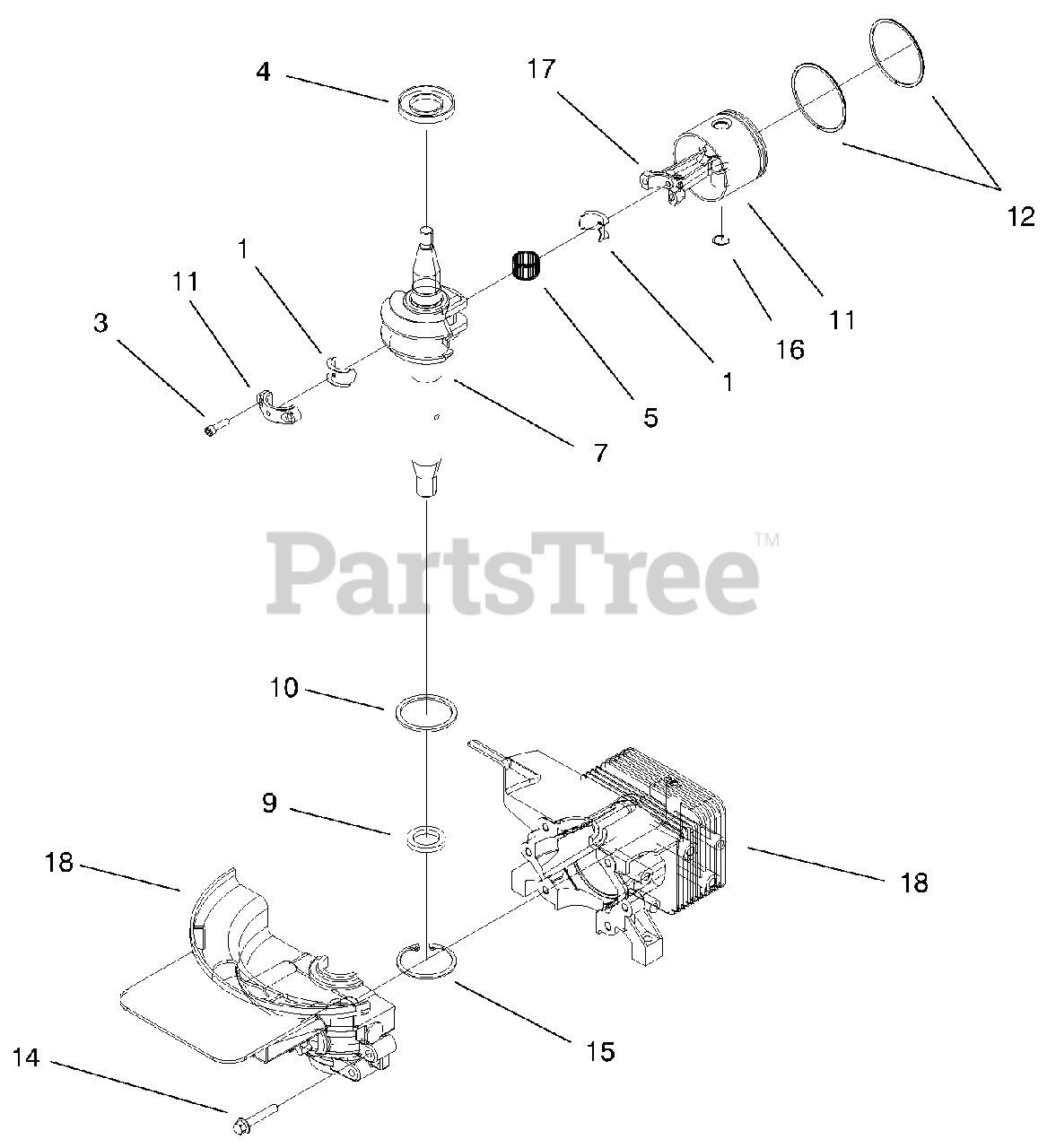

SHORT BLOCK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 677982

Split Liner ASM

$40.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 611393

Screw

$19.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611396

Oil Seal

$5.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 683911

Needle Bearing

$23.99

$

In Stock, Qty 5

0

7

Lawn-Boy 99-2901

Crankshaft & Bearing ASM
(Superseded to 99-2920)

$304.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 94-5764

Oil Seal

$11.99

$

In Stock, Qty 17

0

10

Lawn-Boy 94-5765

Ring Retaining

$

$

Not available

11

Lawn-Boy 95-7628

Piston & Conn Rod ASM
(Superseded to 100-2916)

$

$

Not available

12

Lawn-Boy 95-7626

Ring Set
(Superseded to 100-2916)

$

$

Not available

14

Lawn-Boy 94-5781

Screw-HWH

$6.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 98-7046

Ring-Retaining
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 303712

Ring-Retaining

$2.99

$

In Stock, Qty 13

0

17

Lawn-Boy 95-7629

Connecting Rod ASM

$130.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 95-7631

Cylinder & Crankcase ASM

$

$

Not available

Lawn-Boy 95-7636

Short Block ASM

Note: Not Illustrated

$

$

Not available

Lawn-Boy 609790

Sealant

Note: Not Illustrated

$61.99

$

Usually ships in 3-6 days

0

Lawn-Boy 610372

Sealant

Note: Not Illustrated

$25.99

$

In Stock, only 1 left!

0
