10252 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) CARBURETOR ASSEMBLY NO. 98-7042 Parts Diagram

SilverPro Series Walk-Behind Mower

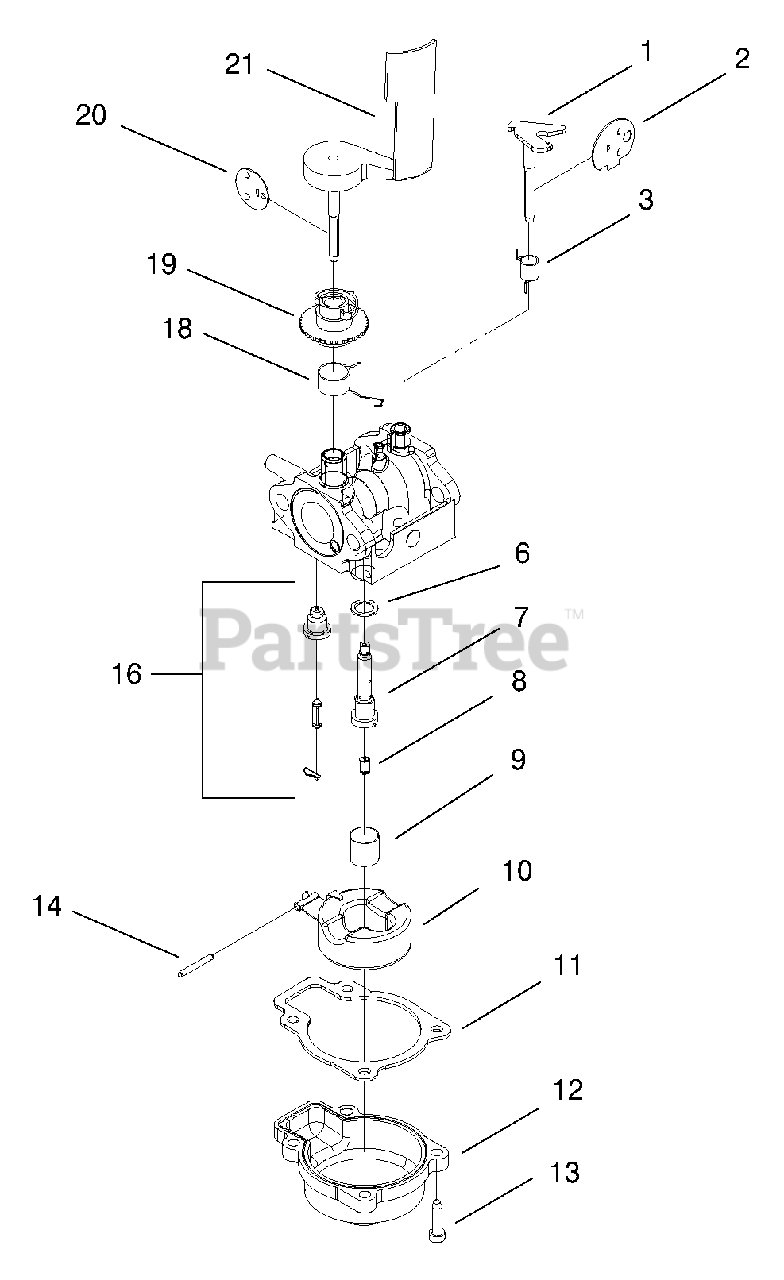

CARBURETOR ASSEMBLY NO. 98-7042 Parts Diagram

  • Title
1

Lawn-Boy 95-5581

SHAFT-CHOKE

$3.99

$

In Stock, Qty 5

0

2

Lawn-Boy 94-5788

DISC-CHOKE

$2.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 95-5583

SPRING-CHOKE

$3.49

$

In Stock, Qty 7

0

6

$1.99

$

In Stock, only 4 left!

0

7

$31.99

$

In Stock, Qty 6

0

8

Lawn-Boy 98-1357

JET-MAIN (77.5)

$12.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 94-5787

FILTER-FUEL

$2.49

$

In Stock, Qty 15

0

10

Lawn-Boy 95-1899

FLOAT & ARM ASM

$16.99

$

In Stock, Qty 15

0

11

$2.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 92-9691

CHAMBER-FLOAT

$37.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 608850

SCREW-HH

$1.99

$

In Stock, Qty 5

0

14

Lawn-Boy 92-6389

PIN-STRAIGHT

$5.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 92-9697

VALVE/SEAT-FLOAT

$21.99

$

In Stock, Qty 14

0

18

Lawn-Boy 98-7011

SPRING-THROTTLE

$3.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 610834

COLLAR-ADJUST, AIRVANE

$3.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 98-7047

DISC-THROTTLE

$1.99

$

In Stock, Qty 14

0

21

Lawn-Boy 92-6376

Air Vane&shaft
(Superseded to 104-4430)

$11.99

$

In Stock, Qty 20+

0
