1026 (1697329-00) - Briggs & Stratton 26" Snow Thrower, 9.5 Gross TP (2020) Discharge Chute Group Parts Diagram

26" Snow Thrower, 9.5 Gross TP

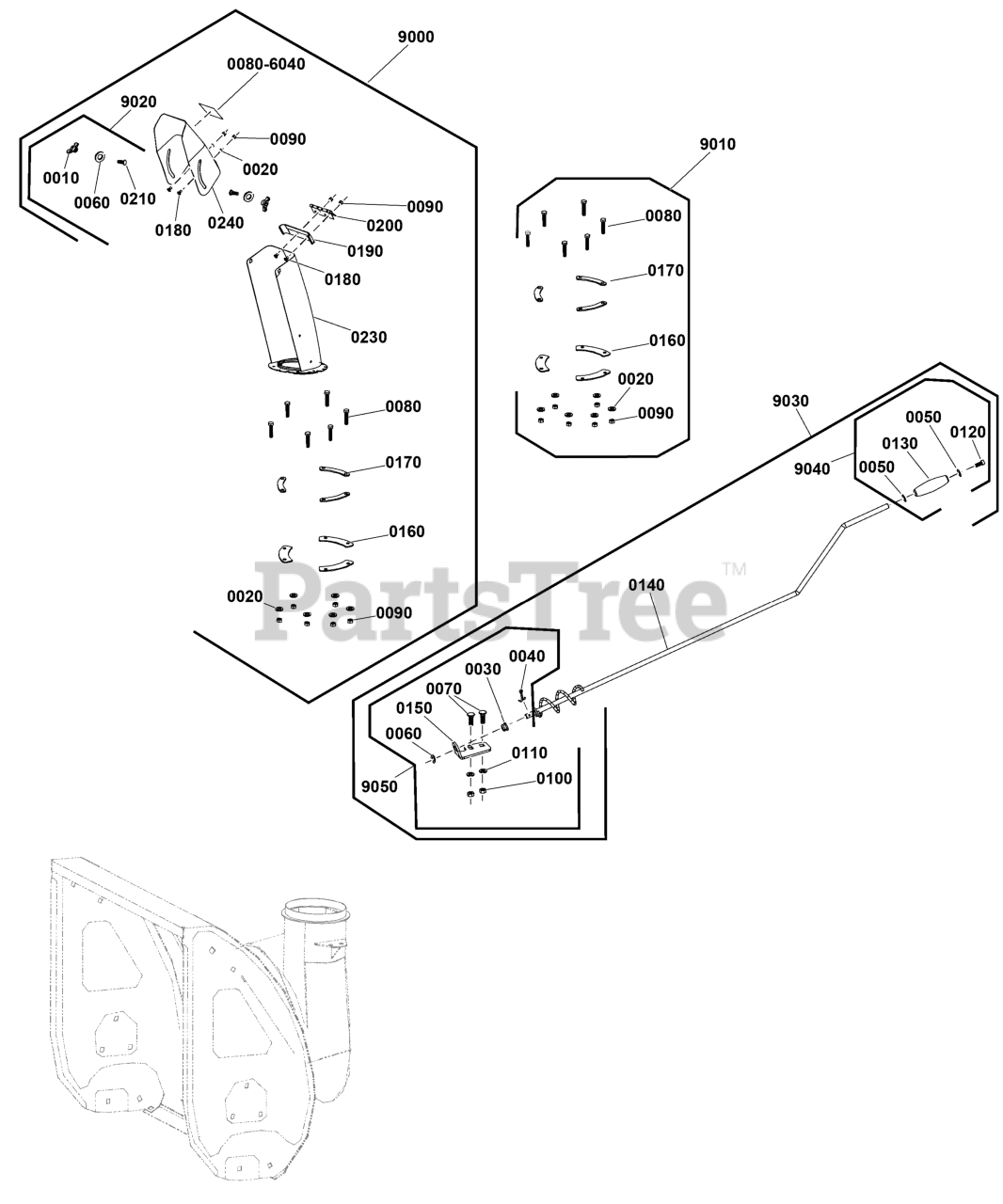

Discharge Chute Group Parts Diagram

  • Title

9000

Murray 84006273

KIT-CHUTE ASSEMBLY, BLACK, NA

Note: (Incl. Ref. No. 0010, 0020, 0060, 0080, 0080-6040, 0090, 0160, 0170, 0180, 0190, 0200, 0210, 0230, 0240,)

$154.99

$

Usually ships in 2-12 days

0

0010

KNOB, Wing, M8

$

$

Not available

0020

WASHER, 6x12x.7, Flat

$

$

Not available

0060

WASHER, Flat, 10 X 20 X 2

$

$

Not available

0080

SCREW, Hex Head, M6X16

$

$

Not available

0080-6040

Murray 1737865YP

DECAL, Danger Chute Warning, FR/ENG

$12.99

$

Usually ships in 2-12 days

0

0090

NUT, Lock, M6

$

$

Not available

0160

PLATE, Chute Mounting, LD

$

$

Not available

0170

GASKET, Chute Mounting, LD

$

$

Not available

0180

BOLT, Phillips Head, M6X10

$

$

Not available

0190

GASKET, Chute Deflector, LD

$

$

Not available

0200

HINGE, Chute

$

$

Not available

0210

BOLT, Carriage, M8 X 25

$

$

Not available

0230

WELDMENT, Chute, LD

$

$

Not available

0240

WELDMENT, Chure Deflector, LD

$

$

Not available

9010

Murray 84006274

KIT, Hardware, Chute Rotation

Note: (Incl. Ref. No. 0020, 0080, 0090, 0160, 0170)

$31.99

$

Usually ships in 2-12 days

0

0020

WASHER, 6x12x.7, Flat

$

$

Not available

0080

SCREW, Hex Head, M6X16

$

$

Not available

0090

NUT, Lock, M6

$

$

Not available

0160

PLATE, Chute Mounting, LD

$

$

Not available

0170

GASKET, Chute Mounting, LD

$

$

Not available

9020

Murray 707759

KIT-WING KNOB, CHUTE

Note: (Incl. Ref. No. 0010, 0060, 0210)

$22.99

$

Usually ships in 2-12 days

0

0010

KNOB, Wing, M8

$

$

Not available

0060

WASHER, Flat, 10 X 20 X 2

$

$

Not available

0210

BOLT, Carriage, M8 X 25

$

$

Not available

9030

Murray 84006276

KIT-CHUTE ROTATION

Note: (Incl. Ref. No. 0030, 0040, 0050, 0060, 0070, 0100, 0110, 0120, 0130, 0140, 0150)

$

$

Currently unavailable

0030

RING, SJ Mounting Plate, Plastic

$

$

Not available

0040

PIN, Cotter, 2.2X25

$

$

Not available

0050

WASHER, Flat, 10 X 20 X 1

$

$

Not available

0060

WASHER, Flat, 10 X 20 X 2

$

$

Not available

0070

BOLT, Carriage, M8 X 18

$

$

Not available

0100

NUT, Lock, M8

$

$

Not available

0110

WASHER, FLAT, 8X16X1.2

$

$

Not available

0120

HEX SCREW, Flange, M6X10

$

$

Not available

0130

HANDLE, Barrel, LD

$

$

Not available

0140

ROD, Crank, LD

$

$

Not available

0150

BRACKET, Chute Rod, LD

$

$

Not available

9040

Murray 84006275

KIT-HANDLE, CHUTE ROD

Note: (Incl. Ref. No. 0050, 0120, 0130)

$39.99

$

Usually ships in 0 days

0

0050

WASHER, Flat, 10 X 20 X 1

$

$

Not available

0120

HEX SCREW, Flange, M6X10

$

$

Not available

0130

HANDLE, Barrel, LD

$

$

Not available

9050

Murray 84006278

KIT-MOUNTING PLATE, CHUTE ROTATION

Note: (Incl. Ref. No. 0030, 0040, 0060, 0070, 0100, 0110, 0150)

$

$

Currently unavailable

0030

RING, SJ Mounting Plate, Plastic

$

$

Not available

0040

PIN, Cotter, 2.2X25

$

$

Not available

0060

WASHER, Flat, 10 X 20 X 2

$

$

Not available

0070

BOLT, Carriage, M8 X 18

$

$

Not available

0100

NUT, Lock, M8

$

$

Not available

0110

WASHER, FLAT, 8X16X1.2

$

$

Not available

0150

BRACKET, Chute Rod, LD

$

$

Not available
