1026 (1697329-00) - Briggs & Stratton 26" Snow Thrower, 9.5 Gross TP (2020) HandlesGroup Parts Diagram

26" Snow Thrower, 9.5 Gross TP

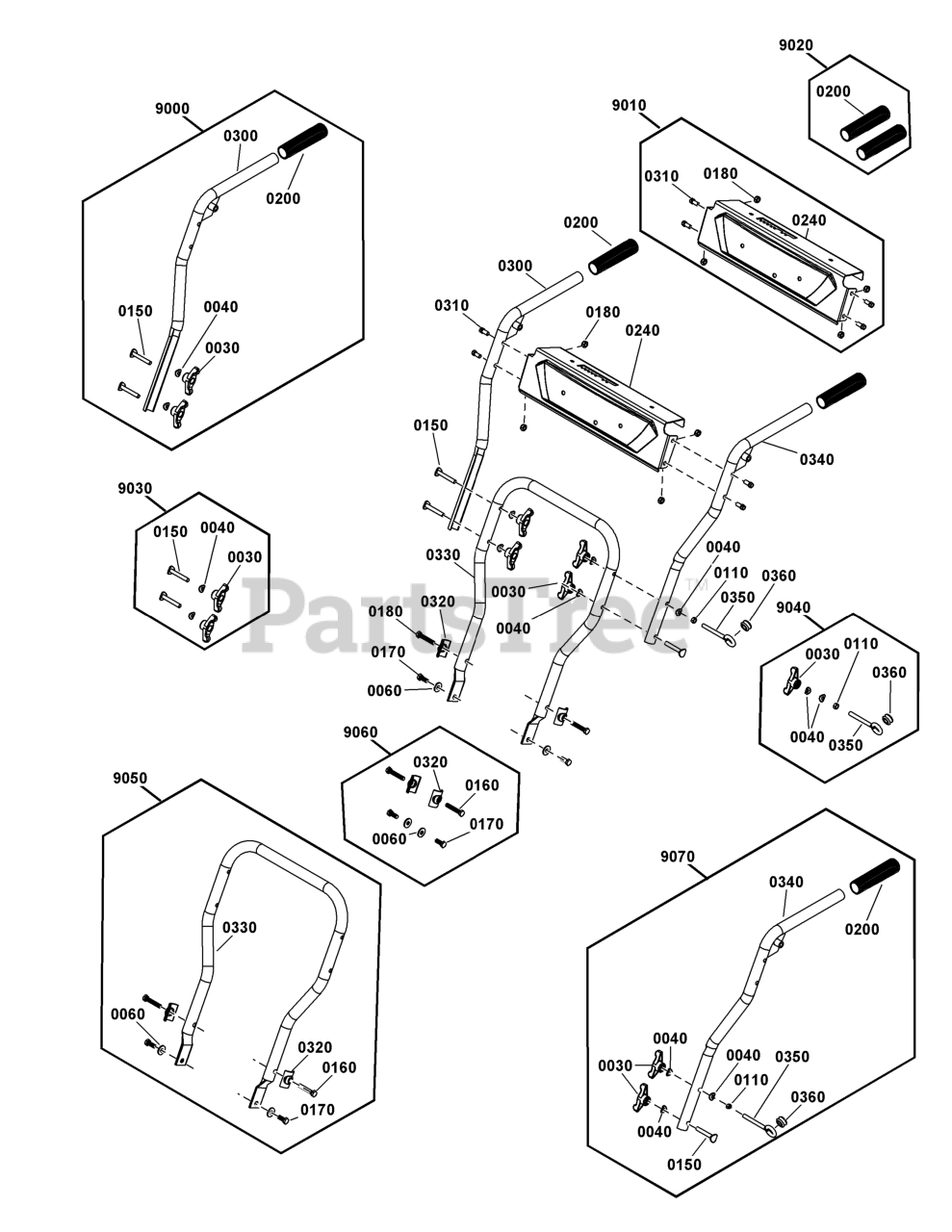

HandlesGroup Parts Diagram

  • Title

9000

Murray 770115

KIT, UPPER HANDLE, RIGHT

Note: (Incl. Ref. Nos. 0030, 0040, 0150, 0200, 0300)

$58.99

$

Usually ships in 2-12 days

0

0030

KNOB, Wing, M8

$

$

Not available

0040

WASHER, M8, Curved

$

$

Not available

0150

BOLT, Carriage, M8 X 55

$

$

Not available

0200

GRIP, Hand

$

$

Not available

0300

HANDLE, Right Upper

$

$

Not available

9010

Murray 84006339

Kit, Dash

Note: (Incl. Ref. Nos. 0180, 0240, 0310)

$

$

Currently unavailable

0180

NUT, Lock, M8

$

$

Not available

0240

DASHBOARD, Sub

$

$

Not available

0310

SCREW, Flange, M8 X 40

$

$

Not available

9020

Murray 770080

KIT, Grip, Handle

Note: (Incl. Ref. No. 0200)

$20.99

$

Usually ships in 2-12 days

0

0200

GRIP, Hand

$

$

Not available

9030

Murray 707835

KIT, UPPER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 0030, 0040, 0150)

$38.99

$

Usually ships in 2-12 days

0

0030

KNOB, Wing, M8

$

$

Not available

0040

WASHER, M8, Curved

$

$

Not available

0150

BOLT, Carriage, M8 X 55

$

$

Not available

9040

Murray 84006340

KIT, Hardware, Handle

Note: (Incl. Ref. Nos. 0030, 0040, 0110, 0350, 0360)

$

$

Currently unavailable

0030

KNOB, Wing, M8

$

$

Not available

0040

WASHER, M8, Curved

$

$

Not available

0110

NUT, Hex, M8

$

$

Not available

0350

EYEBOLT, M8

$

$

Not available

0360

GROMMET, Eyebolt

$

$

Not available

9050

Murray 707807

KIT, LOWER HANDLE

Note: (Incl. Ref. Nos. 0060, 0160, 0170, 0320, 0330)

$90.99

$

Usually ships in 2-12 days

0

0060

WASHER, 8x22x2, Flat

$

$

Not available

0160

SCREW, Hex Head, M8 X 45

$

$

Not available

0170

SCREW, Hex Head, M8X20

$

$

Not available

0320

WASHER

$

$

Not available

0330

HANDLE, Lower

$

$

Not available

9060

Murray 707806

KIT, LOWER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 0060, 0160, 0170, 0320)

$10.99

$

Usually ships in 2-12 days

0

0060

WASHER, 8x22x2, Flat

$

$

Not available

0160

SCREW, Hex Head, M8 X 45

$

$

Not available

0170

SCREW, Hex Head, M8X20

$

$

Not available

0320

WASHER

$

$

Not available

9070

Murray 770116

KIT, UPPER HANDLE, LEFT

Note: (Incl. Ref. Nos. 0030, 0040, 0150, 0200, 0340, 0350, 0360)

$55.99

$

Usually ships in 2-12 days

0

0030

KNOB, Wing, M8

$

$

Not available

0040

WASHER, M8, Curved

$

$

Not available

0150

BOLT, Carriage, M8 X 55

$

$

Not available

0200

GRIP, Hand

$

$

Not available

0340

HANDLE, Left Upper

$

$

Not available

0350

EYEBOLT, M8

$

$

Not available

0360

GROMMET, Eyebolt

$

$

Not available
