10262 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) ENGINE LEV100-345001B Parts Diagram

Silver Series Walk-Behind Mower

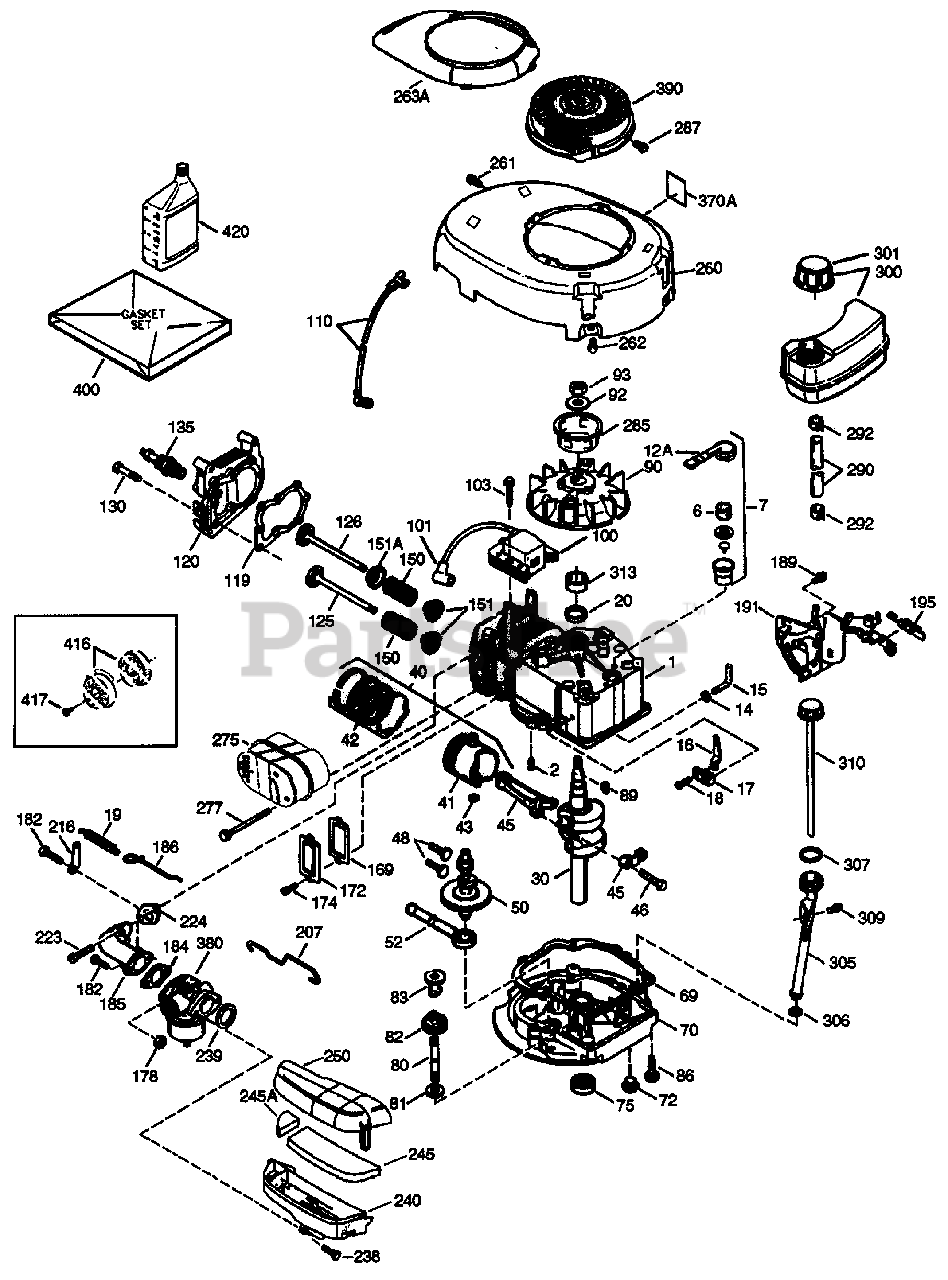

ENGINE LEV100-345001B Parts Diagram

  • Title

1

Lawn-Boy 37027

Cylinder (Incl. 2 & 20)

$

$

Currently unavailable

2

Lawn-Boy 26727

Dowel Pin

$

$

Currently unavailable

6

Lawn-Boy 33734

Breather Element

$

$

Currently unavailable

7

Lawn-Boy 36557

Breather Body Ass'y. (Incl. 6 & 12A)

$

$

Currently unavailable

12A

Lawn-Boy 36558

Breather Cover & Tube (Incl. 12B)

$

$

Currently unavailable

14

Lawn-Boy 28277

Washer

$

$

Currently unavailable

15

Lawn-Boy 30589

Governor Rod (Incl. 14)

$

$

Currently unavailable

16

Lawn-Boy 34839A

Governor Lever

$

$

Currently unavailable

17

Lawn-Boy 31335

Governor Lever Clamp

$

$

Currently unavailable

18

Lawn-Boy 651018

Screw

$

$

Currently unavailable

19

Lawn-Boy 36281

Extension Spring
(Superseded to 700777)

$

$

Not available

20

Lawn-Boy 32600

Oil Seal

$

$

Currently unavailable

30

Lawn-Boy 37124

Crankshaft

$

$

Currently unavailable

40

Lawn-Boy 35544A

Piston, Pin & Ring Set (Std.)

$

$

Currently unavailable

40

Lawn-Boy 33545A

Piston, Pin & Ring Set (.010" OS)

$

$

Currently unavailable

40

Lawn-Boy 35546

Piston, Pin & Ring Set (.020" OS)

$

$

Not available

41

Lawn-Boy 35541

Piston & Pin Ass'y. (Std.) (Incl. 43)

$

$

Currently unavailable

41

Lawn-Boy 35542

Piston & Pin Ass'y. (.010" OS)(Incl. 43)

$

$

Currently unavailable

41

Lawn-Boy 35543

Piston & Pin Ass'y (.020" OS)(Incl. 43)
(Superseded to 704767)

$

$

Not available

42

Lawn-Boy 35547A

Ring Set (Std.)

$

$

Currently unavailable

42

Lawn-Boy 35548A

Ring Set (.010" OS)

$

$

Currently unavailable

42

Lawn-Boy 35549

Ring Set (.020" OS)

$

$

Currently unavailable

43

Lawn-Boy 20381

Piston Pin Retaining Ring

$

$

Currently unavailable

45

Lawn-Boy 36777

Connecting Rod Ass'y. (Incl. 46)

$

$

Currently unavailable

46

Lawn-Boy 32610A

Connecting Rod Bolt

$

$

Currently unavailable

48

Lawn-Boy 27241

Valve Lifter

$

$

Currently unavailable

50

Lawn-Boy 37032

Camshaft (MCR)

$

$

Currently unavailable

52

Lawn-Boy 29914

Oil Pump Ass'y.

$

$

Currently unavailable

69

Lawn-Boy 35261

Mounting Flange Gasket

$

$

Currently unavailable

70

Lawn-Boy 36995

Mounting Flange (Incl. 72 thru 83)

$

$

Currently unavailable

72

Lawn-Boy 36083

Oil Drain Plug

$

$

Currently unavailable

75

Lawn-Boy 27897

Oil Seal

$

$

Currently unavailable

80

Lawn-Boy 30574A

Governor Shaft

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer

$

$

Currently unavailable

82

Lawn-Boy 30591

Governor Gear Ass'y. (Incl. 81)

$

$

Currently unavailable

83

Lawn-Boy 30588A

Governor Spool

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw

$

$

Currently unavailable

89

Lawn-Boy 611004

Flywheel Key

$

$

Not available

90

Lawn-Boy 611112

Flywheel
(Superseded to 611113)

$

$

Not available

92

Lawn-Boy 650815

Belleville Washer

$

$

Currently unavailable

93

Lawn-Boy 650816

Flywheel Nut

$

$

Currently unavailable

100

Lawn-Boy 34443B

Solid State Ignition

$

$

Currently unavailable

101

Lawn-Boy 610118

Spark Plug Cover

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw, Torx T-15,

$

$

Currently unavailable

110

Lawn-Boy 37047

Ground Wire

$

$

Currently unavailable

119

Lawn-Boy 37028

Cylinder Head Gasket

$

$

Currently unavailable

120

Lawn-Boy 36788

Cylinder Head
(Superseded to 704876)

$

$

Not available

125

Lawn-Boy 36779

Exhaust Valve (Std.) (Incl. 151)

$

$

Currently unavailable

125

Lawn-Boy 36780

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Currently unavailable

126

Lawn-Boy 36781

Intake Valve (Std.) (Incl. 151)

$

$

Currently unavailable

126

Lawn-Boy 36782

Intake Valve (1/32" OS) (Incl. 151)

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw

$

$

Currently unavailable

135

Lawn-Boy 35395

Resistor Spark Plug (RJ19LM)

$

$

Currently unavailable

150

Lawn-Boy 35991

Valve Spring

$

$

Currently unavailable

151

Lawn-Boy 31673

Valve Spring Cap
(Superseded to 742357)

$

$

Not available

151A

Lawn-Boy 40017

Intake Valve Seal

$

$

Not available

169

Lawn-Boy 36783

Valve Cover Gasket

$

$

Currently unavailable

172

Lawn-Boy 36784

Valve Cover

$

$

Not available

174

Lawn-Boy 30200

Screw

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut & Lock Washer

$

$

Currently unavailable

182

Lawn-Boy 6201

Screw
(Superseded to 111-1250)

$

$

Not available

184

Lawn-Boy 26756

Carburetor To Intake Pipe Gasket

$

$

Currently unavailable

185

Lawn-Boy 36785

Intake Pipe

$

$

Not available

186

Lawn-Boy 32653

Governor Link

$

$

Currently unavailable

189

Lawn-Boy 650839

Screw

$

$

Currently unavailable

191

Lawn-Boy 36559

S.E. Brake Bracket (Incl. 195)
(Superseded to 704849)

$

$

Not available

195

Lawn-Boy 610973

Terminal

$

$

Currently unavailable

207

Lawn-Boy 34336

Throttle Link

$

$

Currently unavailable

216

Lawn-Boy 33086

R.P.M. Adjusting Lever

$

$

Currently unavailable

223

Lawn-Boy 650451

Screw

$

$

Currently unavailable

224

Lawn-Boy 36786

Intake Pipe Gasket

$

$

Currently unavailable

238

Lawn-Boy 650806

Screw

$

$

Currently unavailable

239

Lawn-Boy 34338

Air Cleaner Gasket

$

$

Currently unavailable

240

Lawn-Boy 37115

Air Cleaner Body

$

$

Currently unavailable

245

Lawn-Boy 37116

Air Cleaner Filter

$

$

Currently unavailable

245A

Lawn-Boy 37117

Air Cleaner Filter

$

$

Currently unavailable

250

Lawn-Boy 37118

Air Cleaner Cover

$

$

Currently unavailable

260

Lawn-Boy 37125

Blower Housing

$

$

Currently unavailable

261

Lawn-Boy 30200

Screw

$

$

Currently unavailable

262

Lawn-Boy 650831

Screw

$

$

Currently unavailable

263A

Lawn-Boy 36758

Starter Grill

$

$

Currently unavailable

275

Lawn-Boy 36790

Muffler

$

$

Not available

277

Lawn-Boy 650988

Screw

$

$

Currently unavailable

285

Lawn-Boy 35000A

Starter Cup

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw

$

$

Currently unavailable

290

Lawn-Boy 34357

Fuel Line

$

$

Currently unavailable

292

Lawn-Boy 26460

Fuel Line Clamp

$

$

Currently unavailable

300

Lawn-Boy 35586

Fuel Tank (Incl. 292 & 301)
(Superseded to 704776)

$

$

Not available

301

Lawn-Boy 36246

Fuel Cap

$

$

Currently unavailable

305

Lawn-Boy 35577

Oil Fill Tube
(Superseded to 742451)

$281.99

$

Usually ships in 3-6 days

0

306

Lawn-Boy 36996

"O"-Ring

$

$

Currently unavailable

307

Lawn-Boy 35499

"O"-Ring

$

$

Currently unavailable

309

Lawn-Boy 650562

Screw

$

$

Currently unavailable

310

Lawn-Boy 36801

Dipstick
(Superseded to 701191)

$

$

Not available

313

Lawn-Boy 34080

Spacer

$

$

Currently unavailable

370A

Lawn-Boy 36261

Lubrication Decal

$

$

Currently unavailable

380

Lawn-Boy 640118

Carburetor (Incl. 184)

$

$

Currently unavailable

390

Lawn-Boy 590694

Rewind Starter (NOTE: This engine could have been built with 590737 starter.

$

$

Currently unavailable

400

Lawn-Boy 37029

Gasket Set (Incl. Items Marked PK in Notes) Incl. part #'s 26756 (1), 28833 (1) 34338 (1), 35261 (1), 36783 (1), 36786 (1), 36832 (1), 37128 (1).

$

$

Currently unavailable

416

Lawn-Boy 36085

Spark Arrestor Kit (Incl. 417) (Optional)

$

$

Currently unavailable

417

Lawn-Boy 650760

Screw (Optional)

$

$

Currently unavailable

420

Lawn-Boy 730225

SAE 30 4-Cycle Engine Oil (Quart)

$

$

Currently unavailable
