1027 (13A-328-101) - Cub Cadet Rear-Engine Riding Mower (2000) Engine Assembly (Model 1027) Parts Diagram

Rear-Engine Riding Mower

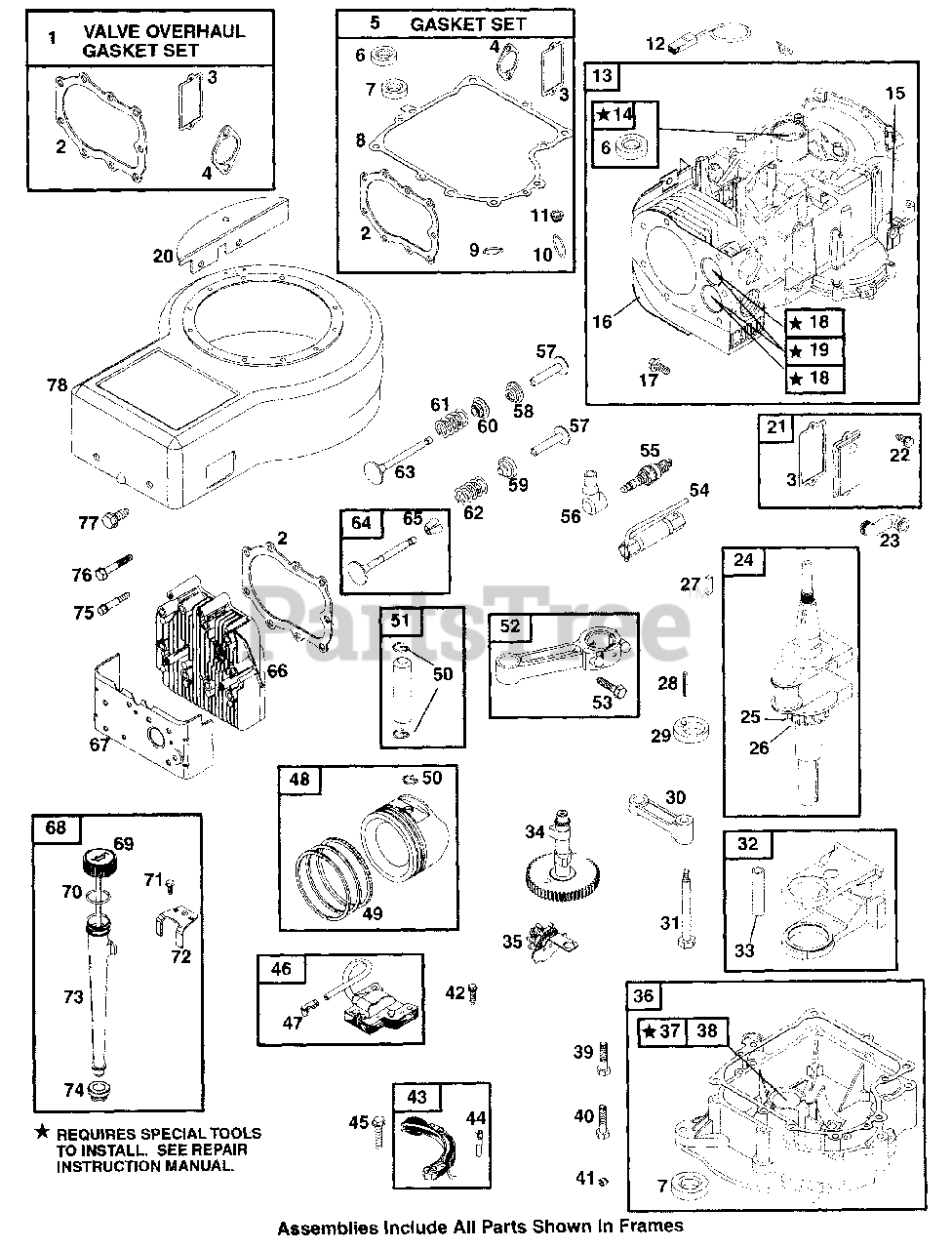

Engine Assembly (Model 1027) Parts Diagram

  • Title

1

Cub Cadet BS-498536

Valve Overhaul Gasket Set

$26.99

$

In Stock, only 1 left!

0

2

Cub Cadet BS-272163

Cylinder Head Gasket
(Superseded to BS-272163S)

$7.99

$

In Stock, Qty 12

0

3

Cub Cadet BS-27803

Breather Gasket
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-272554

Intake Gasket
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-299577

Gasket Set-Engine Overhaul

$35.99

$

In Stock, only 4 left!

0

6

Cub Cadet BS-391086

Oil Seal (Magneto Side)
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet BS-391086

Oil Seal (PTO Side)
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-271701

Crankcase Gasket (.015" Thick)
(Superseded to BS-692221)

$8.99

$

In Stock, Qty 11

0

Cub Cadet BS-27876

Crankcase Gasket (.005" Thick)

$8.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-27877

Crankcase Gasket (.009" Thick)

$10.99

$

In Stock, only 3 left!

0

9

Cub Cadet BS-270920

O-Ring Seal (Dipstick)
(Superseded to BS-691870)

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet BS-281106

O-Ring Seal (Air Cleaner Base)
(Superseded to BS-691917)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-281370

Dipstick Tube Seal
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-690799

Wire-Stop

$11.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-495623

Cylinder Assembly

$

$

Currently unavailable

14

Cub Cadet BS-495657

Bushing/Seal Kit (Magneto Side)

$

$

Not available

15

Cub Cadet BS-491986

Bushing-Gov. Crank

$

$

Not available

16

Cub Cadet BS-496797

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-94930

Screw (Cylinder Shield)

$

$

Not available

18

Cub Cadet BS-211661

Seat-Valve

$

$

Not available

19

Cub Cadet BS-261961

Bushing-Guide (Exhaust Valve)

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-231218

Bushing-Guide (Intake Valve)

$14.99

$

In Stock, only 2 left!

0

20

Cub Cadet BS-690411

Flywheel Guard

$

$

Not available

21

Cub Cadet BS-495735

Breather Assembly

$63.99

$

In Stock, only 1 left!

0

22

Cub Cadet BS-94621

Screw (Breather Assembly)
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

23

Cub Cadet BS-280005

Breather Tube
(Superseded to BS-692293)

$10.99

$

In Stock, only 1 left!

0

24

Cub Cadet BS-694054

Crankshaft

Note: (After Code Date 98111500)

$199.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-691288

Gear-Timing

$21.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-94388

Key-Timing
(Superseded to BS-690979)

$3.49

$

In Stock, only 3 left!

0

27

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

28

Cub Cadet BS-94160

Pin-Retainer

$

$

Not available

29

Cub Cadet BS-691268

Eccentric

$11.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-213998

Link-Counterweight

$

$

Not available

31

Cub Cadet BS-690346

Screw (Counterweight)

$7.49

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-690619

Counterweight

$49.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-691239

Pin-Counterweight

$8.99

$

In Stock, only 1 left!

0

34

Cub Cadet BS-211689

Camshaft

$

$

Not available

35

Cub Cadet BS-491397

Governor / Oil Slinger

$

$

Not available

36

Cub Cadet BS-392548

Engine Sump

$110.99

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-295963

Bushing / Seal Kit (PTO Side)

$

$

Not available

38

Cub Cadet BS-391086

Oil Seal (PTO Side)
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

39

Cub Cadet BS-93585

Screw (Engine Sump)

$

$

Not available

40

Cub Cadet BS-691103

Screw (Eng Sump)

Note: (Used in Position 1)

$3.99

$

In Stock, Qty 7

0

41

Cub Cadet BS-94880

Oil Drain Plug
(Superseded to BS-691680)

$5.99

$

In Stock, only 4 left!

0

42

Cub Cadet BS-94731

Screw (Magneto Armature)

$

$

Not available

43

Cub Cadet BS-690798

Alternator

$5.49

$

In Stock, only 2 left!

0

44

Cub Cadet BS-393814

Wire-Alternator

$18.99

$

In Stock, only 2 left!

0

45

Cub Cadet BS-93621

Screw (Alternator)
(Superseded to BS-691183)

$

$

Not available

46

Cub Cadet BS-398811

Armature-Magneto

$63.99

$

In Stock, Qty 11

0

47

Cub Cadet BS-493880

Terminal-Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

48

Cub Cadet BS-499907

Piston Assembly (Standard)

$78.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499908

Piston Assembly (.010" O.S.)

$67.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499909

Piston Assembly (.020" O.S.)

$149.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499910

Piston Assembly (.030" O.S.)

$

$

Not available

49

Cub Cadet BS-499921

Ring Set (Standard)

$47.99

$

In Stock, only 1 left!

0

Cub Cadet BS-299743

Ring Set (Chrome, Standard)
(Superseded to BS-690014)

$51.99

$

In Stock, only 4 left!

0

Cub Cadet BS-690018

Ring Set (.010" O.S.)

$22.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-690019

Ring Set (.020" O.S.)

$59.99

$

In Stock, only 1 left!

0

Cub Cadet BS-690020

Ring Set (.030" O.S.)

$

$

Not available

50

Cub Cadet BS-691073

Piston Pin Lock

$4.99

$

Usually ships in 2-12 days

0

51

Cub Cadet BS-295840

Piston Pin (Standard)

$

$

Not available

Cub Cadet BS-295841

Piston Pin (.005" O.S.)

$6.99

$

Usually ships in 2-12 days

0

52

Cub Cadet BS-390402

Connecting Rod

$84.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-390773

Connecting Rod (.020" Under)

$103.99

$

Usually ships in 2-12 days

0

53

Cub Cadet BS-690352

Screw (Connecting Rod)

$6.99

$

In Stock, only 4 left!

0

54

Cub Cadet BS-89838

Wrench -Sparkplug
(Superseded to BS-89838S)

$6.49

$

In Stock, Qty 5

0

55

Cub Cadet BS-802592

Sparkplug

$

$

Currently unavailable

56

Cub Cadet BS-66538

Boot-Sparkplug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 17

0

57

Cub Cadet BS-260933

Valve Tappet

$

$

Not available

58

Cub Cadet BS-221596

Valve Retainer
(Superseded to BS-690656)

$

$

Not available

59

Cub Cadet BS-292260

Valve Retainer
(Superseded to BS-691939)

$27.99

$

In Stock, only 1 left!

0

60

Cub Cadet BS-497656

Seal-Valve

$

$

Not available

61

Cub Cadet BS-26828

Valve Spring (Exhaust)

$

$

Not available

62

Cub Cadet BS-65906

Valve Spring (Intake)

$

$

Not available

63

Cub Cadet BS-261055

Intake Valve
(Superseded to BS-261055S)

$32.99

$

Usually ships in 2-12 days

0

64

Cub Cadet BS-390420

Exhaust Valve

$

$

Not available

65

Cub Cadet BS-494553

Valve Keeper

$7.99

$

In Stock, only 1 left!

0

66

Cub Cadet BS-214015

Cylinder Head
(Superseded to BS-691715)

$95.99

$

Usually ships in 2-12 days

0

67

Cub Cadet BS-691201

Cover-Cylinder Head

$7.99

$

Usually ships in 2-12 days

0

68

Cub Cadet BS-392066

Dipstick/Tube Assembly

$34.99

$

Usually ships in 2-12 days

0

69

Cub Cadet BS-691387

Dipstick

$16.99

$

Usually ships in 2-12 days

0

70

Cub Cadet BS-270920

O-Ring Seal (Dipstick)
(Superseded to BS-691870)

$4.49

$

In Stock, only 2 left!

0

71

Cub Cadet BS-94874

Screw (Oil Fill Bracket)
(Superseded to BS-690664)

$5.49

$

In Stock, Qty 5

0

72

Cub Cadet BS-224872

Bracket-Oil Fill
(Superseded to BS-690593)

$11.99

$

In Stock, only 4 left!

0

73

Cub Cadet BS-280133

Dipstick Tube

$

$

Not available

74

Cub Cadet BS-281370

Dipstick Tube Seal
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

75

Cub Cadet BS-94565

Screw (Cylinder Head Cover)
(Superseded to BS-592244)

$3.49

$

In Stock, Qty 13

0

76

Cub Cadet BS-94622

Screw (3" Long) (Cylinder Head)
(Superseded to BS-690904)

$11.99

$

In Stock, Qty 8

0

77

Cub Cadet BS-94786

Screw (Blower Housing)
(Superseded to BS-692198)

$5.99

$

In Stock, only 3 left!

0

78

Cub Cadet BS-496439

Housing-Blower

$63.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-397816

Short Block

$

$

Currently unavailable
