1027 (13A-328-101) - Cub Cadet Rear-Engine Riding Mower (2001) Electric Starter Parts Diagram

Rear-Engine Riding Mower

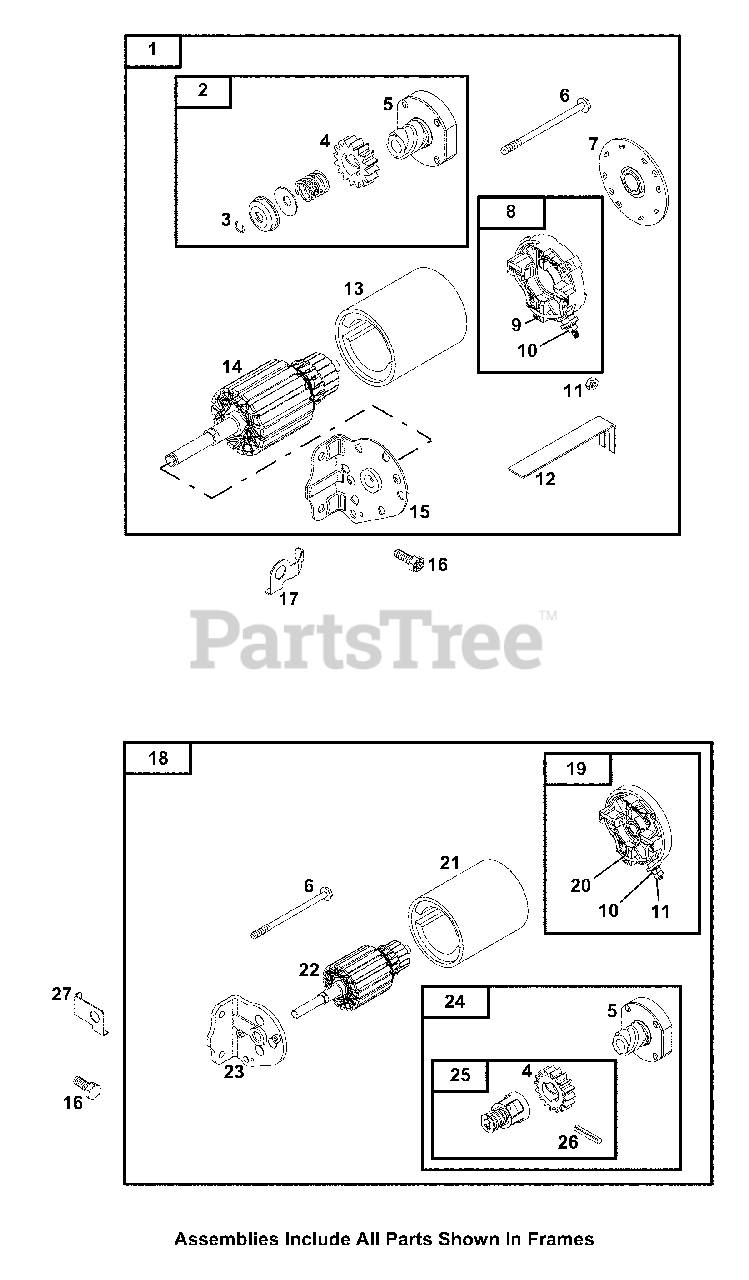

Electric Starter Parts Diagram

  • Title

1

Cub Cadet BS-693054

Motor-Starter
(Superseded to BS-497595)

$115.99

$

In Stock, Qty 20+

0

2

Cub Cadet BS-497606

Drive-Starter
(Superseded to BS-696541)

$

$

Not available

3

Cub Cadet BS-263080

Ring-Retaining
(Superseded to BS-691265)

$5.99

$

In Stock, only 4 left!

0

4

Cub Cadet BS-693059

Gear-Pinion
(Superseded to BS-695708)

$6.49

$

In Stock, Qty 12

0

5

Cub Cadet BS-398003

Clutch-Drive
(Superseded to BS-692024)

$23.99

$

In Stock, only 2 left!

0

6

Cub Cadet BS-690323

Bolt (Starter Motor)

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet BS-497607

Cap-End

$

$

Not available

8

Cub Cadet BS-497605

Retainer-Brush
(Superseded to BS-691293)

$31.99

$

In Stock, Qty 5

0

9

Cub Cadet BS-497608

Brush Set

$29.99

$

In Stock, only 2 left!

0

10

Cub Cadet BS-693167

Nut (Brush Retainer)

$4.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-92278

Nut (Brush Retainer)
(Superseded to 912-0121)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-806000

Starter Strap
(Superseded to BS-691532)

$6.49

$

In Stock, only 1 left!

0

13

Cub Cadet BS-691427

Housing-Starter

$

$

Not available

14

Cub Cadet BS-497603

Armature-Starter

$

$

Not available

15

Cub Cadet BS-691429

Cap-Drive
(Superseded to BS-691283)

$92.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-690372

Screw (Drive Cap)
(Superseded to BS-791680)

$4.49

$

In Stock, Qty 8

0

17

Cub Cadet BS-225170

Clip-Wire

$

$

Not available

18

For Replacement Starter, See Ref #1

$

$

Not available

19

Cub Cadet BS-395537

Cap-End

$59.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-395538

Brush Set

$

$

Not available

21

Cub Cadet BS-398159

Housing-Starter

$84.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-390837

Armature-Starter

$159.99

$

In Stock, only 1 left!

0

23

Cub Cadet BS-394856

Cap Drive

$

$

Not available

24

Cub Cadet BS-495878

Drive-Starter
(Superseded to BS-696540)

$31.99

$

In Stock, Qty 5

0

25

Cub Cadet BS-495877

Kit-Gear
(Superseded to BS-696540)

$31.99

$

In Stock, Qty 5

0

26

Cub Cadet BS-94288

Pin-Roll
(Superseded to BS-691641)

$5.49

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-224723

Clip-Wire

$5.99

$

In Stock, only 1 left!

0
