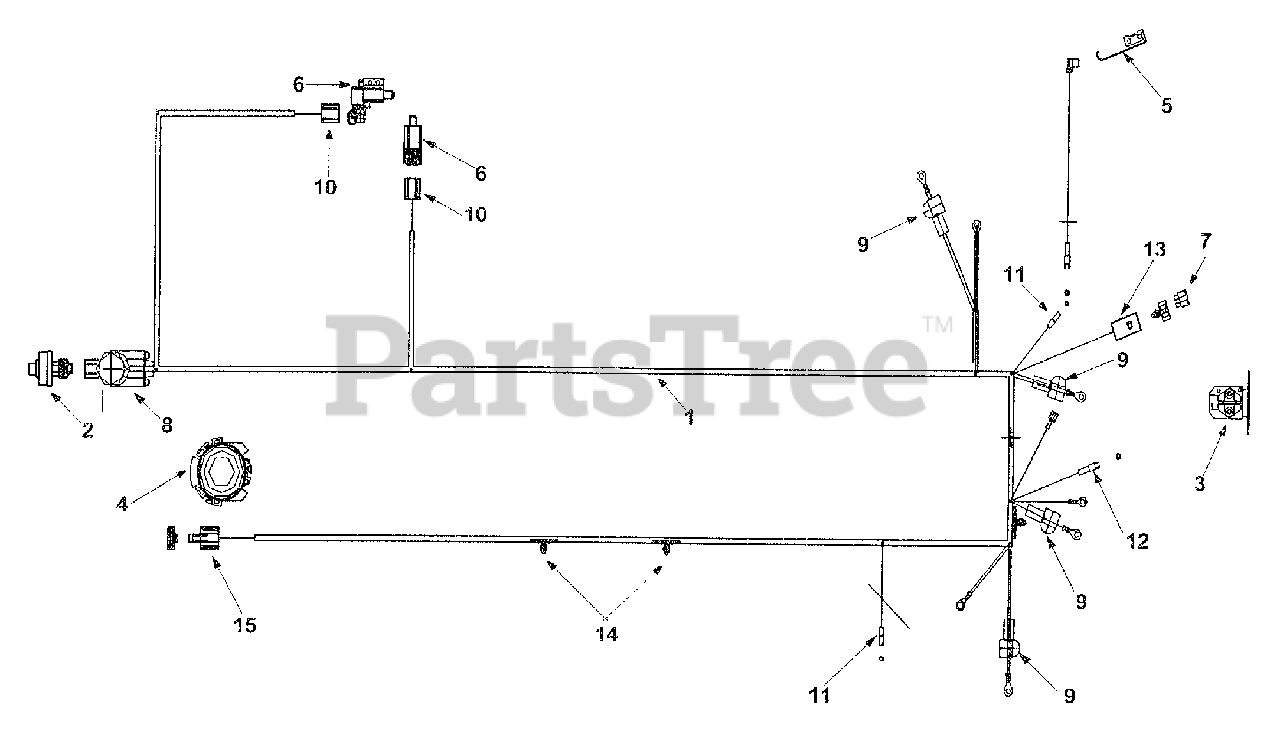

1027 (13A-328-101) - Cub Cadet Rear-Engine Riding Mower (2001) Electrical Parts Diagram

Rear-Engine Riding Mower

Electrical Parts Diagram

  • Title

1

Cub Cadet 629-0945

Harness Assembly w/o relays
(Superseded to 929-0945)

$

$

Not available

2

Cub Cadet 725-0267

Ignition Switch: 5 Pin
(Superseded to 925-0267B)

$37.99

$

In Stock, Qty 20+

0

Cub Cadet 725-1345

Ignition Key

Note: (Not shown)

$

$

Currently unavailable

3

Cub Cadet 725-1426

Solenoid: 12 V. 100 amp.
(Superseded to 925-1426A)

$28.99

$

In Stock, Qty 20+

0

4

Cub Cadet 725-1462

Seat Switch

$83.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 725-1643

Spring Switch

$10.99

$

In Stock, only 2 left!

0

6

Cub Cadet 725-1657A

Interlock Switch
(Superseded to 925-1657A)

$25.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 725-1381

Fuse: 20 amp.
(Superseded to 925-1381)

$6.99

$

In Stock, Qty 10

0

8

Cub Cadet 725-1726

Battery Cover

$

$

Not available

9

Cub Cadet 725-3237

Battery Cover: Red

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 729-0125

Connecter

$12.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 729-0139

Connecter

$

$

Not available

12

Cub Cadet 729-0171

Connecter

$

$

Not available

13

Cub Cadet 729-0357

Fuse Holder w/Clip

$

$

Not available

14

Cub Cadet 729-0359

Harness Clip

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 729-1108

Connecter

$

$

Not available
