1027 (13A-328-101) - Cub Cadet Rear-Engine Riding Mower (2002) Carburetor, Air Filter, Fuel Filter Parts Diagram

Rear-Engine Riding Mower

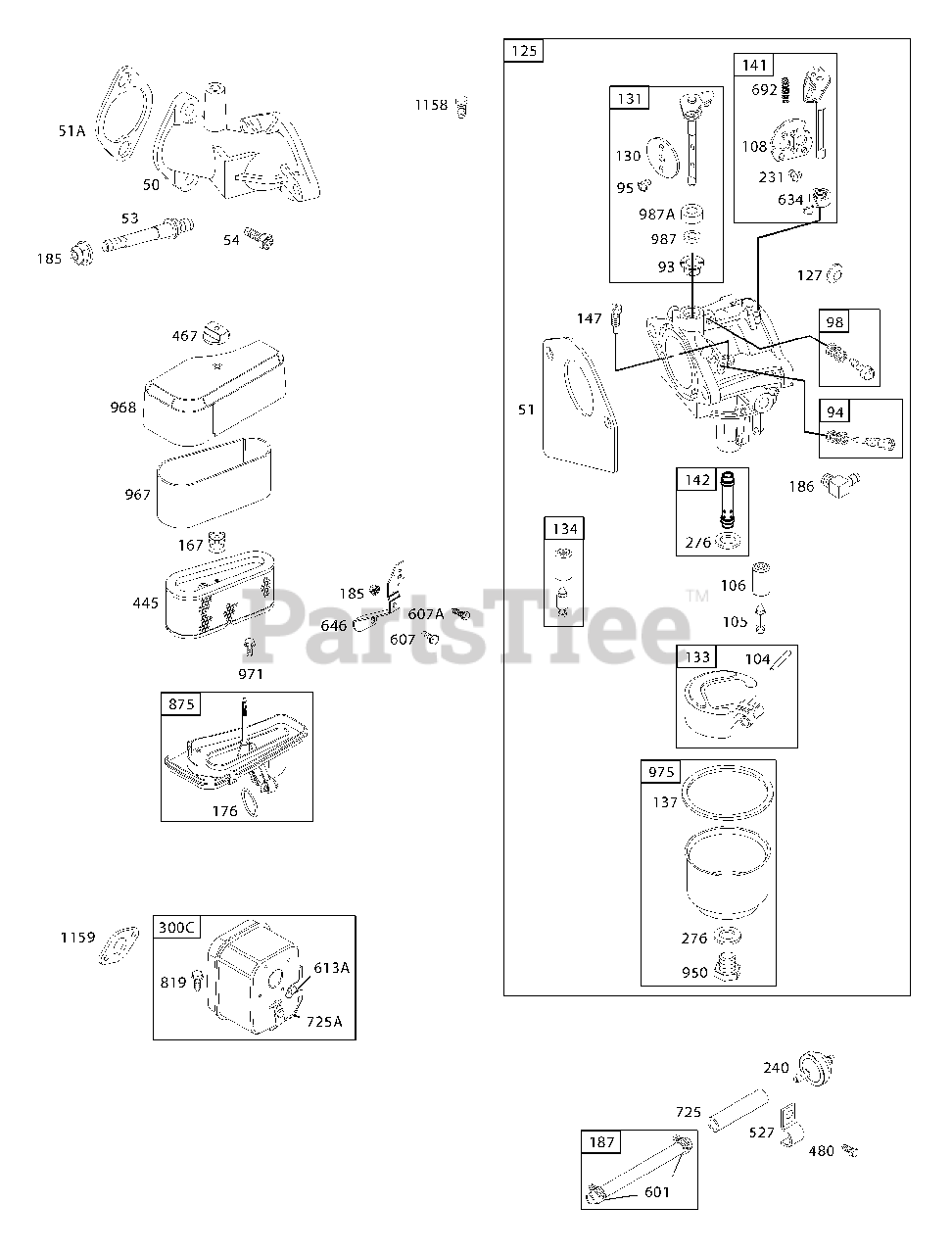

Carburetor, Air Filter, Fuel Filter Parts Diagram

  • Title

50

Cub Cadet BS-691711

Manifold-Intake

$64.99

$

In Stock, only 1 left!

0

51

UNKNOWN

$

$

Not available

51A

Cub Cadet BS-272554

Gasket-Intake
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 20+

0

53

Cub Cadet BS-690227

Stud (Carburetor)

$7.99

$

In Stock, Qty 12

0

54

Cub Cadet BS-690953

Screw (Intake Manifold)

$5.99

$

In Stock, Qty 19

0

93

Cub Cadet BS-690602

Bushing-Throttle Shaft

$9.49

$

In Stock, only 1 left!

0

94

UNKNOWN

$

$

Not available

95

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

98

Cub Cadet BS-495800

Kit-Idle Speed

$10.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-690525

Pin-Float Hinge

$4.99

$

Usually ships in 2-12 days

0

105

Cub Cadet BS-231855

Valve-Float Needle
(Superseded to BS-231855S)

$6.99

$

In Stock, Qty 20+

0

106

Cub Cadet BS-690577

Seat-Inlet

$7.99

$

In Stock, Qty 16

0

108

Cub Cadet BS-690464

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

125

Cub Cadet BS-692684

Carburetor

$235.99

$

In Stock, only 1 left!

0

127

Cub Cadet BS-694530

Plug-Welch

$

$

Currently unavailable

130

Cub Cadet BS-690468

Valve-Throttle

$9.49

$

In Stock, only 1 left!

0

131

Cub Cadet BS-494885

Kit-Throttle Shaft

$

$

Not available

133

Cub Cadet BS-494381

Float-Carburetor

$13.99

$

In Stock, Qty 11

0

134

UNKNOWN

$

$

Not available

137

Cub Cadet BS-281165

Gasket-Float Bowl
(Superseded to BS-281165S)

$4.99

$

In Stock, Qty 20+

0

141

Cub Cadet BS-495097

Kit-Choke Shaft
(Superseded to BS-790905)

$45.99

$

Usually ships in 2-12 days

0

142

Cub Cadet BS-690121

Nozzle-Carburetor

$30.99

$

Usually ships in 2-12 days

0

147

Cub Cadet BS-497472

Jet-Pilot

$22.99

$

Usually ships in 2-12 days

0

167

Cub Cadet BS-692297

Seal-Air Cleaner Nut
(Superseded to BS-691668)

$5.49

$

In Stock, only 4 left!

0

176

Cub Cadet BS-691917

Seal-O Ring (Air Cleaner Base)

$4.49

$

In Stock, Qty 20+

0

185

Cub Cadet BS-690958

Nut (Air Cleaner Base)

$3.49

$

In Stock, Qty 7

0

186

Cub Cadet BS-692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

187

Cub Cadet BS-296004

Line-Fuel
(Superseded to BS-791745)

$10.99

$

In Stock, Qty 7

0

231

Cub Cadet BS-691636

Screw (Choke Valve)

$3.99

$

In Stock, only 2 left!

0

240

Cub Cadet BS-298090

Filter-Fuel
(Superseded to BS-298090S)

$5.49

$

In Stock, Qty 20+

0

276

Cub Cadet BS-692255

Washer-Sealing

$5.49

$

In Stock, Qty 16

0

300C

Cub Cadet BS-494222

Muffler

$68.99

$

Usually ships in 2-12 days

0

445

Cub Cadet BS-691667

Filter-Air Cleaner Cartridge

$26.99

$

In Stock, Qty 15

0

467

Cub Cadet BS-691668

Knob-Air Cleaner

$5.49

$

In Stock, only 4 left!

0

480

Cub Cadet BS-690664

Screw (Tube Clamp)

$5.49

$

In Stock, Qty 5

0

527

Cub Cadet BS-690394

Clamp-Tube

$4.99

$

Usually ships in 2-12 days

0

601

Cub Cadet BS-95162

Clamp-Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

607

Cub Cadet BS-690703

Screw (Air Cleaner Brace)

$3.99

$

Usually ships in 2-12 days

0

607A

Cub Cadet BS-691693

Screw (Air Cleaner Brace)

$3.99

$

In Stock, only 1 left!

0

613A

Cub Cadet BS-691351

Screw (Muffler)

$8.49

$

In Stock, only 4 left!

0

634

Cub Cadet BS-690801

Spring/Seal Assembly

$8.49

$

In Stock, only 1 left!

0

646

Cub Cadet BS-690465

Brace-Air Cleaner

$

$

Currently unavailable

692

Cub Cadet BS-690572

Spring-Detent
(Superseded to BS-590931)

$5.49

$

In Stock, only 1 left!

0

725

Cub Cadet BS-690403

Shield-Heat (Tubular)

$6.99

$

Usually ships in 2-12 days

0

725A

Cub Cadet BS-690433

Shield-Heat (Super Lo Tone)

$21.99

$

Usually ships in 2-12 days

0

819

Cub Cadet BS-690810

Screw (Muffler Bracket)

$

$

Currently unavailable

Cub Cadet BS-231218

Bushing-Valve Guide (In.)

$14.99

$

In Stock, only 2 left!

0

875

Cub Cadet BS-693670

Base-Air Cleaner

$28.99

$

Usually ships in 2-12 days

0

950

Cub Cadet BS-691657

Screw-Float Bowl

$7.99

$

Usually ships in 2-12 days

0

967

Cub Cadet BS-272477

Filter-Pre Cleaner
(Superseded to BS-272477S)

$4.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-691324

Cover-Air Cleaner

$55.99

$

In Stock, only 1 left!

0

971

Cub Cadet BS-692126

Screw (Air Cleaner Base)

$

$

Not available

975

Cub Cadet BS-495933

Bowl-Float

$10.99

$

Usually ships in 2-12 days

0

987

Cub Cadet BS-691326

Seal-Throttle Shaft

$5.49

$

In Stock, only 1 left!

0

987A

UNKNOWN

$

$

Not available

1158

Cub Cadet BS-695659

Screw (Carburetor Plug)

$

$

Currently unavailable

1159

UNKNOWN

$

$

Not available

Cub Cadet BS-397816

Short Block

Note: N/S

$

$

Currently unavailable

Cub Cadet BS-198707-0141

Complete Engine

Note: N/S

$715.99

$

Usually ships in 2-12 days

0
