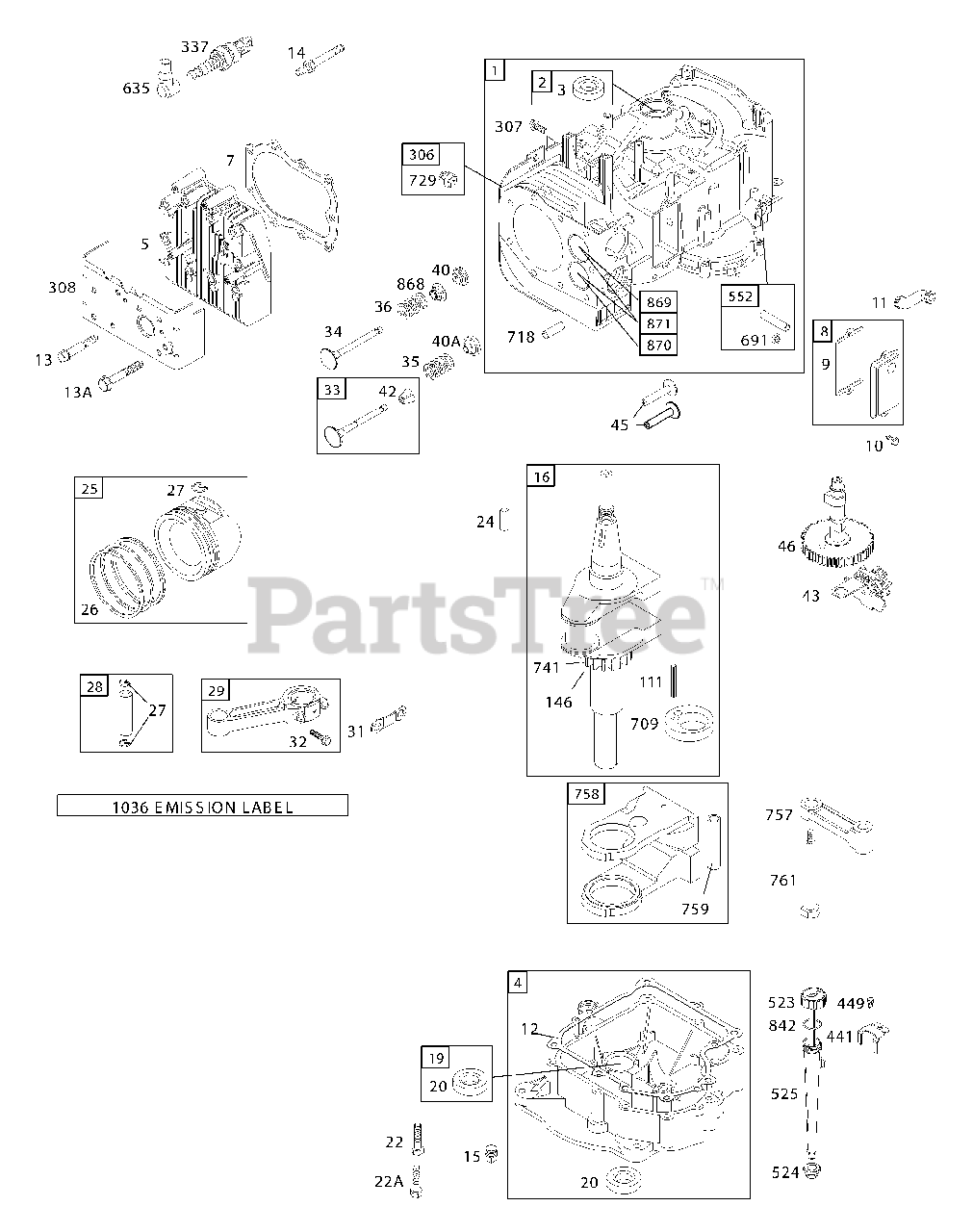

1027 (13A-328-101) - Cub Cadet Rear-Engine Riding Mower (2002) Cylinder Group Parts Diagram

Rear-Engine Riding Mower

Cylinder Group Parts Diagram

  • Title

1

Cub Cadet BS-495623

Cylinder Assembly

$

$

Currently unavailable

2

Cub Cadet BS-495657

Kit-Bushing/Seal (Magneto Side)

$

$

Not available

3

Cub Cadet BS-391086

Seal-Oil (Magneto Side)
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-392548

Sump-Engine

$110.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-691715

Head-Cylinder

$95.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-272163

Gasket-Cylinder Head
(Superseded to BS-272163S)

$7.99

$

In Stock, Qty 13

0

8

Cub Cadet BS-495735

Breather Assembly

$63.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-697109

Gasket-Breather

$7.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-697157

Screw (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-692293

Tube-Breather

$10.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-692221

Gasket-Crankcase (.015")

$8.99

$

In Stock, Qty 11

0

13

Cub Cadet BS-691651

Screw (Cylinder Head)(2 5/8")
(Superseded to BS-592244)

$3.49

$

In Stock, Qty 13

0

13A

Cub Cadet BS-690904

Screw (Cylinder Head)(2 15/16")

$11.99

$

In Stock, Qty 8

0

14

Cub Cadet BS-691690

Stud (Cylinder Head)

$

$

Not available

15

Cub Cadet BS-690946

Plug-Oil Drain (Square Socket)

$5.99

$

In Stock, Qty 17

0

16

Cub Cadet BS-694054

Crankshaft

$199.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-295963

Kit-Bushing/Seal (PTO Side)

$

$

Not available

20

Cub Cadet BS-391086

Seal-Oil (PTO Side)
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-692125

Screw (Crankcase Cover/Sump)

$4.99

$

In Stock, only 2 left!

0

22A

Cub Cadet BS-691103

Screw (Crankcase Cover/Sump)

$3.99

$

In Stock, Qty 7

0

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-499907

Piston Assembly

Note: (Standard)

$78.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499908

Piston Assembly (.010")

$67.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499909

Piston Assembly (.020")

$149.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499910

Piston Assembly (.030")

$

$

Not available

26

Cub Cadet BS-499921

Ring Set

Note: (Standard)

$47.99

$

In Stock, only 1 left!

0

Cub Cadet BS-299743

Ring Set
(Superseded to BS-690014)

Note: (Standard, Chrome)

$51.99

$

In Stock, only 4 left!

0

Cub Cadet BS-690018

Ring Set (.010")

$22.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-690019

Ring Set (.020")

$59.99

$

In Stock, only 1 left!

0

Cub Cadet BS-690020

Ring Set (.030")

$

$

Not available

27

Cub Cadet BS-690975

Lock-Piston Pin

$3.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-499302

Pin-Piston

$15.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-390402

Rod-Connecting

$84.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-390773

Rod-Connecting (.020")

$103.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-222114

Loc K-Rod Screw

$3.49

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-690352

Screw (Connecting Rod)

$6.99

$

In Stock, only 4 left!

0

33

Cub Cadet BS-691794

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-261055

Valve-Intake
(Superseded to BS-261055S)

$32.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-691605

Spring-Valve (Intake)

$

$

Currently unavailable

36

Cub Cadet BS-691597

Spring-Valve (Exhaust)

$10.99

$

In Stock, only 1 left!

0

40

Cub Cadet BS-690656

Retainer-Valve (Intake)

$

$

Not available

40A

Cub Cadet BS-691939

Retainer-Valve (Exhaust)

$27.99

$

In Stock, only 1 left!

0

42

Cub Cadet BS-494553

Keeper-Valve (Exhaust)

$7.99

$

In Stock, only 1 left!

0

43

Cub Cadet BS-691980

Slinger-Governor/Oil

$

$

Currently unavailable

45

Cub Cadet BS-691793

Tappet-Valve

$6.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-691167

Camshaft

$36.99

$

Usually ships in 2-12 days

0

111

Cub Cadet BS-691679

Pin-Retainer

$

$

Currently unavailable

146

Cub Cadet BS-690979

Key-Timing

$3.49

$

In Stock, only 3 left!

0

306

Cub Cadet BS-496797

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Cub Cadet BS-691003

Screw (Cylinder Shield)

$3.49

$

In Stock, only 2 left!

0

308

Cub Cadet BS-691201

Cover-Cylinder Head

$7.99

$

Usually ships in 2-12 days

0

337

Cub Cadet 759-3336

Plug-Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

441

Cub Cadet BS-690593

Bracket-Oil Fill

$11.99

$

In Stock, only 4 left!

0

449

Cub Cadet BS-690664

Screw (Oil Fill Bracket)

$5.49

$

In Stock, Qty 5

0

523

Cub Cadet BS-691387

Dipstick

$16.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-281370

Seal-Dipstick Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-692963

Tube-Dipstick

$28.99

$

Usually ships in 2-12 days

0

552

Cub Cadet BS-491986

Bushing-Governor Crank

$

$

Not available

635

Cub Cadet BS-66538

Boot-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 17

0

691

Cub Cadet BS-491323

Seal-Governor Shaft
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 11

0

709

Cub Cadet BS-691268

Eccentric

$11.99

$

Usually ships in 2-12 days

0

718

Cub Cadet BS-690959

Pin-Locating

$6.99

$

Usually ships in 2-12 days

0

729

Cub Cadet BS-690603

Clip-Wire

$

$

Not available

741

Cub Cadet BS-691288

Gear-Timing

$21.99

$

Usually ships in 2-12 days

0

757

Cub Cadet BS-691714

Link-Counterweight

$26.99

$

Usually ships in 2-12 days

0

758

Cub Cadet BS-690619

Counterweight

$49.99

$

Usually ships in 2-12 days

0

759

Cub Cadet BS-691239

Pin-Counterweight

$8.99

$

In Stock, only 1 left!

0

761

Cub Cadet BS-690346

Screw (Counterweight)

$7.49

$

Usually ships in 2-12 days

0

842

Cub Cadet BS-691870

Seal-O Ring (Dipstick Tube)

$4.49

$

In Stock, only 2 left!

0

868

Cub Cadet BS-692036

Seal-Valve

$

$

Not available

869

Cub Cadet BS-691703

Seat-Valve (Intake)

$

$

Not available

870

Cub Cadet BS-691844

Seat-Valve (Exhaust)

$18.99

$

In Stock, only 1 left!

0

871

Cub Cadet BS-261961

Bushing-Valve Guide (Ex.)

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-231218

Bushing-Valve Guide (In.)

$14.99

$

In Stock, only 2 left!

0

1036

Cub Cadet BS-695697

Label-Emmission

$

$

Currently unavailable
