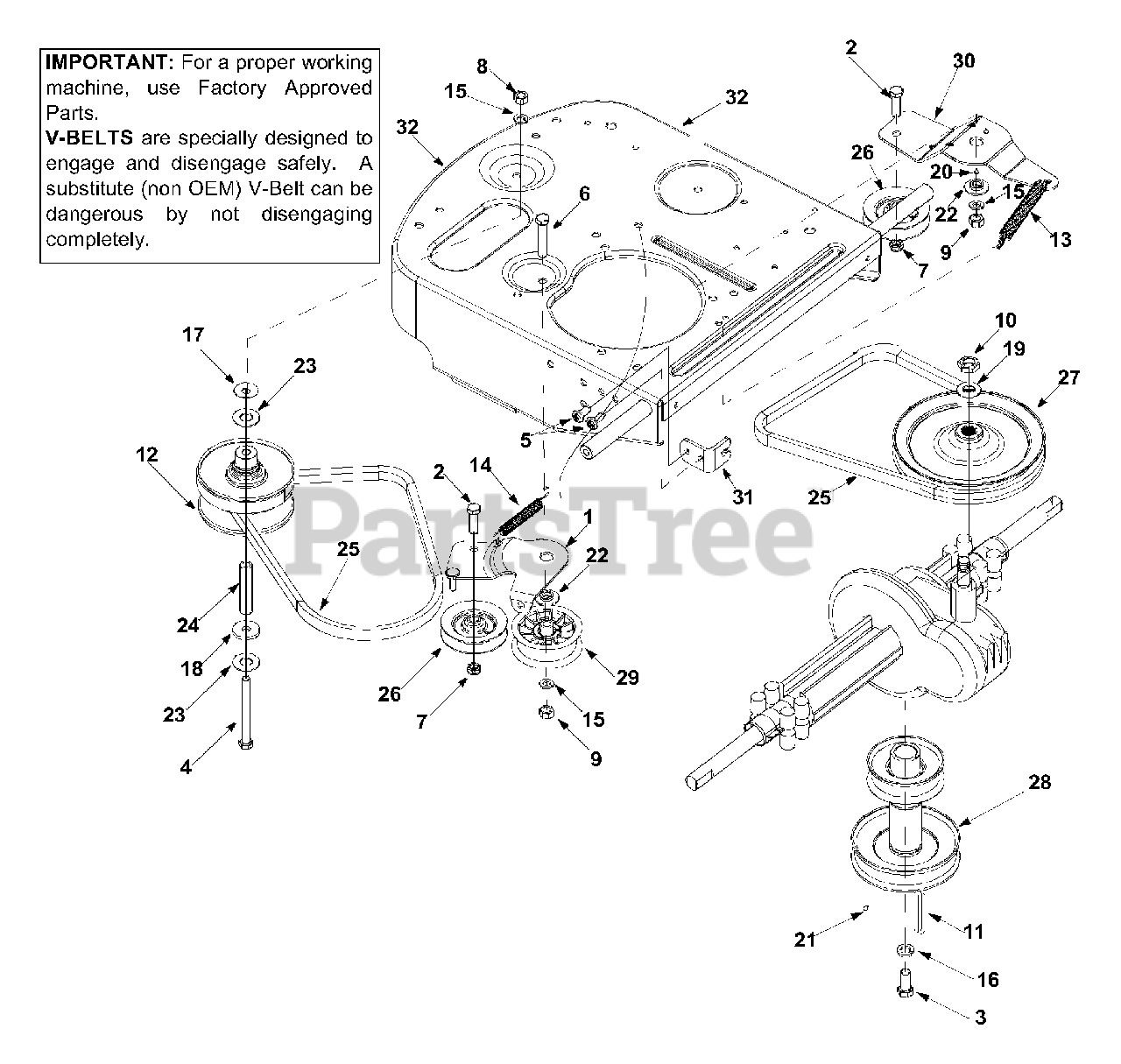

1027 (13A-328-101) - Cub Cadet Rear-Engine Riding Mower (2002) Drive Parts Diagram

Rear-Engine Riding Mower

Drive Parts Diagram

  • Title

1

Cub Cadet 683-0147A

Idler Bracket Assembly
(Superseded to 683-0147C)

$

$

Not available

2

Cub Cadet 710-0191

Hex Screw (Special)

$4.49

$

In Stock, Qty 8

0

3

Cub Cadet 710-0314

Hex Screw 7/16-20 x 1.0"

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet 710-0902

Hex Screw 3/8-24 x 3.75"

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-1611B

TT Screw

$6.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-3096

Hex Screw 3/8-16 x 2.0"

$7.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0116

Jam Lock Nut

$4.49

$

In Stock, Qty 7

0

8

Cub Cadet 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3017

Hex Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3035

Jam Nut 9/16-18

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 714-0114

Sq. Key
(Superseded to 914-0114)

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet 717-0884

Variable Speed Pulley Assembly

$203.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-0814

Extension Spring

$7.49

$

In Stock, Qty 20+

0

14

Cub Cadet 732-0815A

Extension Spring

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0169

Lock Washer

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0171

Lock Washer

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0219

Bell Washer
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

18

Cub Cadet 736-0247

Flat Washer

$8.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0427

Beleville Washer
(Superseded to 936-0427)

$

$

Not available

20

Cub Cadet 737-0167

Grease

$

$

Currently unavailable

21

Cub Cadet 737-0288

Grease

$

$

Currently unavailable

22

Cub Cadet 738-0968

Shoulder Spacer
(Superseded to 938-0968)

$5.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 741-0405

Thrust Bearing
(Superseded to 941-0405)

$

$

Not available

24

Cub Cadet 750-0705

Slv. Spacer

$

$

Not available

25

Cub Cadet 754-0453

V-Belt
(Superseded to 954-0453)

$34.99

$

In Stock, Qty 15

0

26

Cub Cadet 756-0116

Idler Pulley
(Superseded to 756-04209)

$20.99

$

In Stock, Qty 20+

0

27

Cub Cadet 756-0650

Transmission Pulley

$

$

Not available

28

Cub Cadet 756-0658

Engine Pulley
(Superseded to 956-1189A)

$133.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 756-0981A

Flat Idler Pulley
(Superseded to 756-04224)

$24.99

$

In Stock, Qty 20+

0

30

Cub Cadet 783-0528

Idler Bracket: Variable Speed

$

$

Not available

31

Cub Cadet 783-0529

Cable Bracket

$

$

Not available

32

Cub Cadet 683-0149B

Frame Assembly

Variations

Cub Cadet 683-0149B-0498

FRAME ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 683-0149B-0648

FRAME ASSEMBLY (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 683-0149B-0650

FRAME ASSEMBLY (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 683-0149B-0665

FRAME ASSEMBLY (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 683-0149B-0716

FRAME ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 683-0149B-0721

FRAME ASSEMBLY - SEARS RED (0721)

$

$

Not available

Cub Cadet 683-0149B-4044

FRAME ASSEMBLY (CRAFTSMAN RED) - CRAFTSMAN RED (4044)

$

$

Not available

$

$
