1027 (13A-328-101) - Cub Cadet Rear-Engine Riding Mower (2002) Flywheel, Blower Hsg Parts Diagram

Rear-Engine Riding Mower

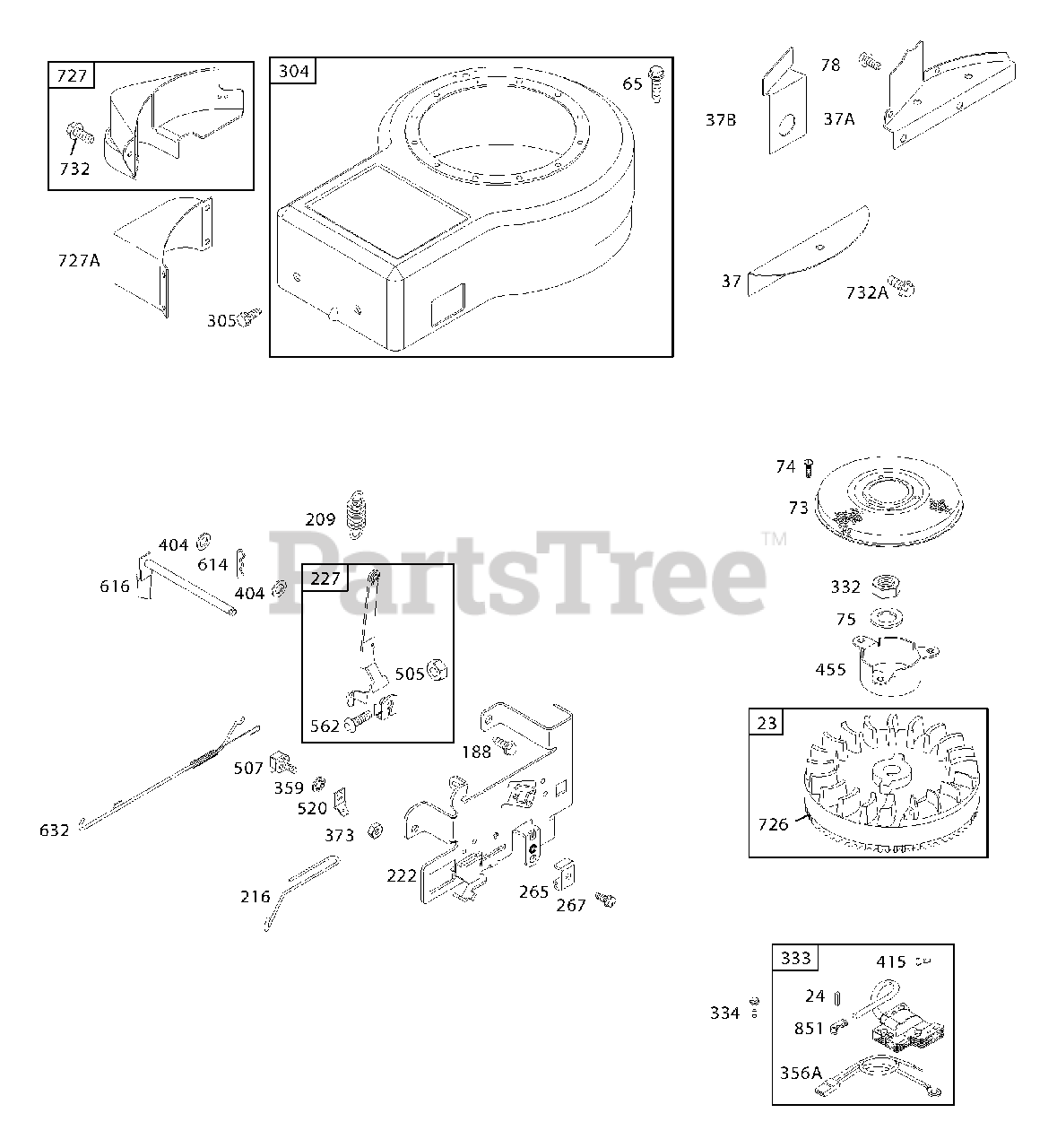

Flywheel, Blower Hsg Parts Diagram

  • Title

23

Cub Cadet BS-691354

Flywheel

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

Cub Cadet BS-499908

Piston Assembly (.010")

$

$

Not available

Cub Cadet BS-499909

Piston Assembly (.020")

$

$

Not available

Cub Cadet BS-499910

Piston Assembly (.030")

$

$

Not available

37

Cub Cadet BS-690411

Guard-Flywheel

$

$

Not available

37A

UNKNOWN

$

$

Not available

37B

UNKNOWN

$

$

Not available

65

UNKNOWN

$

$

Not available

73

Cub Cadet BS-691748

Screen-Rotating

$255.99

$

In Stock, only 1 left!

0

74

Cub Cadet BS-691655

Screw (Rotating Screen)

$4.49

$

Usually ships in 2-12 days

0

75

Cub Cadet BS-690582

Washer (Flywheel)

$

$

Not available

78

Cub Cadet BS-690364

Screw (Flywheel Guard)
(Superseded to BS-94811)

$

$

Not available

188

Cub Cadet BS-691693

Screw (Control Bracket)

$3.99

$

In Stock, Qty 20+

0

209

Cub Cadet BS-690480

Spring-Governor
(Superseded to BS-792602)

$3.99

$

In Stock, Qty 8

0

216

Cub Cadet BS-690573

Link-Choke

$9.99

$

Usually ships in 2-12 days

0

222

Cub Cadet BS-694042

Bracket-Control
(Superseded to BS-597209)

$40.99

$

In Stock, Qty 20+

0

227

Cub Cadet BS-691374

Lever-Governor Control

$28.99

$

In Stock, only 2 left!

0

265

Cub Cadet BS-691024

Clamp-Casing

$3.99

$

In Stock, only 1 left!

0

267

Cub Cadet BS-690804

Screw (Casing Clamp)

$

$

Not available

304

Cub Cadet BS-496439

Housing-Blower

$

$

Not available

305

Cub Cadet BS-692198

Screw (Blower Housing)

$6.49

$

In Stock, Qty 20+

0

332

Cub Cadet BS-690662

Nut (Flywheel)
(Superseded to 712-0318)

$3.49

$

In Stock, Qty 9

0

333

Cub Cadet BS-398811

Armature-Magneto

$66.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356A

Cub Cadet BS-398808

Wire-Stop

$12.99

$

In Stock, only 4 left!

0

359

Cub Cadet BS-691077

Washer (Ground Terminal)

$3.99

$

Usually ships in 2-12 days

0

373

Cub Cadet BS-691612

Nut (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

404

Cub Cadet BS-691691

Washer (Governor Crank)

$4.49

$

In Stock, Qty 5

0

415

UNKNOWN

$

$

Not available

455

Cub Cadet BS-691173

Cup-Flywheel

$39.99

$

Usually ships in 2-12 days

0

505

Cub Cadet BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 8

0

507

Cub Cadet BS-691972

Insulator

$9.49

$

In Stock, only 2 left!

0

520

Cub Cadet BS-691084

Terminal Ground

$6.99

$

Usually ships in 2-12 days

0

562

Cub Cadet BS-691119

Bolt (Governor Control Lever)

$4.49

$

In Stock, Qty 16

0

614

Cub Cadet BS-691620

Pin-Cotter
(Superseded to BS-93306)

$

$

Not available

616

Cub Cadet BS-692012

Crank-Governor

$15.99

$

In Stock, only 2 left!

0

632

Cub Cadet BS-693663

Spring/Link-Mechanical Gov.

$

$

Currently unavailable

726

Cub Cadet BS-399676

Gear-Ring
(Superseded to BS-696537)

$55.99

$

In Stock, Qty 8

0

727

Cub Cadet BS-395405

Cover-Starter Drive

$

$

Not available

727A

UNKNOWN

$

$

Not available

732

Cub Cadet BS-691097

Screw (Starter Drive Cover)

$4.49

$

In Stock, only 2 left!

0

732A

UNKNOWN

$

$

Not available

851

Cub Cadet BS-493880

Terminal-Spark Plug
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0
