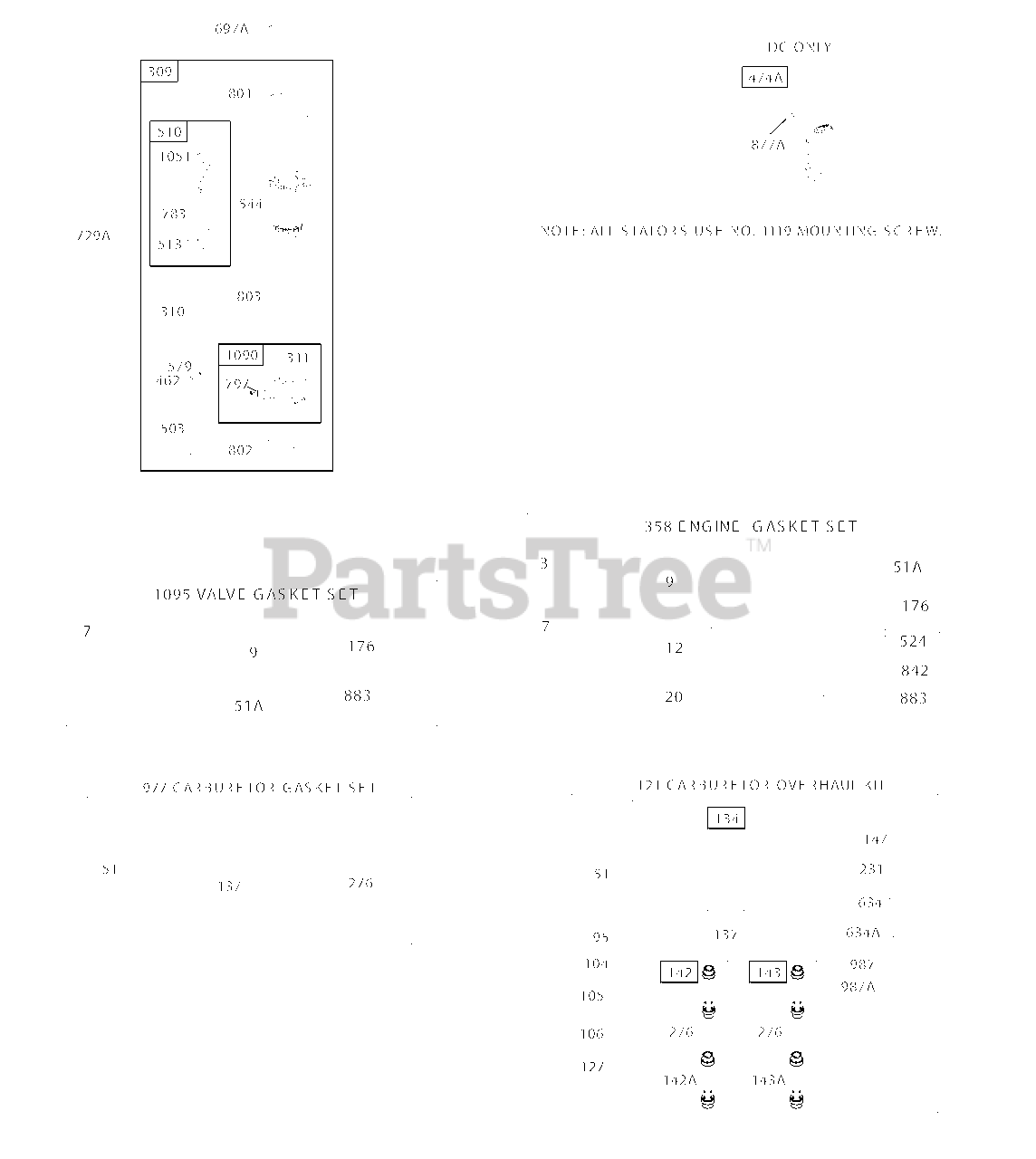

1027 (13A-328-101) - Cub Cadet Rear-Engine Riding Mower (2002) Starter, Gaskets Parts Diagram

Rear-Engine Riding Mower

Starter, Gaskets Parts Diagram

  • Title

3

Cub Cadet BS-391086

Seal-Oil (Magneto Side)
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet BS-272163

Gasket-Cylinder Head
(Superseded to BS-272163S)

$7.99

$

In Stock, Qty 13

0

9

Cub Cadet BS-697109

Gasket-Breather

$7.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-692221

Gasket-Crankcase (.015")

$8.99

$

In Stock, Qty 11

0

20

Cub Cadet BS-391086

Seal-Oil (PTO Side)
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

51

UNKNOWN

$

$

Not available

51A

Cub Cadet BS-272554

Gasket-Intake
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 20+

0

95

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

104

Cub Cadet BS-690525

Pin-Float Hinge

$4.99

$

Usually ships in 2-12 days

0

105

Cub Cadet BS-231855

Valve-Float Needle
(Superseded to BS-231855S)

$6.99

$

In Stock, Qty 20+

0

106

Cub Cadet BS-690577

Seat-Inlet

$7.99

$

In Stock, Qty 16

0

121

Cub Cadet BS-497535

Kit-Carburetor Overhaul

$67.99

$

In Stock, Qty 10

0

127

Cub Cadet BS-694530

Plug-Welch

$

$

Currently unavailable

134

UNKNOWN

$

$

Not available

137

Cub Cadet BS-281165

Gasket-Float Bowl
(Superseded to BS-281165S)

$4.99

$

In Stock, Qty 20+

0

142

Cub Cadet BS-690121

Nozzle-Carburetor

$30.99

$

Usually ships in 2-12 days

0

142A

UNKNOWN

$

$

Not available

143

Cub Cadet BS-692688

Nozzle-Carburetor (High Alt.)

$

$

Currently unavailable

143A

UNKNOWN

$

$

Not available

147

Cub Cadet BS-497472

Jet-Pilot

$22.99

$

Usually ships in 2-12 days

0

176

Cub Cadet BS-691917

Seal-O Ring (Air Cleaner Base)

$4.49

$

In Stock, Qty 20+

0

231

Cub Cadet BS-691636

Screw (Choke Valve)

$3.99

$

In Stock, only 2 left!

0

276

Cub Cadet BS-692255

Washer-Sealing

$5.49

$

In Stock, Qty 16

0

309

Cub Cadet BS-693054

Motor-Starter
(Superseded to BS-497595)

$110.99

$

In Stock, only 4 left!

0

310

Cub Cadet BS-690323

Bolt (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Cub Cadet BS-497608

Brush Set

$27.99

$

In Stock, only 4 left!

0

358

Cub Cadet BS-299577

Gasket Set-Engine

$35.99

$

In Stock, only 4 left!

0

462

Cub Cadet BS-691261

Washer (Starter Cable)

$3.99

$

In Stock, only 4 left!

0

474A

Cub Cadet BS-691953

Alternator
(Superseded to BS-592828)

$124.99

$

Usually ships in 2-12 days

0

503

Cub Cadet BS-691532

Strap-Starter

$6.49

$

Usually ships in 2-12 days

0

510

Cub Cadet BS-497606

Drive-Starter
(Superseded to BS-696541)

$

$

Not available

513

Cub Cadet BS-692024

Clutch-Drive

$21.99

$

In Stock, only 1 left!

0

524

Cub Cadet BS-281370

Seal-Dipstick Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

544

Cub Cadet BS-692034

Armature-Starter

$82.99

$

Usually ships in 2-12 days

0

579

Cub Cadet BS-691029

Nut (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

634

Cub Cadet BS-690801

Spring/Seal Assembly

$8.49

$

In Stock, only 1 left!

0

634A

UNKNOWN

$

$

Not available

697A

UNKNOWN

$

$

Not available

729A

Cub Cadet BS-691224

Clip-Wire

$4.99

$

Usually ships in 2-12 days

0

783

Cub Cadet BS-693059

Gear-Pinion
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

797

Cub Cadet BS-693167

Nut (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Cub Cadet BS-691429

Cap-Drive
(Superseded to BS-691283)

$83.99

$

Usually ships in 2-12 days

0

802

Cub Cadet BS-691286

Cap-End

$26.99

$

Usually ships in 2-12 days

0

803

Cub Cadet BS-693757

Housing-Starter

$25.99

$

Usually ships in 2-12 days

0

842

Cub Cadet BS-691870

Seal-O Ring (Dipstick Tube)

$4.49

$

In Stock, only 2 left!

0

877A

Cub Cadet BS-393814

Wire/Connector Alternator

$18.99

$

In Stock, only 2 left!

0

883

UNKNOWN

$

$

Not available

977

Cub Cadet BS-494385

Gasket Set-Carburetor
(Superseded to BS-697241)

$43.99

$

In Stock, Qty 9

0

987

Cub Cadet BS-691326

Seal-Throttle Shaft

$5.49

$

In Stock, only 1 left!

0

987A

UNKNOWN

$

$

Not available

1051

Cub Cadet BS-691265

Ring-Retaining

$5.49

$

In Stock, Qty 7

0

1090

Cub Cadet BS-691293

Retainer-Brush

$29.99

$

In Stock, Qty 6

0

1095

Cub Cadet BS-498536

Gasket Set-Valve

$26.99

$

In Stock, only 1 left!

0

1119

Cub Cadet BS-691183

Screw (Alternator)
(Superseded to BS-93621)

$

$

Not available
