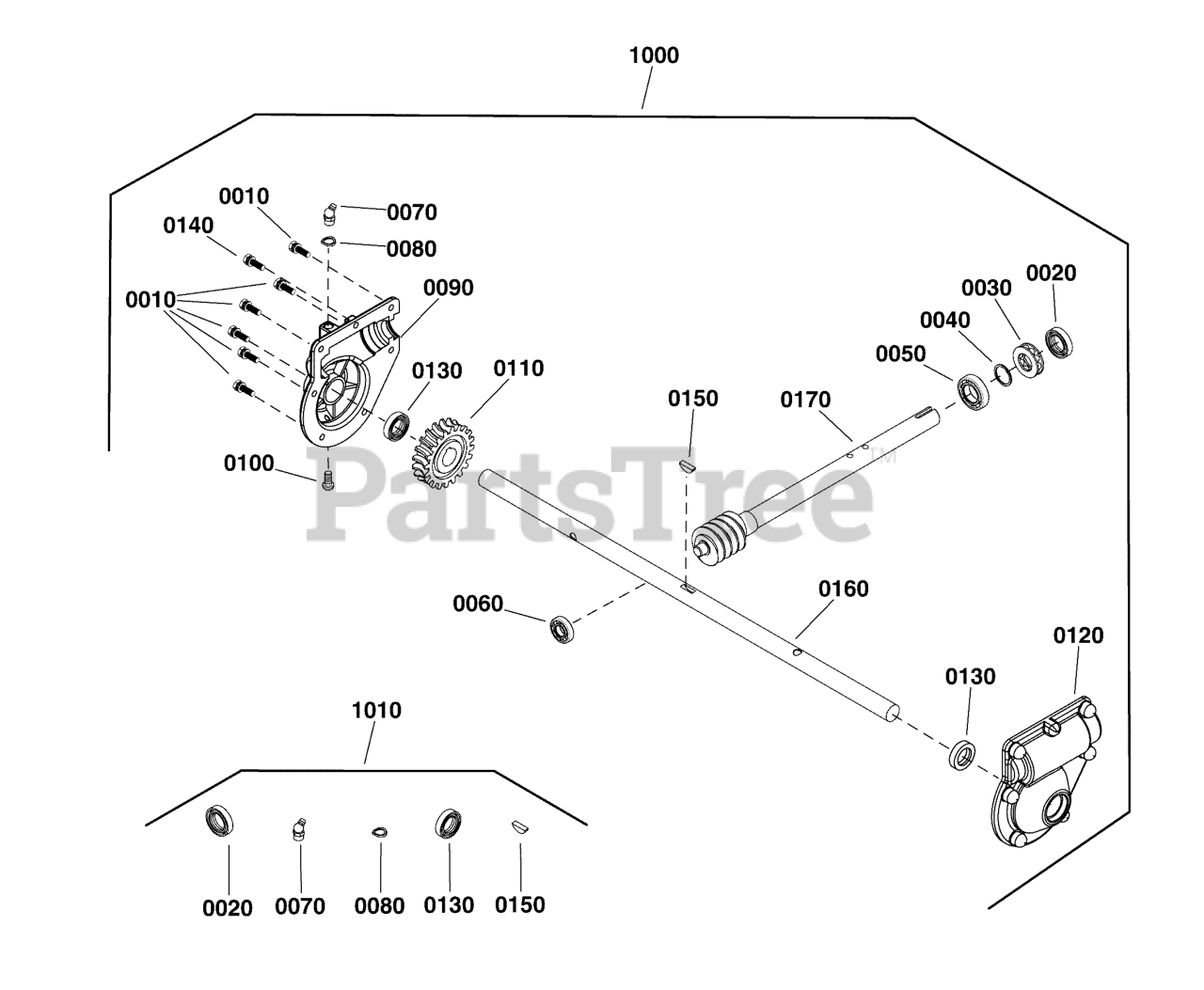

1027 LD (1697184-00) - Briggs & Stratton 27" Snow Thrower, 9.5 Gross TP (2019) Auger Gear Box Assembly Parts Diagram

27" Snow Thrower, 9.5 Gross TP

Auger Gear Box Assembly Parts Diagram

  • Title

1000

Briggs & Stratton 84001671

KIT, Gear Box, Auger

Note: (Incl. Ref. Nos. 0010 through 0170)

$378.99

$

Usually ships in 2-12 days

0

0010

SCREW, Hex Head, M6 X 20

$

$

Not available

0020

SEAL, Oil

$

$

Not available

0030

BEARING

$

$

Not available

0040

WASHER, Flat

$

$

Not available

0050

BEARING

$

$

Not available

0060

BEARING

$

$

Not available

0070

ZERK, Grease Fitting

$

$

Not available

0080

WASHER, Wave

$

$

Not available

0090

GEAR CASE, Right

$

$

Not available

0100

BOLT, Phillips Head, M5 X 10

$

$

Not available

0110

GEAR, Worm

$

$

Not available

0120

GEAR CASE, Left

$

$

Not available

0130

SEAL, Oil

$

$

Not available

0140

BOLT, Hex, M6 X 25

$

$

Not available

0150

KEY, WOODRUFF

$

$

Not available

0160

SHAFT, Auger Out

$

$

Not available

0170

SHAFT, Impeller, Wormgear

$

$

Not available

1010

Briggs & Stratton 84001647

KIT, Seal, Gearbox

Note: (Incl. Ref. Nos. 0020, 0070, 0080, 0130, 0150)

$7.49

$

Usually ships in 2-12 days

0

0020

SEAL, Oil

$

$

Not available

0070

ZERK, Grease Fitting

$

$

Not available

0080

WASHER, Wave

$

$

Not available

0130

SEAL, Oil

$

$

Not available

0150

KEY, WOODRUFF

$

$

Not available
