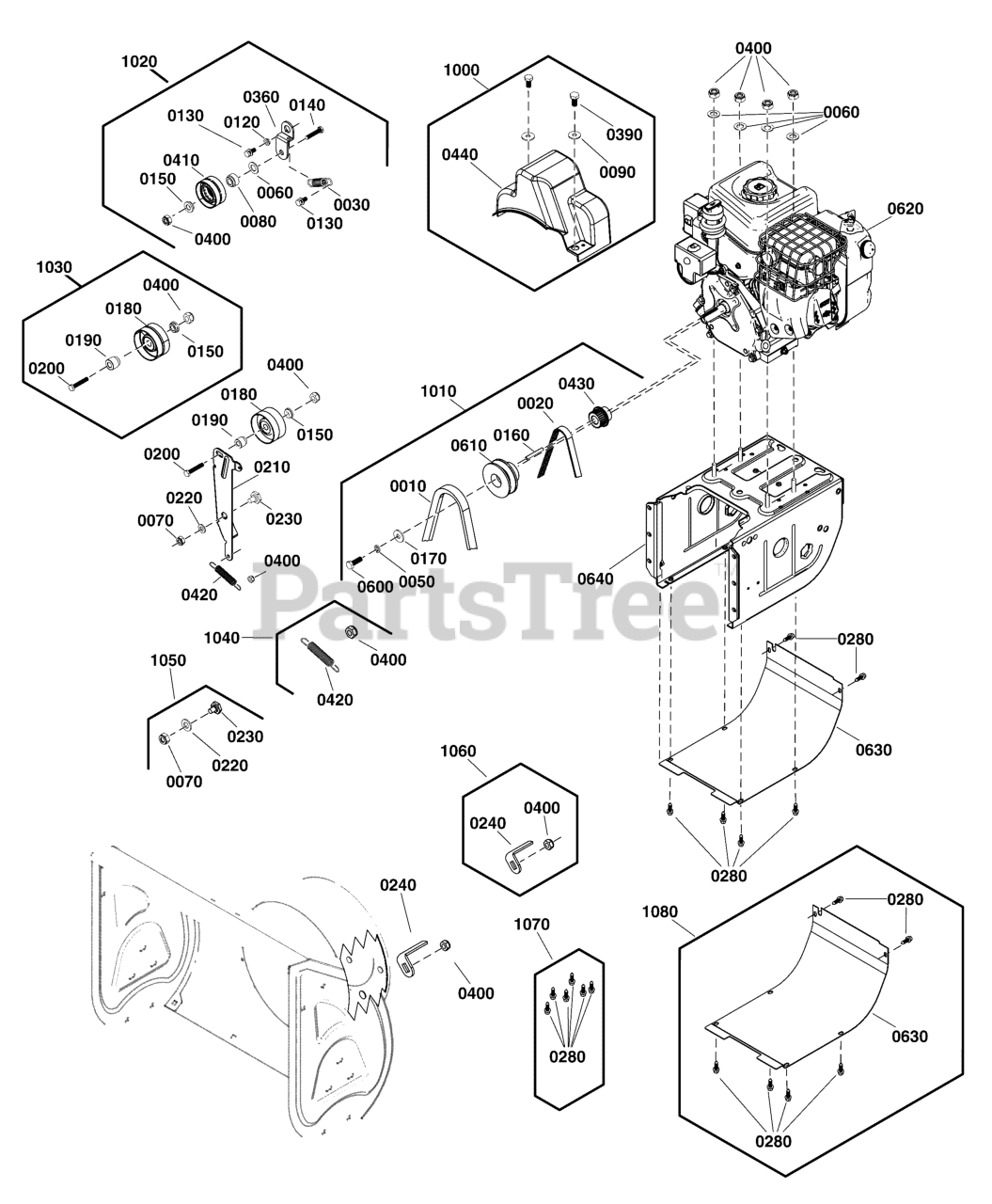

27" Snow Thrower, 9.5 Gross TP

Engine & Frame Group Parts Diagram

  • Title

0210

Briggs & Stratton 770804

IDLER, Auger

$40.99

$

Usually ships in 2-12 days

0

0620

Briggs & Stratton 13A137-0004-F1

**ENGINE, 9.5 Gross TP Briggs & Stratton

Note: (Engine Model: 13A137-0004-F1) (Refer to Note: *)

$

$

Currently unavailable

0640

MOTOR BOX ASSEMBLY, Charcoal

Note: (Refer to Note: **)

$

$

Not available

1060

Briggs & Stratton 84003843

KIT, Belt Guide

Note: (Incl. Ref. No. 0240, 0400)

$8.99

$

Usually ships in 2-12 days

0

0240

GUIDE, Belt

$

$

Not available

0400

NUT, Lock, M8

$

$

Not available

1070

Briggs & Stratton 771904

KIT, Hardware

Note: (Incl. Ref. No. 0280)

$6.99

$

Usually ships in 2-12 days

0

0280

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

1000

Briggs & Stratton 84003838

KIT, Belt Cover

Note: (Incl. Ref. Nos. 0090, 0390, 0440)

$42.99

$

In Stock, only 1 left!

0

0090

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0390

SCREW, Hex Head, M6 X 12

$

$

Not available

0440

COVER, Belt

$

$

Not available

1020

Briggs & Stratton 770795

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 0030, 0060, 0080, 0120, 0130, 0140, 0150, 0360, 0400, 0410)

$46.99

$

Usually ships in 2-12 days

0

0030

SPRING, Idler

$

$

Not available

0060

SPACER, Idler Pulley

$

$

Not available

0080

SPACER, Idler Pulley

$

$

Not available

0120

SPACER, Idler Plate, Small

$

$

Not available

0130

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

0140

SCREW, Hex Head, M8 X 40

$

$

Not available

0150

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0360

BRACKET, Idler

$

$

Not available

0400

NUT, Lock, M8

$

$

Not available

0410

PULLEY, Idler

$

$

Not available

1010

Briggs & Stratton 84003841

KIT, Drive Pulley, Traction Drive

Note: (Incl. Ref. Nos. 0010, 0020) 0050, 0160, 0170, 0430, 0600,0610)

$110.99

$

Usually ships in 2-12 days

0

0010

Briggs & Stratton 707584

BELT, Auger Drive

$41.99

$

In Stock, Qty 11

0

0020

Briggs & Stratton 707585

BELT, Traction Drive

$22.99

$

Usually ships in 2-12 days

0

0050

WASHER, Lock, M8

$

$

Not available

0160

Briggs & Stratton 84004762

KEY, Flat, 5 X 4.7 X 50

$3.49

$

Usually ships in 2-12 days

0

0170

WASHER, Flat, 8 X 28 X 3

$

$

Not available

0430

PULLEY, Drive

$

$

Not available

0600

SCREW, Hex Head, M8 X 30

$

$

Not available

0610

PULLEY, Auger

$

$

Not available

1080

Briggs & Stratton 707542

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 0280, 0630)

$51.99

$

Usually ships in 2-12 days

0

0280

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0630

COVER, Motor Box, Lower

$

$

Not available

1050

Briggs & Stratton 707565

KIT-HARDWARE, IDLER BRACKET

Note: (Incl. Ref. Nos. 0070, 0220, 0230)

$8.99

$

Usually ships in 2-12 days

0

0070

NUT, Lock, M10

$

$

Not available

0220

WASHER, Flat, 10 X 20 X 2

$

$

Not available

0230

SCREW, Hex Head, M10 X 13

$

$

Not available

1040

Briggs & Stratton 84003839

SPRING, Idler Pulley

Note: (Incl. Ref. Nos. 0400, 0420)

$4.49

$

Usually ships in 2-12 days

0

0400

NUT, Lock, M8

$

$

Not available

0420

SPRING, Idler

$

$

Not available

1030

Briggs & Stratton 770807

KIT, Idler Pulley, Tension Plate

Note: (Incl. Ref. Nos. 0150, 0180, 0190, 0200, 0400)

$37.99

$

Usually ships in 2-12 days

0

0150

SPACER, Idler Pulley

$

$

Not available

0180

PULLEY, Idler

$

$

Not available

0190

SPACER, Sleeve, Idler Pulley

$

$

Not available

0200

SCREW, Hex Head, M8 X 45

$

$

Not available

0400

NUT, Lock, M8

$

$

Not available
