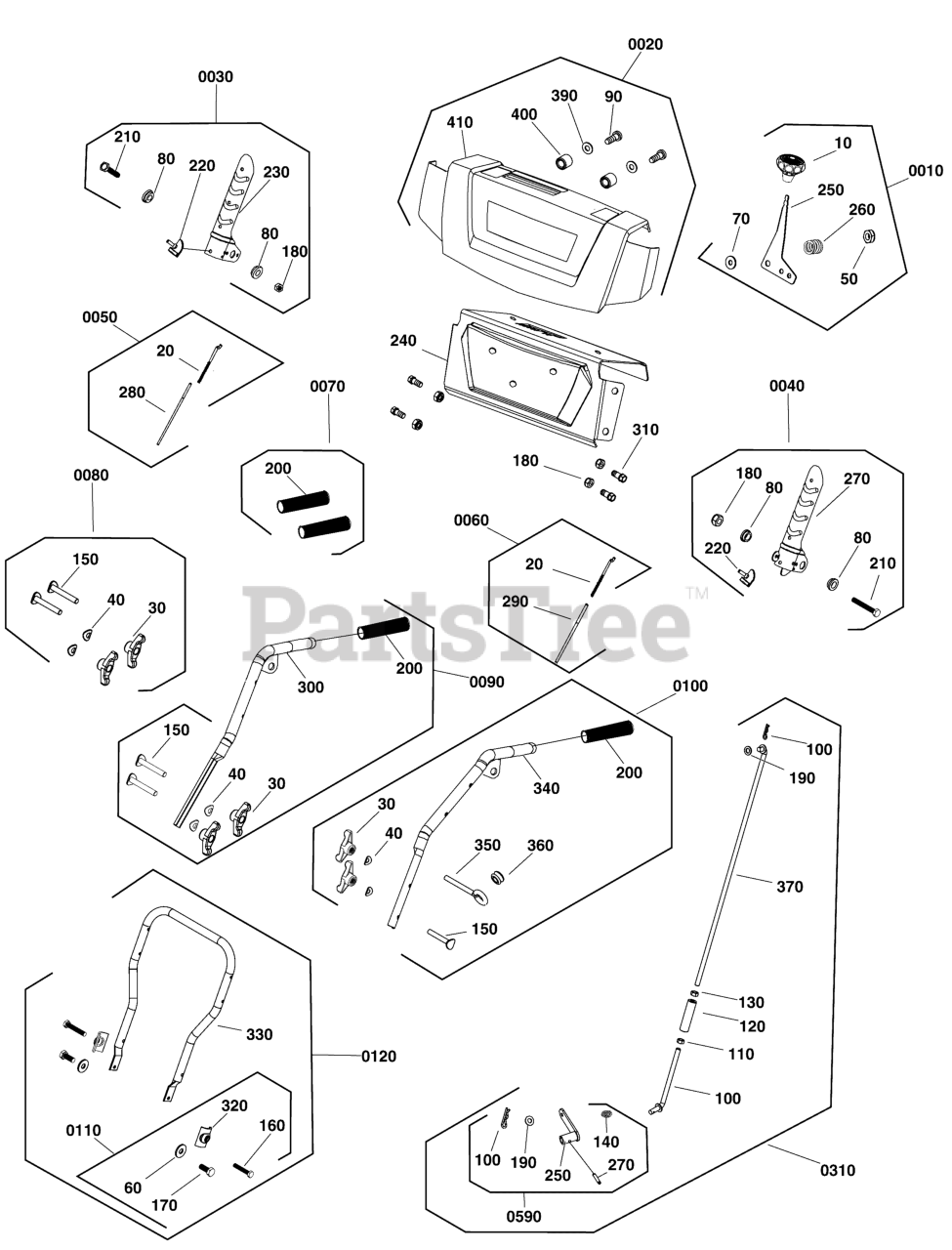

1027 LD (1697184-00) - Briggs & Stratton 27" Snow Thrower, 9.5 Gross TP (2019) Handles & Controls Group Parts Diagram

27" Snow Thrower, 9.5 Gross TP

Handles & Controls Group Parts Diagram

  • Title

0010

Briggs & Stratton 707794

KIT, LEVER, SPEED

Note: (Incl. Ref. Nos. 10, 50, 70, 250, 260)

$31.99

$

In Stock, only 2 left!

0

10

KNOB, Speed Control Lever

$

$

Not available

50

NUT, Lock, M10

$

$

Not available

70

WASHER, 10x28x3, Flat

$

$

Not available

250

LEVER, Speed Control

$

$

Not available

260

SPRING, Speed Control

$

$

Not available

0020

Briggs & Stratton 707796

KIT, DASH, BRIGGS

Note: (Incl. Ref. Nos. 90, 390, 400, 410)

$139.99

$

Usually ships in 2-12 days

0

90

SCREW, Phillips Head, ST4, 2 X 14

$

$

Not available

390

WASHER, Flat

$

$

Not available

400

BUCKLE, Lamp

$

$

Not available

410

PANEL, Dash

$

$

Not available

0030

Briggs & Stratton 707800

KIT, RIGHT HAND LEVER, TRACTION DRIVE

Note: (Incl. Ref. Nos. 80, 180, 210, 220, 230)

$29.99

$

Usually ships in 2-12 days

0

80

SPACER, Idler Plate, Small

$

$

Not available

180

NUT, Lock, M8

$

$

Not available

210

SCREW, Hex Head, M8X55

$

$

Not available

220

CAP, Rubber

$

$

Not available

230

*LEVER, Traction Drive

$

$

Not available

0040

Briggs & Stratton 707802

KIT, LEFT HAND LEVER, AUGER DRIVE

Note: (Incl. Ref. Nos. 80, 180, 210, 220, 270)

$29.99

$

Usually ships in 2-12 days

0

80

SPACER, Idler Plate, Small

$

$

Not available

180

NUT, Lock, M8

$

$

Not available

210

SCREW, Hex Head, M8X55

$

$

Not available

220

CAP, Rubber

$

$

Not available

270

LEVER, Auger Engagement

$

$

Not available

0050

Briggs & Stratton 707766

KIT, CABLE, TRACTION DRIVE

Note: (Incl. Ref. Nos. 20, 280)

$54.99

$

In Stock, only 1 left!

0

20

KIT, Cable Hardware

$

$

Not available

280

CABLE, Traction Drive

$

$

Not available

0060

Briggs & Stratton 707803

KIT, Cable, Auger Drive

Note: (Incl. Ref. Nos. 20, 290)

$158.99

$

Usually ships in 2-12 days

0

20

KIT, Cable Hardware

$

$

Not available

290

CABLE, Auger Drive

$

$

Not available

0070

Briggs & Stratton 770080

KIT, Grip, Handle

Note: (Incl. Ref. No. 200)

$20.99

$

Usually ships in 2-12 days

0

200

GRIP, Hand

$

$

Not available

0080

Briggs & Stratton 707835

KIT, UPPER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 30, 40, 150)

$38.99

$

Usually ships in 2-12 days

0

30

KNOB, Wing, M8

$

$

Not available

40

WASHER, M8, Curved

$

$

Not available

150

BOLT, Carriage, M8 X 55

$

$

Not available

0090

Briggs & Stratton 770115

KIT, UPPER HANDLE, RIGHT

Note: (Incl. Ref. Nos. 30, 40, 150, 200, 300)

$58.99

$

Usually ships in 2-12 days

0

30

KNOB, Wing, M8

$

$

Not available

40

WASHER, M8, Curved

$

$

Not available

150

BOLT, Carriage, M8 X 55

$

$

Not available

200

GRIP, Hand

$

$

Not available

300

HANDLE, Right Upper

$

$

Not available

0100

Briggs & Stratton 770116

KIT, UPPER HANDLE, LEFT

Note: (Incl. Ref. Nos. 30, 40, 150, 200, 340, 350, 360)

$55.99

$

Usually ships in 2-12 days

0

30

KNOB, Wing, M8

$

$

Not available

40

WASHER, M8, Curved

$

$

Not available

150

BOLT, Carriage, M8 X 55

$

$

Not available

200

GRIP, Hand

$

$

Not available

340

HANDLE, Left Upper

$

$

Not available

350

EYEBOLT, M8

$

$

Not available

360

GROMMET, Eyebolt

$

$

Not available

0110

Briggs & Stratton 707806

KIT, LOWER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 60, 160, 170, 320 )

$10.99

$

Usually ships in 2-12 days

0

60

WASHER, 8x22x2, Flat

$

$

Not available

160

SCREW, Hex Head, M8 X 45

$

$

Not available

170

SCREW, Hex Head, M8X20

$

$

Not available

320

WASHER

$

$

Not available

0120

Briggs & Stratton 707807

KIT, LOWER HANDLE

Note: (Incl. Ref. Nos. 330, 0110 )

$90.99

$

Usually ships in 2-12 days

0

330

HANDLE, Lower

$

$

Not available

0310

Briggs & Stratton 707818

KIT, SHIFT ROD

Note: (Incl. Ref. Nos. 100,110,120, 130, 190, 370, 380, 0590 )

$54.99

$

Usually ships in 2-12 days

0

100

PIN, Hair, Cotter

$

$

Not available

110

NUT, Hex, M8

$

$

Not available

120

SLEEVE, Adjustment, M8

$

$

Not available

130

NUT, Hex, M8

$

$

Not available

190

WASHER, FLAT, 8X16X1.2

$

$

Not available

370

ROD, Upper, Speed Control

$

$

Not available

380

ROD, Lower, Speed Control

$

$

Not available

0590

Briggs & Stratton 709539

KIT, SHIFT ROD HARDWARE

Note: (Incl. Ref. Nos. 100, 140, 190, 250, 270)

$15.99

$

Usually ships in 2-12 days

0

100

PIN, Hair, Cotter

$

$

Not available

140

SPRING, Speed Select

$

$

Not available

190

WASHER, FLAT, 8X16X1.2

$

$

Not available

250

ARM, Speed Select

$

$

Not available

270

PIN, Spring, 6 X 30

$

$

Not available

240

DASHBOARD, Sub

$

$

Not available

310

SCREW, Flange, M8 X 40

$

$

Not available
