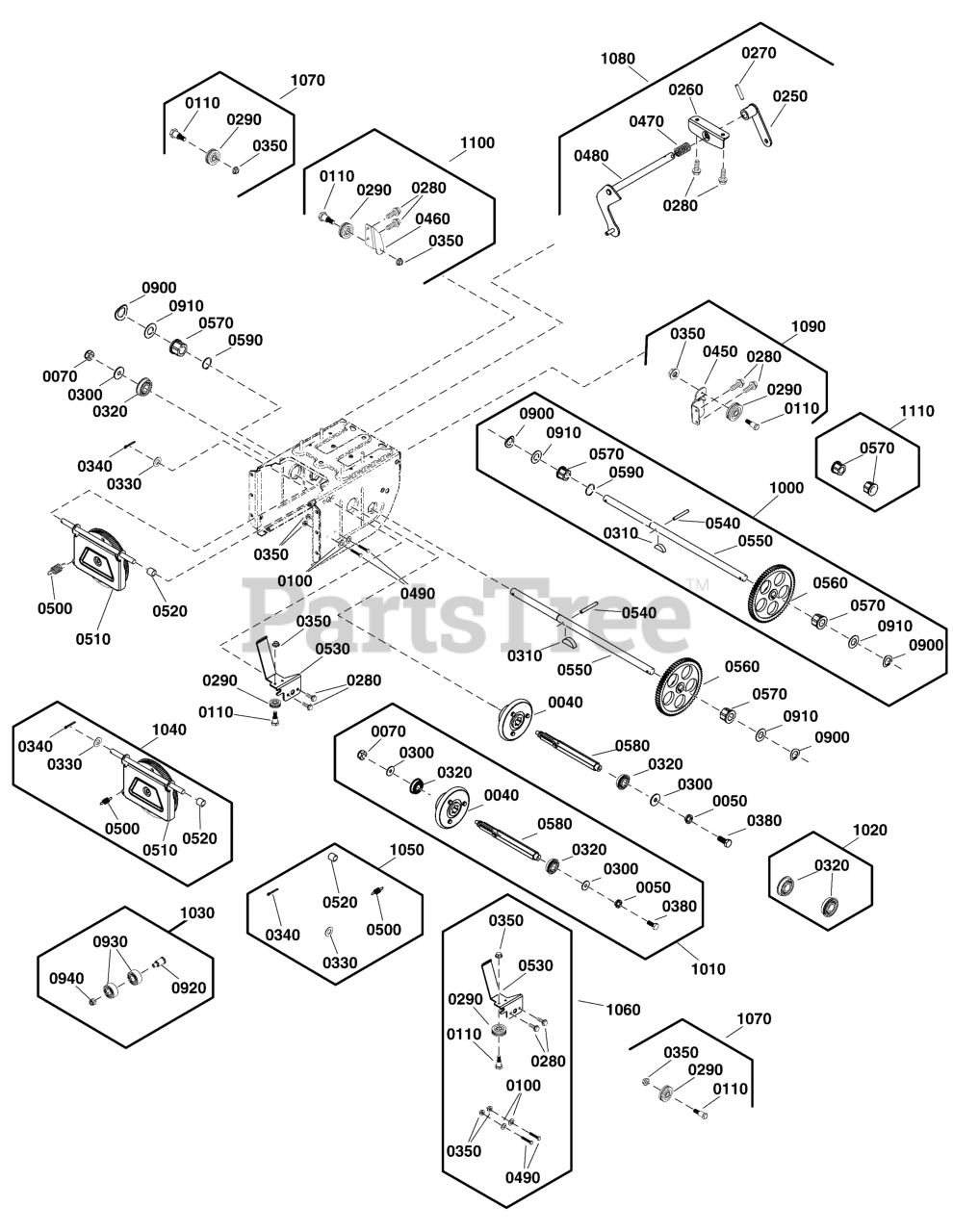

1027 LD (1697184-00) - Briggs & Stratton 27" Snow Thrower, 9.5 Gross TP (2019) Transaxle Drive Group Parts Diagram

27" Snow Thrower, 9.5 Gross TP

Transaxle Drive Group Parts Diagram

  • Title

1000

Briggs & Stratton 770078

KIT, Axle & Sprocket

Note: (Incl. Ref. Nos. 0310, 0540, 0550, 0560, 0570, 0590, 0900, 0910)

$125.99

$

Usually ships in 2-12 days

0

0310

KEY, WOODRUFF

$

$

Not available

0540

PIN, Spring, 4 X 30

$

$

Not available

0550

AXLE

$

$

Not available

0560

GEAR, Drive

$

$

Not available

0570

SLEEVE, Axle

$

$

Not available

0590

RING, External Retaining

$

$

Not available

0900

WASHER, Flat

$

$

Not available

0910

WASHER, Wave, 20

$

$

Not available

1010

Briggs & Stratton 707535

KIT, Friction Wheel & Shaft

Note: (Incl. Ref. Nos. 0040, 0050, 0070, 0300, 0320, 0380, 0580)

$125.99

$

Usually ships in 2-12 days

0

0040

FRICTION WHEEL ASSEMBLY

$

$

Not available

0050

WASHER, Lock, M8

$

$

Not available

0070

NUT, Lock, M10

$

$

Not available

0300

WASHER, Flat, 8 X 28 X 3

$

$

Not available

0320

BEARING, Ball

$

$

Not available

0380

SCREW, Hex Head, M8X20

$

$

Not available

0580

SHAFT, Hex

$

$

Not available

1020

Briggs & Stratton 707536

KIT, Bearing, Friction Wheel & Shaft

Note: (Incl. Ref. No. 0320)

$23.99

$

Usually ships in 2-12 days

0

0320

BEARING, Ball

$

$

Not available

1030

Briggs & Stratton 707539

KIT, BEARING, SWING PLATE

Note: (Incl. Ref. Nos. 0920, 0930, 0940)

$26.99

$

In Stock, only 1 left!

0

0920

SHAFT, Bearing Retainer, M10

$

$

Not available

0930

BEARING, Ball

$

$

Not available

0940

NUT, Lock, M10

$

$

Not available

1040

Briggs & Stratton 707540

KIT, SWINGING PLATE

Note: (Incl. Ref. Nos. 0330, 0340, 0500, 0510, 0520)

$75.99

$

Usually ships in 2-12 days

0

0330

WASHER, Flat, 13 X 24 X 2

$

$

Not available

0340

PIN, Cotter, 2.5 X 30

$

$

Not available

0500

SPRING, Extension

$

$

Not available

0510

PULLEY, Friction

$

$

Not available

0520

SLEEVE, Spacer

$

$

Not available

1050

Briggs & Stratton 707538

KIT, SPRING, SWINGING PLATE

Note: (Incl. Ref. Nos. 0330, 0340, 0500, 0520)

$9.99

$

Usually ships in 2-12 days

0

0330

WASHER, Flat, 13 X 24 X 2

$

$

Not available

0340

PIN, Cotter, 2.5 X 30

$

$

Not available

0500

SPRING, Extension

$

$

Not available

0520

SLEEVE, Spacer

$

$

Not available

1060

Briggs & Stratton 84003842

KIT, Belt Guide

Note: (Incl. Ref. Nos. 0100, 0110, 0280, 0290, 0350, 0490, 0530)

$16.99

$

Usually ships in 2-12 days

0

0100

WASHER, 6x12x.7, Flat

$

$

Not available

0110

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

0280

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0290

PULLEY, Cable

$

$

Not available

0350

NUT, HEX FLANGE HEAD, M6

$

$

Not available

0490

SCREW, Hex Head, M6 X 35

$

$

Not available

0530

GUIDE, Belt

$

$

Not available

1070

Briggs & Stratton 707541

KIT, Pulley, Cable

Note: (Incl. Ref. Nos. 0110, 0290, 0350)

$17.99

$

Usually ships in 2-12 days

0

0110

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

0290

PULLEY, Cable

$

$

Not available

0350

NUT, HEX FLANGE HEAD, M6

$

$

Not available

1080

Briggs & Stratton 707527

KIT, Shift Rod

Note: (Incl. Ref. Nos. 0250, 0260, 0280, 0470, 0480)

$26.99

$

Usually ships in 2-12 days

0

0250

ARM, Speed Select

$

$

Not available

0260

BRACKET, Speed Select

$

$

Not available

0280

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0470

SPRING, Compression

$

$

Not available

0480

ROD, Speed Select, Fork

$

$

Not available

1090

Briggs & Stratton 707528

KIT, Cable Base, Auger Drive

Note: (Incl. Ref. Nos. 0110, 0270, 0280, 0290, 0350, 0450)

$18.99

$

Usually ships in 2-12 days

0

0110

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

0270

PIN, Spring, 6 X 30

$

$

Not available

0280

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0290

PULLEY, Cable

$

$

Not available

0350

NUT, HEX FLANGE HEAD, M6

$

$

Not available

0450

BRACKET, Cable Guide, Auger Control

$

$

Not available

1100

Briggs & Stratton 707529

KIT, Cable Base, Traction Drive

Note: (Incl. Ref. Nos. 0110, 0280, 0290, 0350, 0460)

$26.99

$

Usually ships in 2-12 days

0

0110

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

0280

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0290

PULLEY, Cable

$

$

Not available

0350

NUT, HEX FLANGE HEAD, M6

$

$

Not available

0460

BRACKET, Cable Guide, Traction Control

$

$

Not available

1110

Briggs & Stratton 707532

KIT, AXLE SLEEVE

Note: (Incl. Ref. Nos. 0570)

$15.99

$

Usually ships in 2-12 days

0

0570

SLEEVE, Axle

$

$

Not available
