10270 C - Lawn-Boy Silver Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE & BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

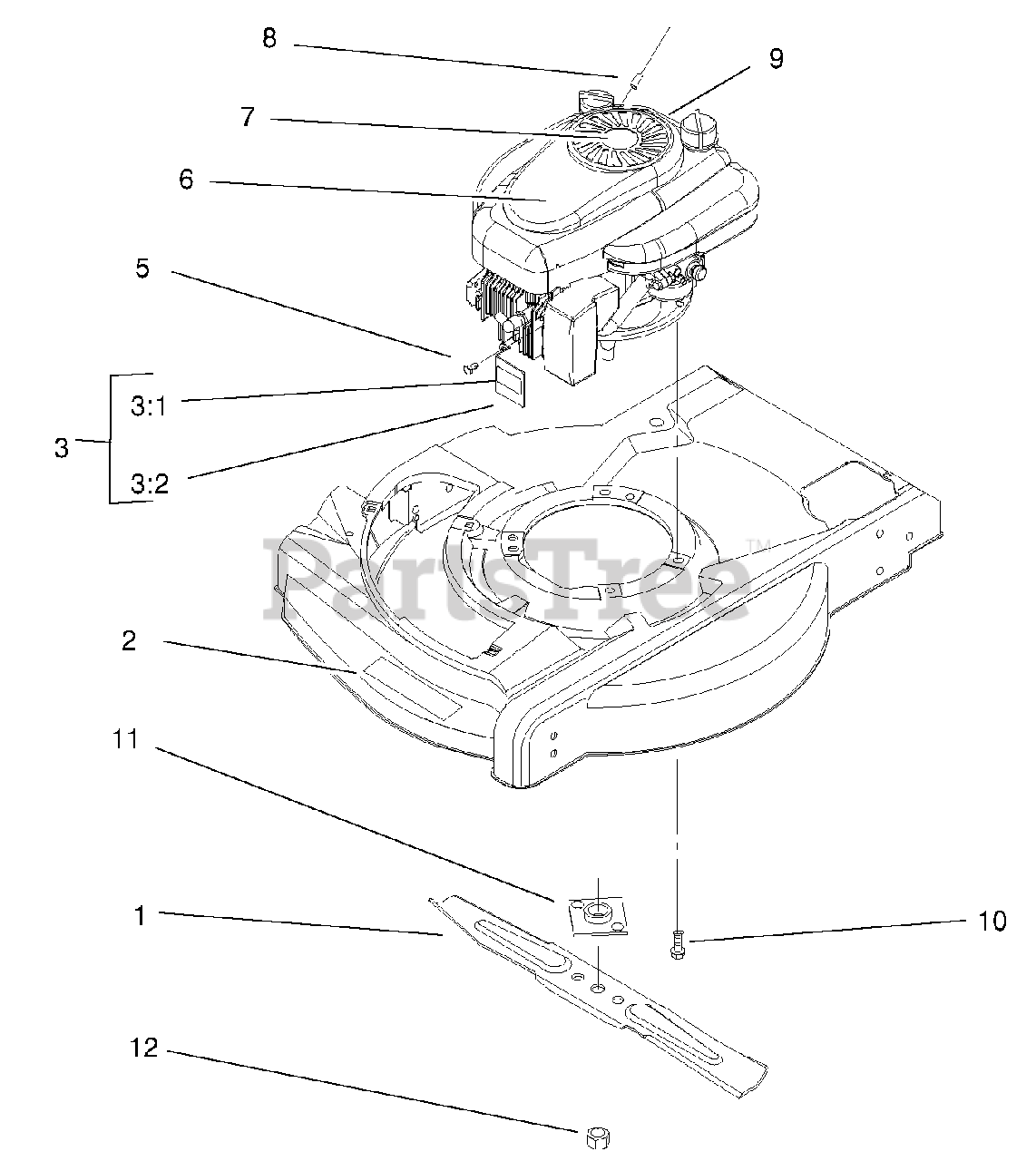

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 612543-03

BLADE

$29.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 104-7958

DECAL-DECK

$

$

Not available

3

Lawn-Boy 105-1278

ASM-Guard,Muffler (only on: 10270c)

$

$

Not available

3

Lawn-Boy 95-5569

ASM-Muffler Guard (only on: 10270)

$

$

Not available

3:1

Lawn-Boy 104-8065

Decal-Surface, Hot-International (only on: 10270c)

$

$

Not available

3:1

Lawn-Boy 65-2690

Decal-Surface, Hot (only on: 10270)

$5.49

$

In Stock, only 4 left!

0

3:2

Lawn-Boy 94-6066-03

GUARD - MUFFLER

$

$

Not available

5

Lawn-Boy 32144-85

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 98-1593

APPLIQUE

$24.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 104-7684

DECAL-RECOIL,5HP

$11.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 100-5998

Engine (Tecumseh Lev115-350181e)

$

$

Currently unavailable

10

Lawn-Boy 95-1726

SCREW-TAPTITE W/PATCH

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 105-1256

BLADE RETAINER ASM

$41.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 7

0
