10272 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) HOUSING ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

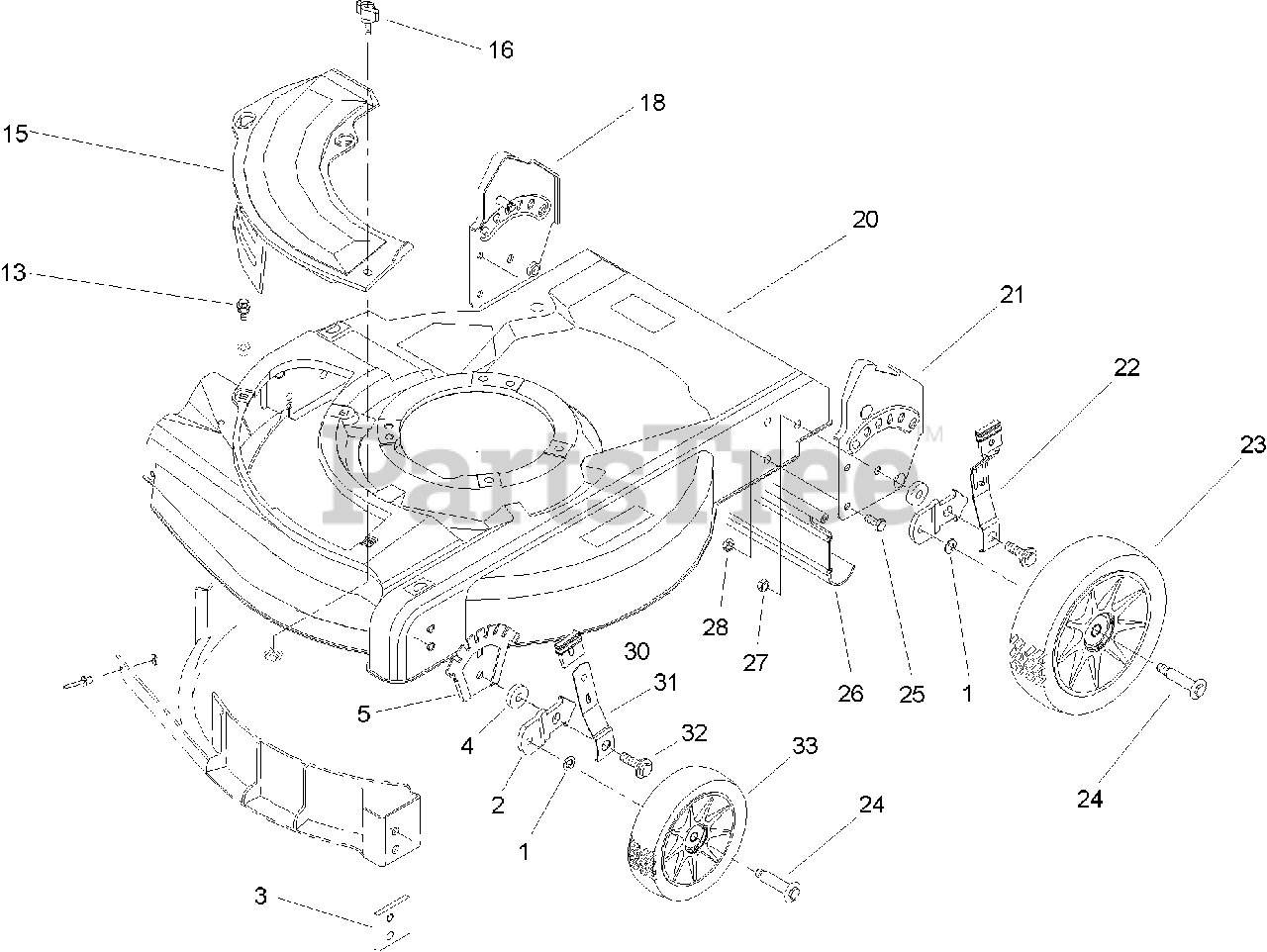

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

3

Lawn-Boy 92-7731

PLATE-BAFFLE

$8.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-4890

WASHER-WHEEL

$8.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 92-4881-03

PLATE-HEIGHT, ADJUSTMENT

$25.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 614677

SCREW-SEMS

$3.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 92-8630

PLATE-MULCH

$

$

Not available

16

Lawn-Boy 98-8332

KNOB

$5.49

$

In Stock, Qty 13

0

18

Lawn-Boy 92-7742

RH HANDLE BRACKET ASM

$

$

Not available

20

Lawn-Boy 98-4471

HOUSING ASM

$

$

Not available

21

Lawn-Boy 92-7743

LH HANDLE BRACKET ASM

$

$

Not available

22

Lawn-Boy 92-1005

REAR SPRING ARM ASM

$21.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 95-7437

WHEEL AND TIRE ASM

$27.99

$

In Stock, only 3 left!

0

24

Lawn-Boy 92-1099

BOLT-SHOULDER

$7.49

$

In Stock, Qty 10

0

25

Lawn-Boy 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 92-8647

SHIELD-TRAILING

$35.99

$

In Stock, Qty 9

0

27

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$12.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

32

Lawn-Boy 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 9

0

33

Lawn-Boy 95-7436

WHEEL AND TIRE ASM

$

$

Not available

99

Lawn-Boy 95-7052

PLATE-OPENING, CHUTE

Note: Not illustrated

$30.99

$

In Stock, only 1 left!

0
