1028 (312-850-100) - Cub Cadet 28" Snow Thrower (1992) Snow Thrower - Part I Parts Diagram

28" Snow Thrower

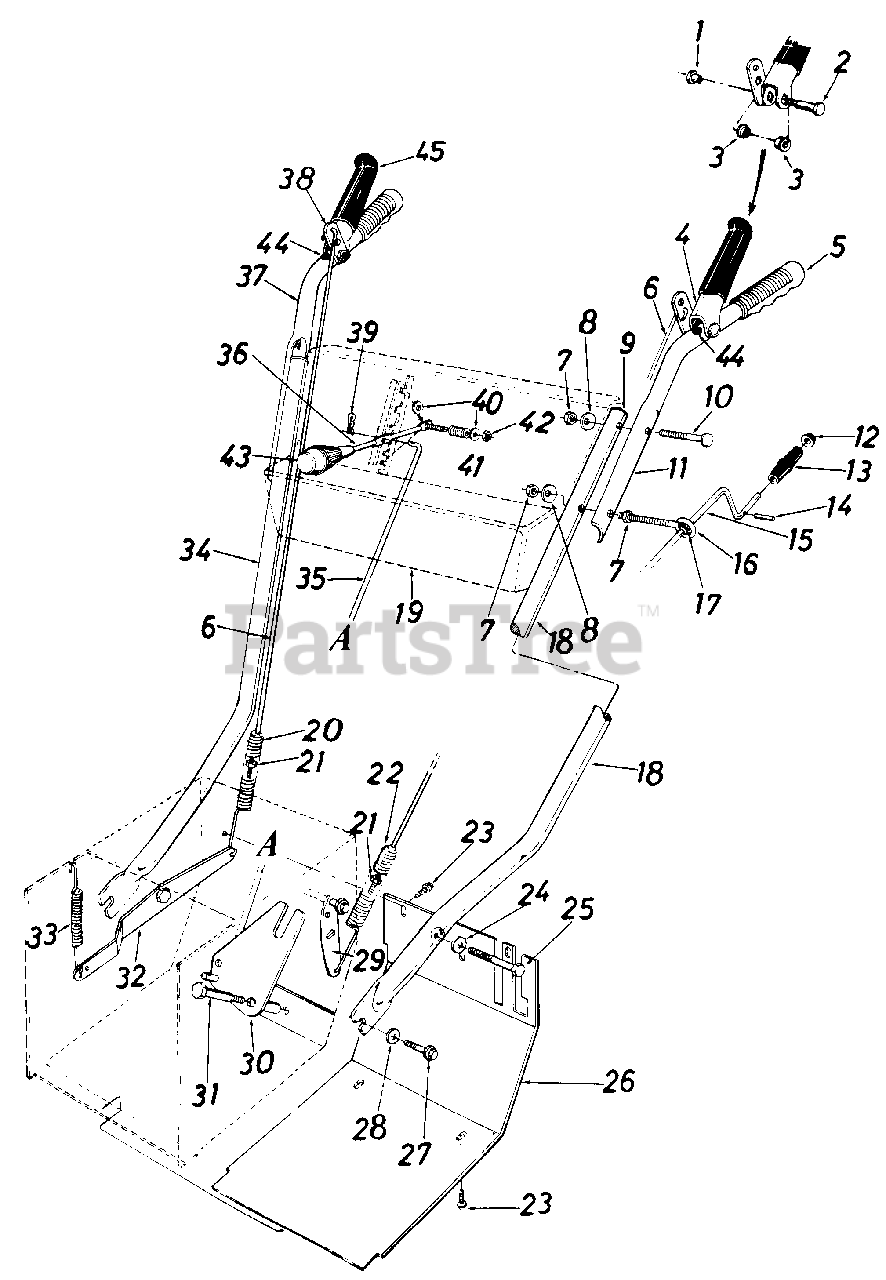

Snow Thrower - Part I Parts Diagram

  • Title

1

Cub Cadet 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

In Stock, only 1 left!

0

2

Cub Cadet 738-0560

Shld. Bolt .374 Dia. x 1.375" Lg.
(Superseded to 938-0560)

$9.99

$

In Stock, only 2 left!

0

3

Cub Cadet 741-0402

Hex Flange Plastic Bearing 38" I.D.

$

$

Not available

4

Cub Cadet 05987

Clutch Grip Ass'y.-L.H.

$

$

Currently unavailable

5

Cub Cadet 720-0180

Grip-Black
(Superseded to 720-04083)

$13.99

$

In Stock, only 3 left!

0

6

Cub Cadet 747-0461

Lockout Rod

$

$

Not available

7

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 731-0496

Plastic Plug

$

$

Not available

10

Cub Cadet 710-0487

Curved Carriage Bolt 5/16-18 x 2.0" Lg.

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 749-0595

Upper Handle-L.H.

$

$

Not available

12

Cub Cadet 726-0100

Push Nut 318" Rod

$3.99

$

In Stock, Qty 8

0

13

Cub Cadet 720-0201A

Knob 3/8" Rod

$10.99

$

In Stock, Qty 6

0

14

Cub Cadet 715-0138

Roll Pin .12 Dia. x .631" Lg.
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

15

Cub Cadet 05980

Chute Crank Ass'y.

$

$

Not available

16

Cub Cadet 747-0416A

Eye Bolt 5/16-18 x 5.0" Lg.

$

$

Not available

17

Cub Cadet 741-0475

Plastic Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 749-0405

Lower Handle-L.H.

$

$

Currently unavailable

19

Cub Cadet 784-5451

Handle Panel Ass'y.

Note: Color Code 499

$

$

Not available

20

Cub Cadet 732-0463

Extension Spring .75" O.D. x 5.0" Lg.
(Superseded to 732-0463A)

$17.99

$

In Stock, only 1 left!

0

21

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet 732-0184

Extension Spring .75" O.D. x 5.0" Lg.

$23.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 784-5131B

Frame Cover

Note: Color Code 498

$

$

Currently unavailable

27

Cub Cadet 710-0555

Pilot Hex Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

28

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 05500

Drive Clutch Brkt. Ass'y.

$

$

Currently unavailable

30

Cub Cadet 784-5133

Shifting Linkage Brkt. Ass'y.

Variations

Cub Cadet 784-5133-0637

BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 738-0129

Shld. Bolt .498 Dia. x 2.0" Lg.

$10.99

$

In Stock, only 1 left!

0

32

Cub Cadet 05518B

Auger Clutch Brkt.

$

$

Not available

33

Cub Cadet 732-0303

Extension Spring .38" O.D. x 3.18" Lg.
(Superseded to 932-0303)

$9.49

$

In Stock, Qty 14

0

34

Cub Cadet 749-0406

Lower Handle-R.H.

$

$

Currently unavailable

35

Cub Cadet 747-0356A

Shifting Rod

$

$

Not available

36

Cub Cadet 747-0696

Shift Handle

$

$

Not available

37

Cub Cadet 749-0596

Upper Handle-R.H.

Variations

Cub Cadet 749-0596-0637

HANDLE-FOLDING (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 05988

Clutch Grip Ass'y.-R.H.

$

$

Not available

39

Cub Cadet 714-0104

Int. Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.49

$

In Stock, only 1 left!

0

41

Cub Cadet 732-0193

Compression Spring

$4.49

$

In Stock, Qty 8

0

42

Cub Cadet 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 720-0218

Knob

$18.99

$

In Stock, only 2 left!

0

44

Cub Cadet 726-0247

Push Cap
(Superseded to 935-0199A)

$6.99

$

In Stock, Qty 16

0

45

Cub Cadet 731-0473

Black Vinyl Grip

$4.49

$

Usually ships in 3-6 days

0
