1028 (319-850-100) - Cub Cadet 28" Snow Thrower (1989) Snow Thrower Part 2 Parts Diagram

28" Snow Thrower

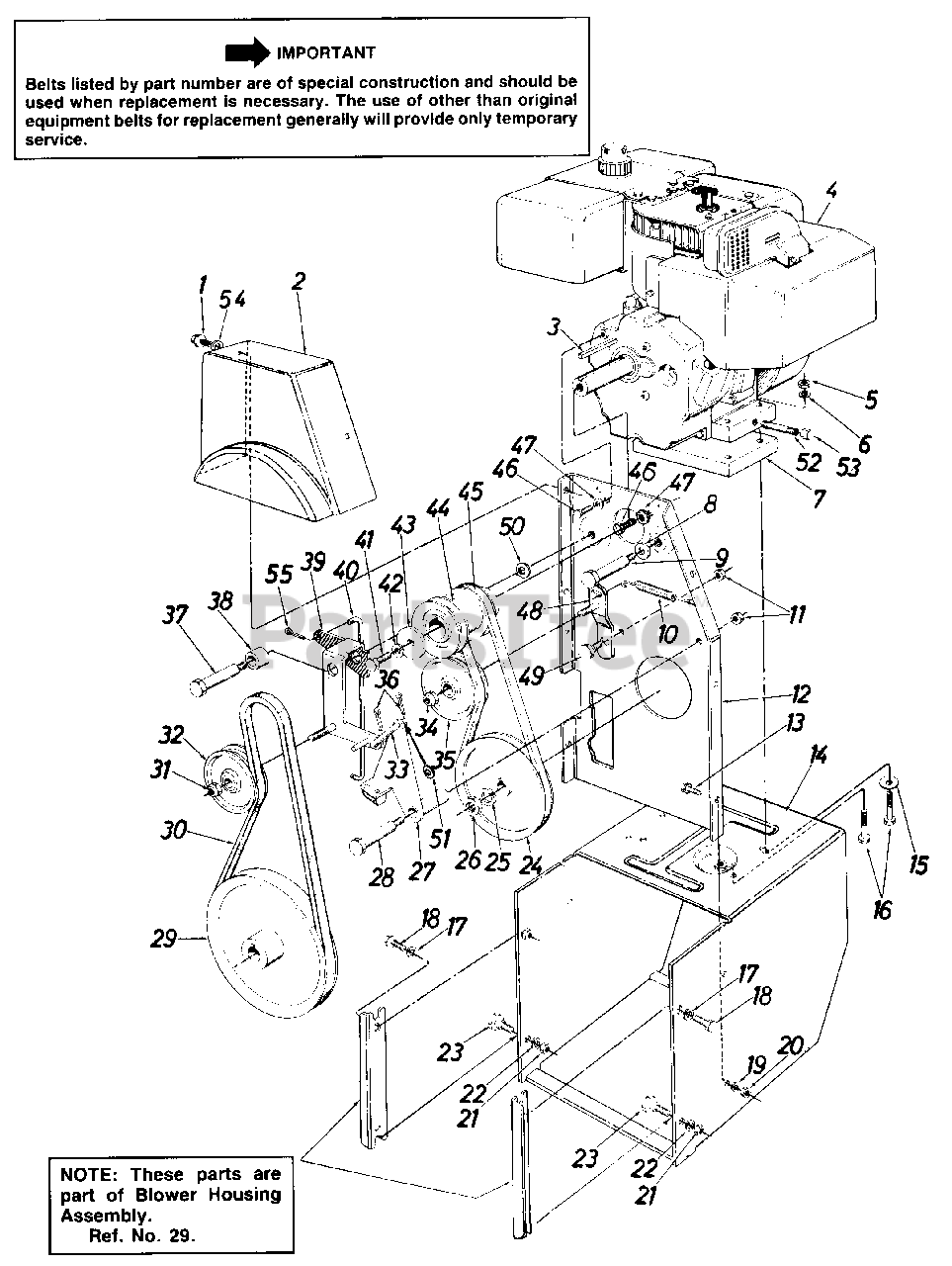

Snow Thrower Part 2 Parts Diagram

  • Title

1

Cub Cadet 710-0726

SCREW-HEX HD TAP

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 731-0321

COVER-BELT
(Superseded to 931-2531)

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 714-0118

KEY-SQ 1/4 x 1.50

$6.49

$

Usually ships in 3-6 days

0

4

Note: Engine

$

$

Not available

5

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 717-0522

BLOCK-ENGINE SPACER

$

$

Not available

8

Cub Cadet 736-0105

WASHER-BELL .400 ID x .88 x .060

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 738-0215

SCREW-SHLD .498 DIA x 3.00
(Superseded to 738-0215A)

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 732-0303

SPRING-EXTENSION
(Superseded to 932-0303)

$9.49

$

In Stock, Qty 14

0

11

Cub Cadet 712-0375

NUT-HEX CENTER L-3/8-16

$4.49

$

In Stock, Qty 12

0

12

Cub Cadet 05491A

BRACKET ASSY-ENG

$

$

Not available

13

Cub Cadet 710-0198

SCREW-HEX SEMS 5/16-18 x .75
(Superseded to 910-0198)

$

$

Not available

14

Cub Cadet 784-5129B

FRAME ASSY

$

$

Currently unavailable

15

Cub Cadet 736-0264

WASHER-FL-.344 x .62

$6.49

$

In Stock, only 2 left!

0

16

Cub Cadet 710-0378

SCREW-HEX

$4.49

$

In Stock, only 3 left!

0

17

Cub Cadet 736-0217

WASHER-HDL 3/8

$3.99

$

In Stock, Qty 13

0

18

Cub Cadet 710-0555

SCREW-PILOT 3/8-16 x .88
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

19

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0798

NUT-HEX 3/8-16

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0217

WASHER-HDL 3/8

$3.99

$

In Stock, Qty 13

0

23

Cub Cadet 738-0143

SCREW-SHLD .498 DIA x .340

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 756-0344

PULLEY

$75.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0158

WASHER-LOCK-5/8

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 712-0221

NUT-HEX INS L-5/8-18

$

$

Not available

27

Cub Cadet 05510

BRACKET ASSY-BRAKE
(Superseded to 05510A)

$

$

Not available

28

Cub Cadet 738-0129

SCREW-SHLD .498 DIA x 2.005

$10.99

$

In Stock, only 1 left!

0

29

Cub Cadet 756-0243

PULLEY-V-1/2 ID x 10.0 OD

$88.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 754-0194

BELT-V 1/2 x 45
(Superseded to 954-0194)

$29.99

$

In Stock, only 1 left!

0

31

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.49

$

In Stock, Qty 7

0

32

Cub Cadet 756-0240

PULLEY-IDLER-FLAT-3.00

$

$

Not available

33

Cub Cadet 05531

LINK ASSY-BRAKE

$

$

Not available

34

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.49

$

In Stock, Qty 7

0

35

Cub Cadet 756-0240

PULLEY-IDLER-FLAT-3.00

$

$

Not available

36

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA x .75

$4.49

$

In Stock, only 4 left!

0

37

Cub Cadet 738-0282

SCREW-SHLD .625 DIA x 2.75

$

$

Not available

38

Cub Cadet 750-0227

SPACER

$

$

Currently unavailable

39

Cub Cadet 05493

BRACKET ASSY-BLOWER IDLER

Variations

Cub Cadet 05493-0637

BRACKET ASSEMBLY-BLOWER IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 747-0149

ROD-AUG CLUTCH

$

$

Currently unavailable

41

Cub Cadet 710-0191

SCREW 3/8-24 x 1.25 GR5

$4.49

$

In Stock, Qty 8

0

42

Cub Cadet 736-0217

WASHER-HDL 3/8

$3.99

$

In Stock, Qty 13

0

43

Cub Cadet 07386

WASHER-FL

$

$

Not available

44

Cub Cadet 756-0241B

PULLEY-ENGINE

$92.99

$

In Stock, only 1 left!

0

45

Cub Cadet 754-0131

BELT-3V-35.5
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 7

0

46

Cub Cadet 710-0237

SCREW-HEX 5/16-24 x .62

$4.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 736-0242

WASHER-BELL .337 x .867 x .057

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 05495

BRACKET ASSY-DR IDLER

$

$

Currently unavailable

49

Cub Cadet 738-0281

SCREW-SHLD .625 DIA x .163

$9.99

$

In Stock, only 1 left!

0

50

Cub Cadet 736-0219

WASHER-BELL .3/8ID x 1.12OD x .030
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

51

Cub Cadet 736-0117

WASHER-FL-.385 ID x .62 OD x .033
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

52

Cub Cadet 737-0130

NIPPLE-PIPE
(Superseded to 737-0298)

$11.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 737-0132

CAP-HEX PIPE THD

$10.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 736-0264

WASHER-FL-.344 x .62

$6.49

$

In Stock, only 2 left!

0

55

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 725-0954

KEY-STARTER-TEC
(Superseded to TC-35062)

Note: (Not Shown)

$3.99

$

In Stock, only 2 left!

0
