1028 (31AE660G022) - Cub Cadet 28" Gold Series Snow Thrower (2001) Belt Drive Parts Diagram

28" Gold Series Snow Thrower

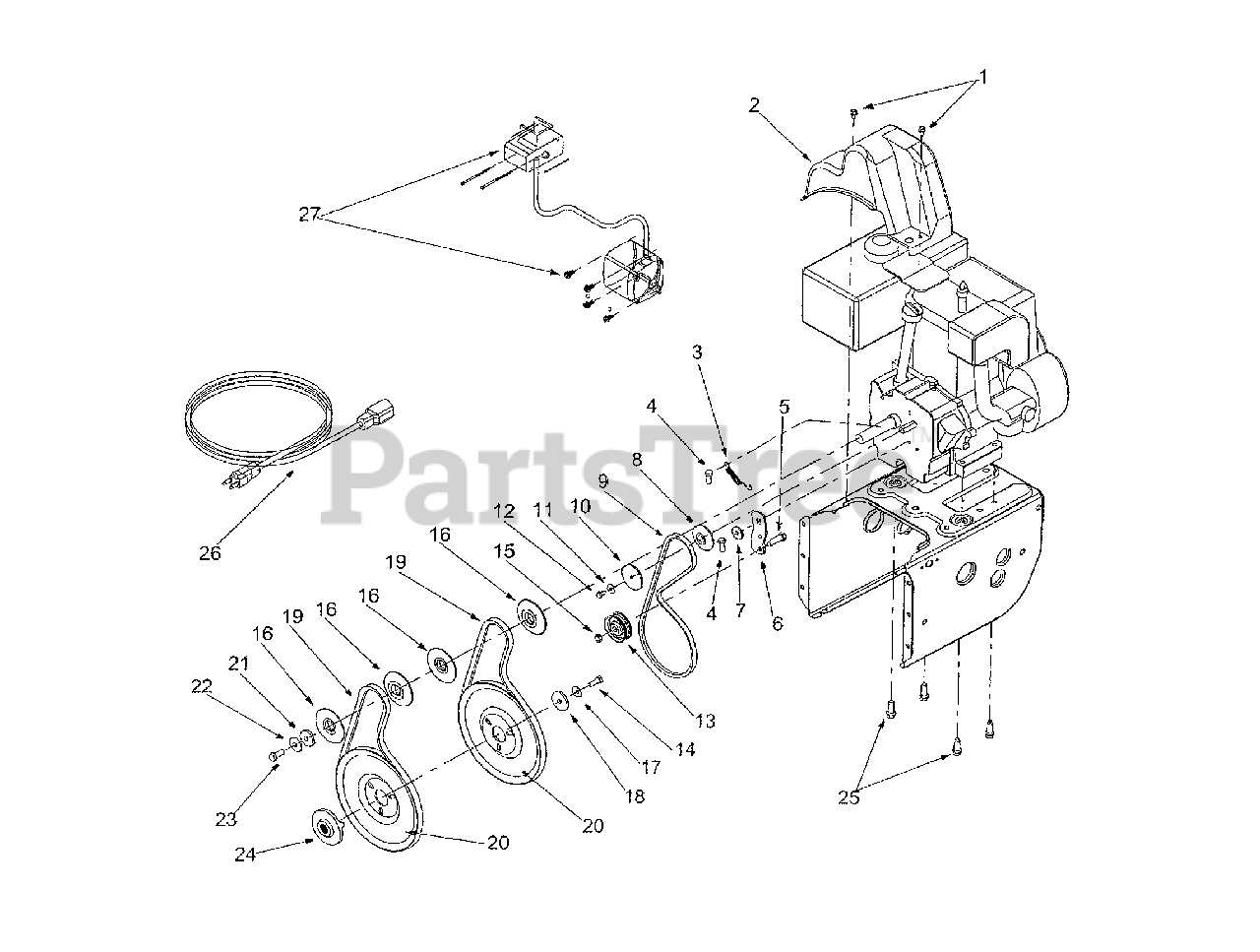

Belt Drive Parts Diagram

  • Title
1

Cub Cadet 710-1652

Hex Washer Screw 1/4-20 x .625

$3.52

$

In Stock, Qty 20+

0

2

Cub Cadet 731-1324

Belt Cover

$17.63

$

In Stock, Qty 20+

0

3

Cub Cadet 732-0710

Extension Spring
(Superseded to 932-0710)

$6.32

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0627

Hex Screw 5/16-24 x .75

$3.39

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3005

Hex Cap Screw 3/8-16 x 1.25

$3.30

$

In Stock, Qty 20+

0

6

Cub Cadet 05896A

Drive Clutch Idler Bracket

Variations

Cub Cadet 05896A-0637

BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 748-0234

Shoulder Spacer

$3.57

$

In Stock, Qty 17

0

8

Cub Cadet 756-0987

Pulley Half
(Superseded to 956-0987)

$22.53

$

Usually ships in 5-10 days

0

9

Cub Cadet 754-0346

V-Belt
(Superseded to 954-0346)

$28.13

$

In Stock, Qty 20+

0

10

Cub Cadet 756-0986

Pulley Half

$

$

Not available

11

Cub Cadet 736-0270

Bell Washer

$3.31

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0230

Hex Cap Screw 1/4-28 x .50

$

$

Not available

13

Cub Cadet 756-0313

Flat Idler

$22.34

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1245

Lock Hex Cap Screw 5/16-24

$6.65

$

In Stock, only 1 left!

0

15

Cub Cadet 712-0181

Lock Jam Nut 3/8-16
(Superseded to 912-0181)

$

$

Not available

16

Cub Cadet 756-0569

Pulley Half

$8.69

$

In Stock, Qty 10

0

17

Cub Cadet 736-0242

Bell Washer

$3.45

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0505

Flat Washer

$5.21

$

In Stock, only 4 left!

0

19

Cub Cadet 754-0430A

Belt
(Superseded to 954-0430C)

$27.94

$

In Stock, Qty 20+

0

20

Cub Cadet 756-0967

Auger Pulley

$48.14

$

Usually ships in 5-10 days

0

21

Cub Cadet 736-0247

Flat Washer 3/8 x 1.25 OD

$8.05

$

In Stock, Qty 8

0

22

Cub Cadet 736-0331

Bell Washer

$3.20

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0696

Hex Cap Screw 3/8-24

$5.48

$

In Stock, Qty 6

0

24

Cub Cadet 748-0360

Adapter Pulley
(Superseded to 948-0360)

$18.31

$

In Stock, Qty 7

0

25

Cub Cadet 710-0654A

Hex Screw 3/8-16 x 1.0

$3.45

$

In Stock, Qty 20+

0

26

Cub Cadet 629-0071

Extension Cord
(Superseded to 929-0071B)

$19.44

$

In Stock, Qty 20+

0

27

Cub Cadet OEM-390-987

Electric Start
(Superseded to TC-33329F)

$296.98

$

Usually ships in 8-14 days

0
