1028 (31AH7L74766) - Troy-Bilt Storm Tracker 28" Track Drive Snow Thrower (2005-2) Engine Drive Parts Diagram

Storm Tracker 28" Track Drive Snow Thrower

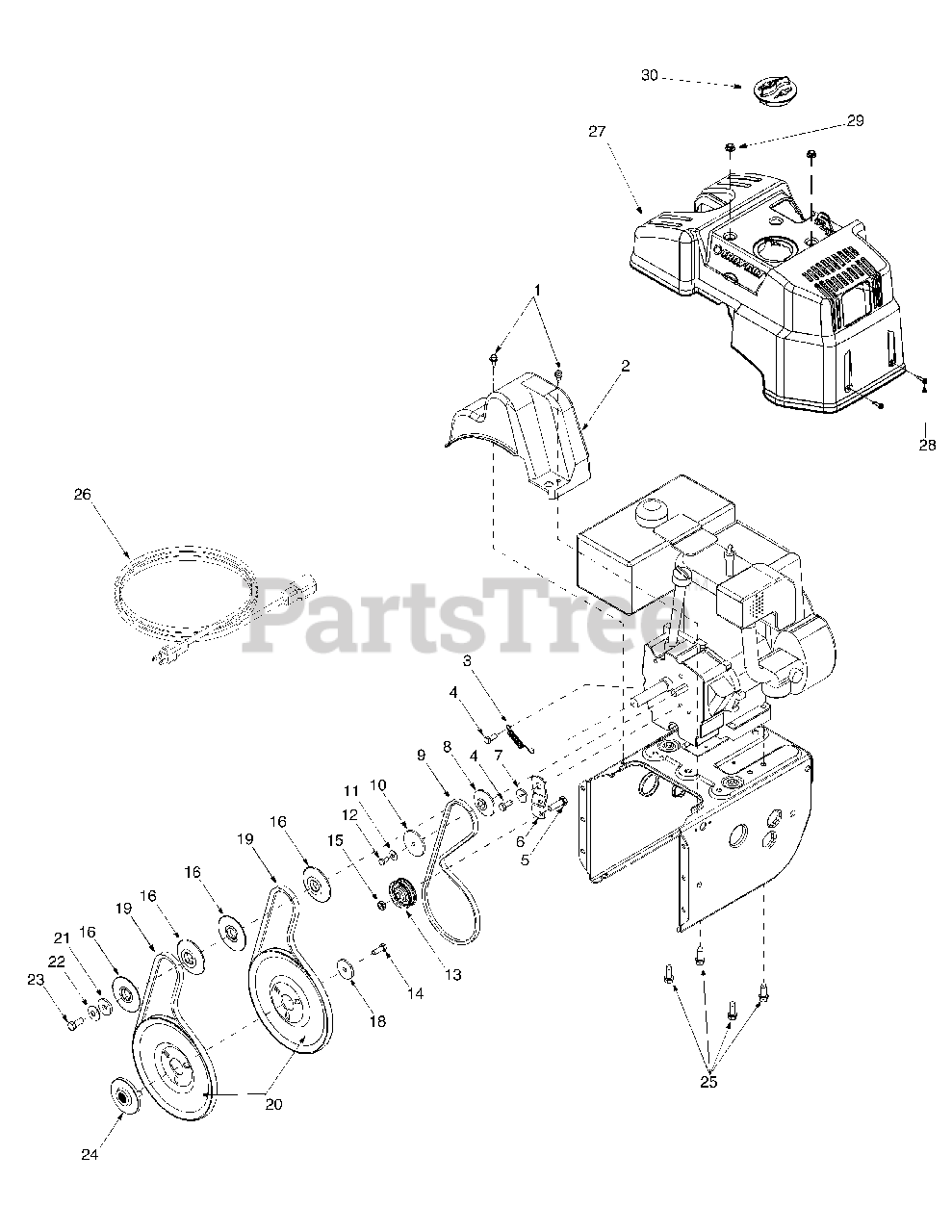

Engine Drive Parts Diagram

  • Title

1

Troy-Bilt 710-1652

Hex Washer Screw, 1/4-20 x.625

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 731-1324

Belt Cover

$20.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 732-0710

Extension Spring
(Superseded to 932-0710)

$6.99

$

In Stock, Qty 12

0

4

Troy-Bilt 710-0627

Hex Screw, 5/16-24 x.75

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

6

MTD 05896A

Drive Clutch Idler Bracket

Variations

Troy-Bilt 05896A-0637

BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

7

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

8

Troy-Bilt 756-0987

Pulley Half
(Superseded to 956-0987)

$

$

Not available

9

Troy-Bilt 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 756-0986

Pulley Half

$

$

Not available

11

Troy-Bilt 736-0270

Bell Washer

$3.99

$

In Stock, Qty 13

0

12

Troy-Bilt 710-0230

Hex Cap Screw, 1/4-28 x.50

$

$

Not available

13

Troy-Bilt 756-0313

Flat Idler

$24.99

$

In Stock, Qty 8

0

14

Troy-Bilt 710-1245B

Lock Hex Cap Screw, 5/16-24

$7.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 712-0181

Lock Jam Nut, 3/8-16

$3.99

$

In Stock, Qty 5

0

16

Troy-Bilt 756-0569

Pulley Half

$10.99

$

In Stock, Qty 5

0

18

Troy-Bilt 736-0505

Flat Washer

$5.99

$

In Stock, Qty 6

0

19

Troy-Bilt 754-0430B

Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 756-0967

Auger Pulley

$52.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 736-0247

Flat Washer, 3/8 x 1.25 OD

$8.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-0696

Hex Cap Screw, 3/8-24

$6.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 748-0360

Adapter Pulley
(Superseded to 948-0360)

$21.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 710-0654A

Hex Screw, 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

26

Troy-Bilt 629-0071

Extension Cord
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 731-04049B

Engine Shroud

$

$

Currently unavailable

28

Troy-Bilt 710-04082

Screw, #10-16 x.75

$

$

Not available

29

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 684-04011

Spark Plug Cap

$15.99

$

Usually ships in 3-6 days

0
