1028 E (1695808) - John Deere 28" Snow Thrower (2010) Auger Housing Group Parts Diagram

28" Snow Thrower

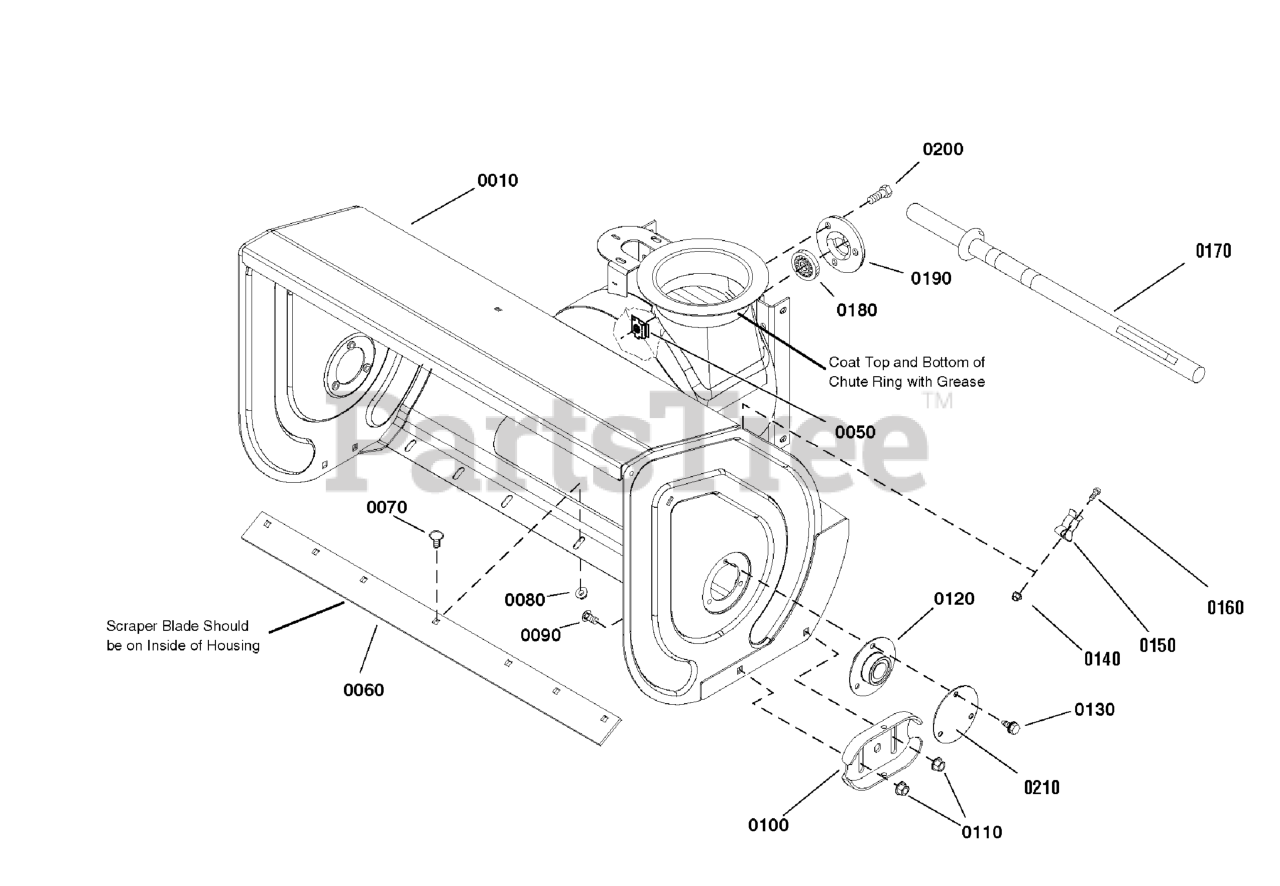

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1738252FYP

AUGER HOUSING ASSEMBLY, 28"
(Superseded to 1687542YP)

$501.99

$

Usually ships in 2-12 days

0

0050

Murray 1930659SM

RETAINER, Nut, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

0060

Murray 1709947BMYP

BLADE, Scraper, 28

$45.99

$

In Stock, only 1 left!

0

0070

Murray 1960699SM

BOLT, Carriage, 5/16-18 x 5/8, G5
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

0080

Murray 1935048SM

NUT, Hex Flange Two Way Locking, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0090

Murray 1960711SM

BOLT, Carriage, 3/8-16 x 3/4, G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1727854BMYP

SKID SHOE

$16.99

$

In Stock, only 3 left!

0

0110

Murray 1960687SM

NUT, Hex Flange, 3/8-16, ESNA
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0120

Murray 1733103SM

BEARING, Flange 1-3/8 ID x 3-3/4 OD

$11.99

$

In Stock, only 2 left!

0

0130

Murray 1931202SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 17

0

0140

Murray 15X146MA

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0150

Murray 1736620YP

CLAMP, Spring, Snow Brush

$6.49

$

In Stock, only 1 left!

0

0160

Murray 1960569SM

SCREW, Truss Head, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0170

Murray 1736094YP

STICK, Cleanout Brush, 22-1/2

$34.99

$

In Stock, only 2 left!

0

0180

Murray 2108202SM

BEARING, Ball, 3/4 ID x 1-3/4 OD x 5/8

$11.99

$

In Stock, Qty 20+

0

0190

Murray 1665982SM

RETAINER, Bearing

$6.99

$

In Stock, only 4 left!

0

0200

Murray 1960738SM

CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

0210

Murray 1734932BMYP

COVER, Bushing

$11.99

$

In Stock, only 3 left!

0
