103 (190-103-000) - Yard-Man Twin Bagger General Assembly Parts Diagram

Twin Bagger

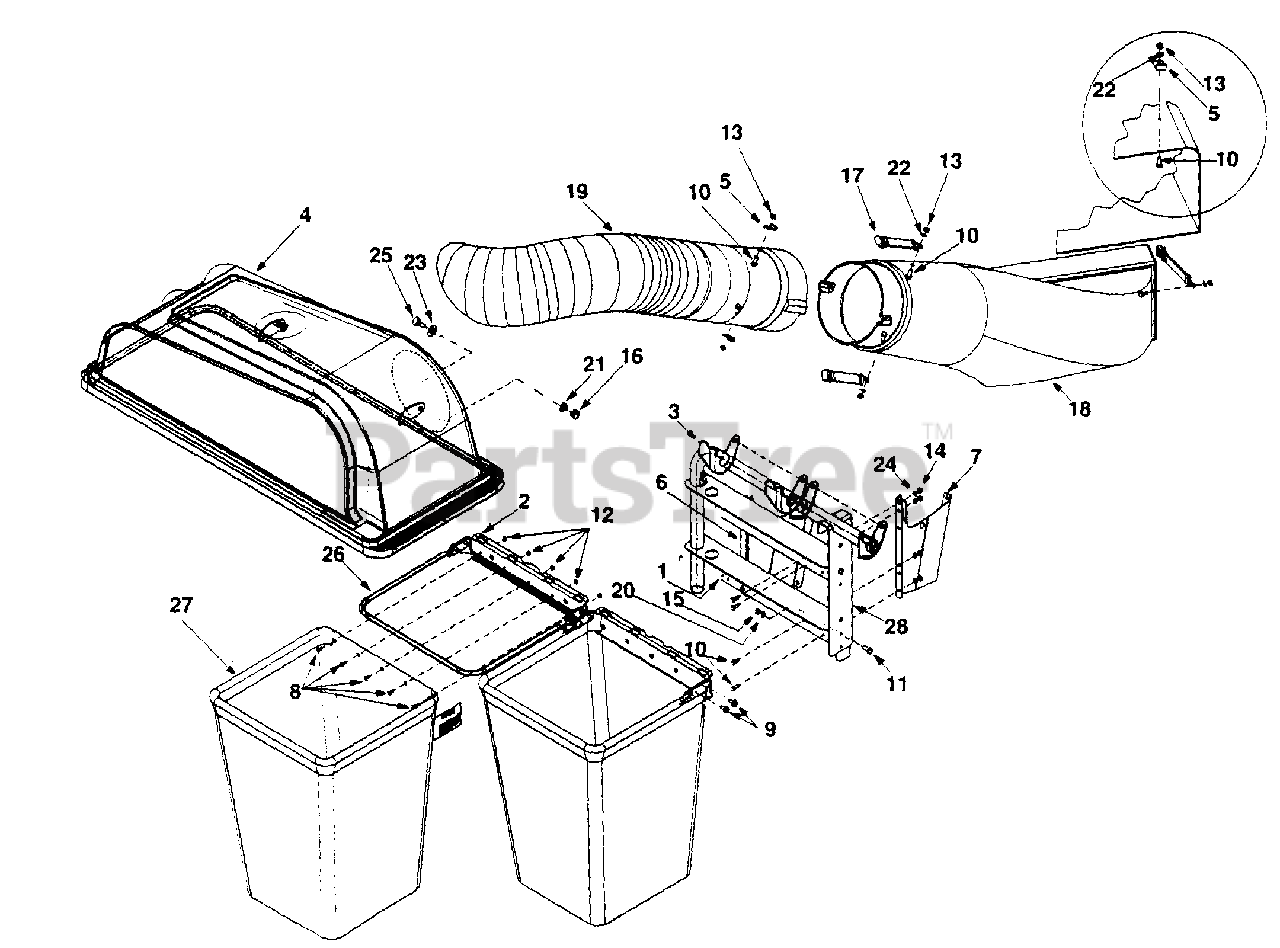

General Assembly Parts Diagram

  • Title

1

Cub Cadet 16587B

Catcher Support Tube Mtg. Brkt.
(Superseded to 16587D-0637)

Variations

Cub Cadet 16587B-0637

Mounting Bracket - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 16591A

Hanger Bracket: Bag Frame
(Superseded to 16591A-0637)

Variations

Cub Cadet 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 16592

Catcher Support Tube Assembly
(Superseded to 16592-0637)

Variations

Cub Cadet 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$180.99

$

Usually ships in 3-6 days

0

$180.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 16594A

Cover Assembly

Note: Model 063 Only; See "Grass Catcher Cover Assembly" Parts List & Illustration for complete breakdown.

$

$

Not available

Cub Cadet 631-0007

Cover Assembly

Note: Model 103 Only; See "Grass Catcher Cover Assembly" Parts List & Illustration for complete breakdown.

$

$

Not available

5

Cub Cadet 16606

Retainer Hook Bracket
(Superseded to 96606)

$6.99

$

In Stock, Qty 14

0

6

Cub Cadet 16610C

Support Bracket: LH

$

$

Not available

7

Cub Cadet 16611C

Support Bracket: RH
(Superseded to 16611C-0637)

Variations

Cub Cadet 16611C-0637

Support Bracket, RH - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0473

Mach. Screw: #10-24 X 0.5"

$3.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-0604

Screw, TT:5/16-18 X 0.625"
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0751

Hex Bolt: 1/4-20 X 0.620" Gr. 5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3008

Hex Bolt: 511 6-18 X 0.75" Gr. 5

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0272

Hex Sems Nut: 10-24

$3.99

$

In Stock, only 1 left!

0

13

Cub Cadet 712-0324

Hex Lock Nut

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3006

Hex Nut: Gr. 5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3010

Hex Nut: 5/16-18

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3017

Hex Nut: 3/8-16 Gr. 8

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 723-0383

Retainer Strap Assembly
(Superseded to 923-0383)

$14.99

$

In Stock, Qty 13

0

18

Cub Cadet 731-0827A

Discharge Chute
(Superseded to 731-0827D)

Note: Model 063 Only

$133.99

$

Usually ships in 3-6 days

0

Cub Cadet 731-0925A

Discharge Chute
(Superseded to 731-0925C)

Note: Model 103 Only

$151.99

$

In Stock, only 2 left!

0

19

Cub Cadet 731-0899A

Chute Tube
(Superseded to 731-0899E)

Note: Model 063 Only

$103.99

$

In Stock, only 3 left!

0

Cub Cadet 731-0926

Chute Tube
(Superseded to 731-0926B)

Note: Model 103 Only

$132.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0119

Lock Washer: 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0169

Lock Washer

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0175

Spring Washer
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

23

Cub Cadet 736-0255

Bell Washer

Note: Model 063 Only

$4.49

$

In Stock, only 3 left!

0

Cub Cadet 736-0253

Bell Washer

Note: Model 103 Only

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0329

Lock Washer: 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

25

Cub Cadet 738-0380

Shoulder Screw

$7.49

$

In Stock, Qty 20+

0

26

Cub Cadet 749-0701A

Frame Tube
(Superseded to 749-0701A-0637)

Variations

Cub Cadet 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 764-0221

Catcher Bag
(Superseded to 964-0221)

$70.99

$

In Stock, Qty 20+

0

28

Cub Cadet 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

Cub Cadet 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0
