1030 (133B582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1993) B&S 10.5 HP Crankcase, Crankshaft, and Piston Ass'y Parts Diagram

Rear-Engine Riding Mower Engine

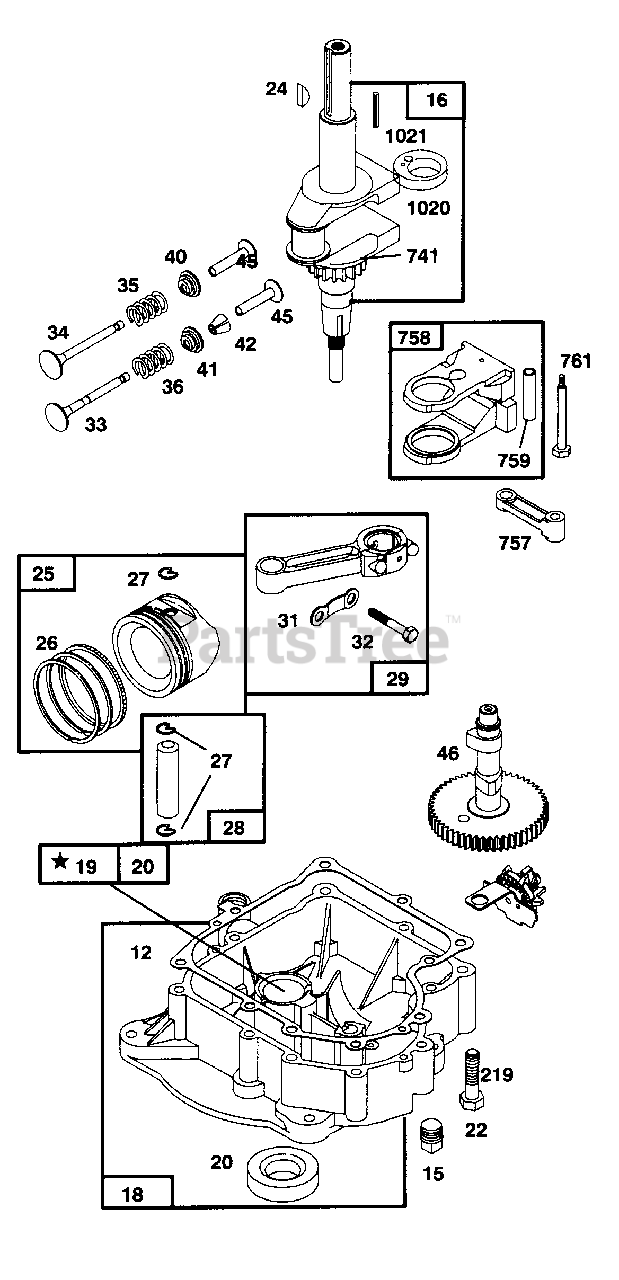

B&S 10.5 HP Crankcase, Crankshaft, and Piston Ass'y Parts Diagram

  • Title

12

Cub Cadet BS-271702

Gasket--Crankcase Cover (1/64" Thick)
(Superseded to BS-271702S)

$10.99

$

In Stock, Qty 5

0

Cub Cadet BS-270915

Gasket--Crankcase Cover (.005" Thick)

$9.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-270916

Gasket--Crankcase Cover (.009" Thick)

$9.49

$

In Stock, only 1 left!

0

15

Cub Cadet BS-94239

Plug--Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

16

Cub Cadet BS-491647

Crankshaft

Note: Order Part No. BS-94196 For Timing Gear Key

$

$

Not available

18

Cub Cadet BS-391784

Base--Engine

$288.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-490666

Bushing--Sump

$

$

Currently unavailable

20

Cub Cadet BS-291675

Seal--Oil
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-93585

Screw--Base Mtg. Sem

$

$

Not available

24

Cub Cadet BS-222698

Key--Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-394661

Piston Assy. (Std.)
(Superseded to BS-499284)

$84.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394662

Piston Assy. (.010" O.S.)
(Superseded to BS-499288)

$73.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394663

Piston Assy. (.020" O.S.)

$

$

Not available

Cub Cadet BS-394664

Piston Assy. (.030" O.S.)

$

$

Not available

26

Cub Cadet BS-391780

Ring Set--Piston (Std.)
(Superseded to BS-499996)

Note: For Chrome Ring Set (Standard Size) Order Part No. BS-392331

$53.99

$

In Stock, only 4 left!

0

Cub Cadet BS-391781

Ring Set--Piston (.010" O.S.)

Note: For Chrome Ring Set (Standard Size) Order Part No. BS-392331

$

$

Not available

Cub Cadet BS-391782

Ring Set--Piston (.020" O.S.)

Note: For Chrome Ring Set (Standard Size) Order Part No. BS-392331

$

$

Not available

Cub Cadet BS-391783

Ring Set--Piston (.030" O.S.)

Note: For Chrome Ring Set (Standard Size) Order Part No. BS-392331

$

$

Not available

27

Cub Cadet BS-260924

Lock--Piston Pin

$

$

Not available

28

Cub Cadet BS-299691

Pin Assembly--Piston (Standard)

$17.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391286

Pin Ass'y.--Piston (.005" O.S.)

$

$

Currently unavailable

29

Cub Cadet BS-490348

Rod Assembly--Connecting

Note: For Conn. Rod With (.020" Undersize) Crankpin Bore--Order No. BS-490469

$50.99

$

In Stock, only 2 left!

0

31

Cub Cadet BS-222299

Lock--Screw

$

$

Not available

32

Cub Cadet BS-92909

Screw--Connecting Rod

$

$

Not available

33

Cub Cadet BS-261185

Valve--Exhaust

$

$

Not available

34

Cub Cadet BS-261462

Valve--Intake

$

$

Not available

35

Cub Cadet BS-65906

Spring--Intake Valve

$

$

Not available

36

Cub Cadet BS-26828

Spring--Exhaust Valve

$

$

Not available

40

Cub Cadet BS-221596

Retainer--Intake Valve
(Superseded to BS-690656)

$

$

Not available

41

Cub Cadet BS-292260

Rotocoil--Exhaust Valve
(Superseded to BS-691939)

$27.99

$

In Stock, only 1 left!

0

42

Cub Cadet BS-93630

Retainer--Exhaust Valve Rotocoil
(Superseded to BS-494553)

$7.99

$

In Stock, only 1 left!

0

45

Cub Cadet BS-262248

Tappet--Valve

$

$

Not available

46

Cub Cadet BS-212897

Gear--Cam

$

$

Not available

219

Cub Cadet BS-490815

Oil Slinger, Gov. Gear Assembly
(Superseded to BS-691968)

$37.99

$

In Stock, Qty 12

0

741

Cub Cadet BS-262135

Gear--Timing
(Superseded to BS-691284)

$10.99

$

Usually ships in 2-12 days

0

757

Cub Cadet BS-212359

Link--Counterweight

$

$

Not available

758

Cub Cadet BS-391373

Counterweight Assy.

$

$

Not available

759

Cub Cadet BS-298909

Pin--Counterweight

$8.99

$

In Stock, only 4 left!

0

761

Cub Cadet BS-93875

Screw--Counterweight

$

$

Currently unavailable

1020

Cub Cadet BS-261242

Eccentric

$

$

Not available

1021

Cub Cadet BS-94160

Pin--Eccentric

$

$

Not available

Cub Cadet BS-493263

Gasket Set

$

$

Not available

Cub Cadet BS-94196

Timing Gear Key.

$

$

Not available

Cub Cadet BS-392331

Chrome Ring Set (Standard Size)

$37.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-490469

.020" Undersize Crankpin Bore

$

$

Not available
