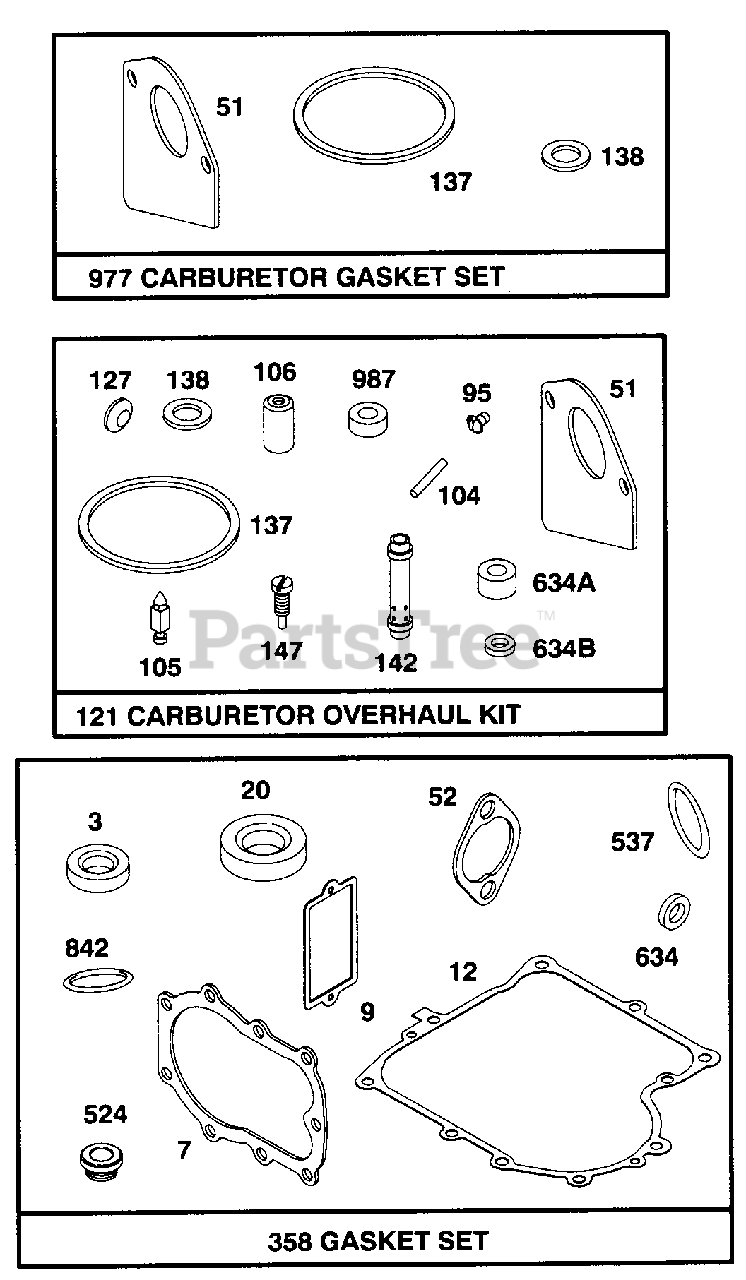

1030 (133B582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1993) B&S 10.5 HP Gasket Set, Carb. Gasket Set & Overhaul Kit Parts Diagram

Rear-Engine Riding Mower Engine

B&S 10.5 HP Gasket Set, Carb. Gasket Set & Overhaul Kit Parts Diagram

  • Title

3

Cub Cadet BS-391086

Seal--Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet BS-271866

Gasket--Cylinder Head
(Superseded to BS-271866S)

$9.49

$

In Stock, Qty 20+

0

9

Cub Cadet BS-27803

Gasket--Valve Cover
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-271702

Gasket--Crankcase Cover (1/64" Thick)
(Superseded to BS-271702S)

$10.99

$

In Stock, Qty 5

0

Cub Cadet BS-270915

Gasket--Crankcase Cover (.005" Thick)

$9.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-270916

Gasket--Crankcase Cover (.009" Thick)

$9.49

$

In Stock, only 1 left!

0

20

Cub Cadet BS-291675

Seal--Oil
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

51

Cub Cadet BS-272465

Gasket--Carburetor (Carb. to Elbow)
(Superseded to BS-692284)

$4.99

$

In Stock, Qty 12

0

52

Cub Cadet BS-270872

Gasket--Carburetor (Elbow to Cylinder)
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 20+

0

95

Cub Cadet BS-94098

Screw--Throttle
(Superseded to BS-691636)

$3.99

$

In Stock, only 2 left!

0

104

Cub Cadet BS-231789

Pin--Float Hinge
(Superseded to BS-690525)

$4.99

$

Usually ships in 2-12 days

0

105

Cub Cadet BS-231855

Valve Ass'y.--Inlet Needle
(Superseded to BS-231855S)

$6.99

$

In Stock, Qty 20+

0

106

Cub Cadet BS-231854

Inlet Valve Seat
(Superseded to BS-690577)

$7.99

$

In Stock, Qty 16

0

121

Cub Cadet BS-495837

Carburetor Overhaul Kit

$98.99

$

Usually ships in 2-12 days

0

127

Plug--Welch

Note: (Sold in Kit Only)

$

$

Not available

137

Cub Cadet BS-281165

Gasket--Float Bowl
(Superseded to BS-281165S)

$4.99

$

In Stock, Qty 20+

0

138

Cub Cadet BS-281164

Washer--Float Bowl Screw
(Superseded to BS-692255)

$5.49

$

In Stock, Qty 17

0

142

Cub Cadet BS-494876

Nozzle--Carburetor

$

$

Currently unavailable

147

Cub Cadet BS-231794

Pilot--Jet

$

$

Not available

358

Cub Cadet BS-493263

Gasket Set

$

$

Not available

524

Cub Cadet BS-68838

Seal--Filler Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

537

Cub Cadet BS-281106

O-Ring--Air Cleaner
(Superseded to BS-691917)

$4.49

$

In Stock, Qty 20+

0

634

Cub Cadet BS-491323

Seal--Governor
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 11

0

634A

Cub Cadet BS-281168

Seal--Choke Shaft

$

$

Currently unavailable

634B

Cub Cadet BS-281167

Washer--Throttle Shaft

$

$

Currently unavailable

842

Cub Cadet BS-270920

Seal--Oil Filler Cap
(Superseded to BS-691870)

$4.49

$

In Stock, only 2 left!

0

977

Cub Cadet BS-494385

Carburetor Gasket Set
(Superseded to BS-697241)

$43.99

$

In Stock, Qty 9

0

987

Cub Cadet BS-281166

Seal--Throttle Shaft
(Superseded to BS-691326)

$5.49

$

In Stock, only 1 left!

0
