1030 (134B582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1994) B&S 10.5 HP Engine Sump, Piston Ass'y, Crankshaft Parts Diagram

Rear-Engine Riding Mower Engine

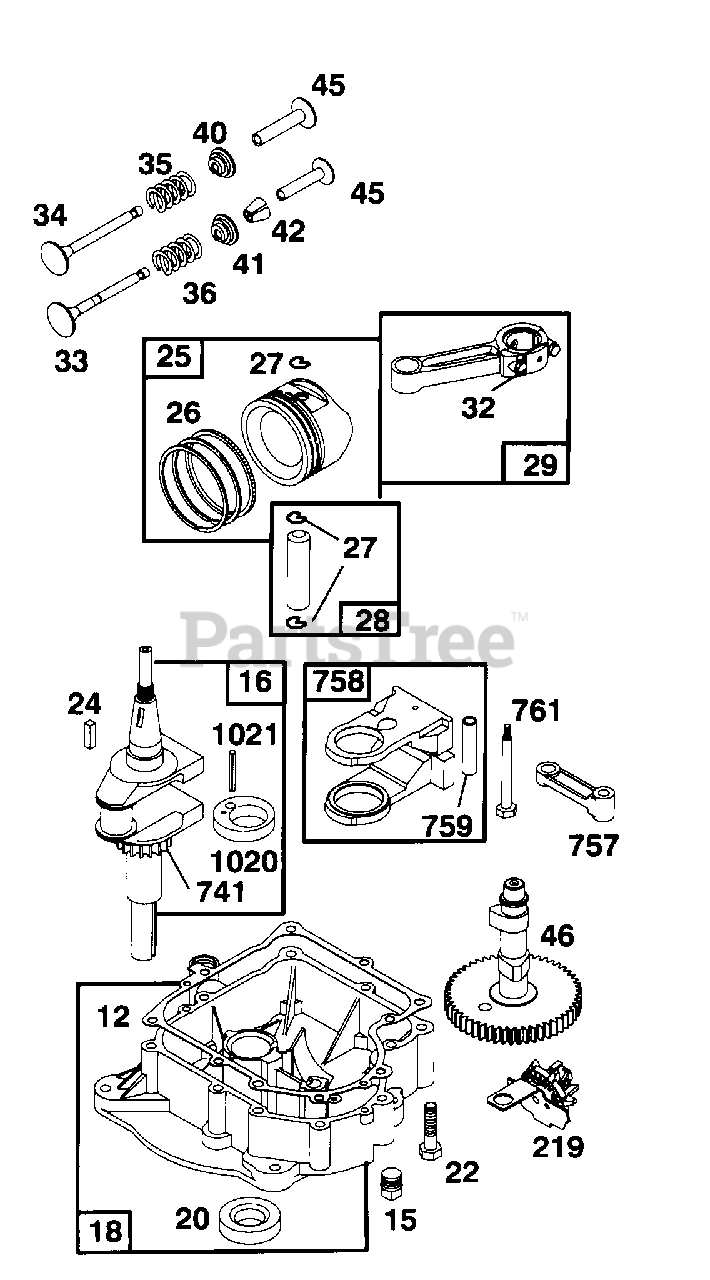

B&S 10.5 HP Engine Sump, Piston Ass'y, Crankshaft Parts Diagram

  • Title

12

Cub Cadet BS-271916

Gasket-Crankcase (1/64" Thick)
(Superseded to BS-692226)

$6.99

$

In Stock, only 3 left!

0

Cub Cadet BS-271997

Gasket-Crankcase (.005" Thick)
(Superseded to BS-692406)

$9.49

$

In Stock, only 1 left!

0

Cub Cadet BS-271996

Gasket-Crankcase (.009" Thick)
(Superseded to BS-692405)

$6.49

$

In Stock, only 1 left!

0

15

Cub Cadet BS-94239

Plug-Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

16

Cub Cadet BS-495162

Crankshaft

Note: For Timing Gear Key Order BS-94196.

$

$

Not available

Cub Cadet BS-94196

Timing Gear Key

$

$

Not available

18

Cub Cadet BS-494238

Sump-Engine

$

$

Not available

20

Cub Cadet BS-291675

Seal-Oil
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-94624

Screw-Sem
(Superseded to BS-692125)

$4.99

$

In Stock, only 2 left!

0

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-394661

Piston Assembly (Standard)
(Superseded to BS-499284)

$84.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394662

Piston Assy. (.010" O.S.)
(Superseded to BS-499288)

$73.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394663

Piston Assy. (.020" O.S.)

$

$

Not available

Cub Cadet BS-394664

Piston Assy. (.030" O.S.)

$

$

Not available

26

Cub Cadet BS-391780

Ring Set (Standard)
(Superseded to BS-499996)

$53.99

$

In Stock, only 4 left!

0

Cub Cadet BS-392331

Ring Set (Chrome Std.)

$37.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391781

Ring Set (.010" O.S.)

$

$

Not available

Cub Cadet BS-391782

Ring Set (.020" O.S.)

$

$

Not available

Cub Cadet BS-391783

Ring Set (.030" O.S.)

$

$

Not available

27

Cub Cadet BS-260924

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-299691

Pin-Piston (Standard)

$17.99

$

In Stock, only 1 left!

0

?39

Cub Cadet BS-391286

Pin-Piston (.005" O.S.)

$

$

Currently unavailable

29

Cub Cadet BS-490348

Rod-Conn.

$50.99

$

In Stock, only 2 left!

0

Cub Cadet BS-490469

Rod-Conn. (.020" Undersize)

$

$

Not available

32

Cub Cadet BS-94671

Screw-Conn. Rod

$

$

Not available

33

Cub Cadet BS-262246

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-262247

Valve-Intake
(Superseded to BS-262247S)

$30.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-65906

Spring-Valve

$

$

Not available

36

Cub Cadet BS-26828

Spring-Valve

$

$

Not available

40

Cub Cadet BS-221596

Retainer-Intake Valve
(Superseded to BS-690656)

$

$

Not available

41

Cub Cadet BS-292260

Rotocoil-Ex. Valve
(Superseded to BS-691939)

$27.99

$

In Stock, only 1 left!

0

42

Cub Cadet BS-494553

Retainer-Rotocoil

$7.99

$

In Stock, only 1 left!

0

45

Cub Cadet BS-262248

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-212897

Gear-Cam

$

$

Not available

219

Cub Cadet BS-490815

Gear-Governor
(Superseded to BS-691968)

$37.99

$

In Stock, Qty 10

0

741

Cub Cadet BS-262932

Gear-Timing
(Superseded to BS-691284)

$10.99

$

Usually ships in 2-12 days

0

757

Cub Cadet BS-213998

Link-Counterweight

$

$

Not available

758

Cub Cadet BS-399891

Counterweight Assy.
(Superseded to BS-692423)

$222.99

$

Usually ships in 2-12 days

0

759

Cub Cadet BS-298909

Pin-Counterweight

$8.99

$

In Stock, only 4 left!

0

761

Cub Cadet BS-94593

Screw-Counterweight

$

$

Not available

1020

Cub Cadet BS-262243

Eccentric

$36.99

$

Usually ships in 2-12 days

0

1021

Cub Cadet BS-94160

Pin-Eccentric

$

$

Not available
