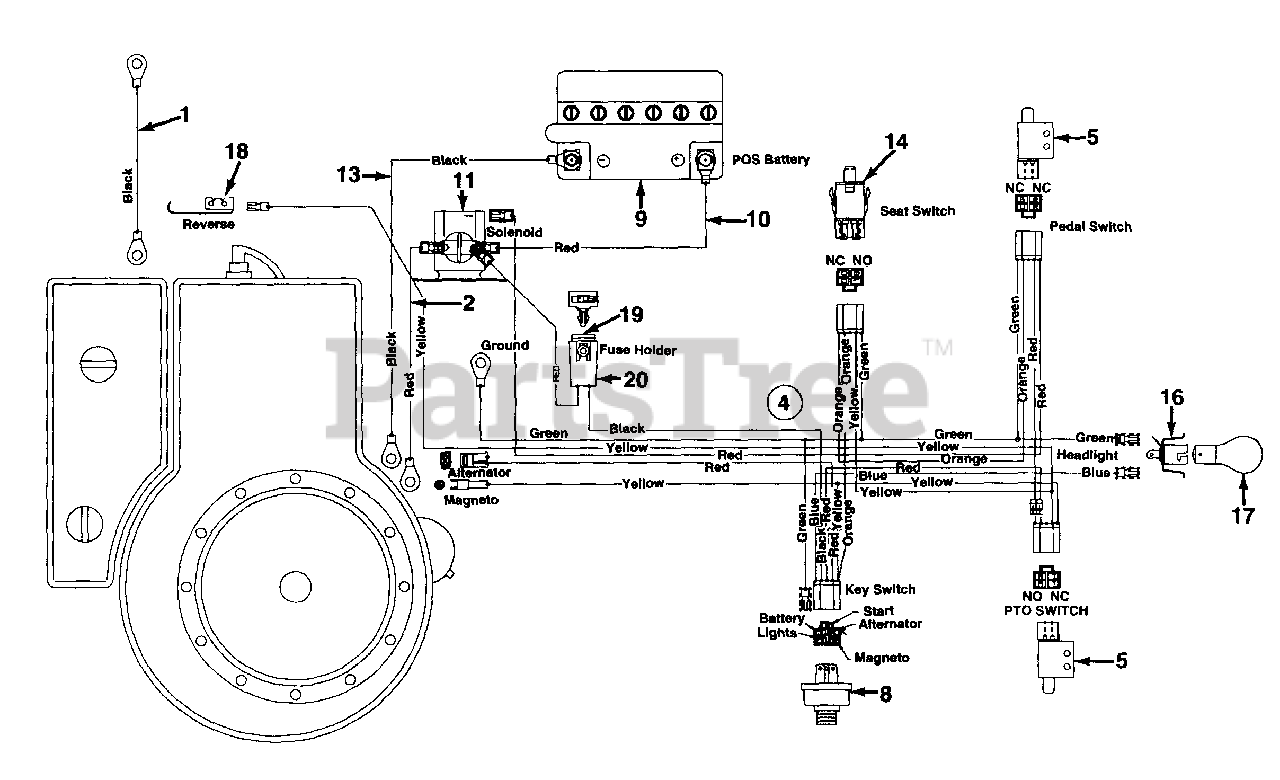

1030 (135B582B100) - Cub Cadet Rear-Engine Riding Mower (1995) Electrical Schematic Parts Diagram

Rear-Engine Riding Mower

Electrical Schematic Parts Diagram

  • Title

1

Cub Cadet 725-0977

Elec. Wire 8 Ga. x 11.5" Lg. (Black)

$

$

Not available

2

Cub Cadet 725-0424

Elec. Wire 8 Ga. x 15.5" Lg. (Red)

$

$

Not available

4

Cub Cadet 725-3227

Wire Harness

$

$

Not available

5

Cub Cadet 725-3169A

Safety Switch
(Superseded to 925-04039)

$25.99

$

In Stock, Qty 15

0

8

Cub Cadet 725-3163

Ignition Switch
(Superseded to 925-3163)

$51.99

$

In Stock, Qty 16

0

9

Cub Cadet 725-1633

Battery 12V
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 725-0929

Elec. Wire 8 Ga. x 22" Lg. (Red w/Boot)

$

$

Not available

11

Cub Cadet 725-1426

Solenoid
(Superseded to 925-1426A)

$28.99

$

In Stock, Qty 20+

0

13

Cub Cadet 725-0979

Elec. Wire 8 Ga. x 17" Lg. (Black)

$

$

Not available

14

Cub Cadet 725-1441

Seat Switch

$

$

Not available

16

Cub Cadet 725-1058A

Headlight Socket
(Superseded to 925-1058A)

$

$

Not available

17

Cub Cadet 725-0963

Lamp
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

18

Cub Cadet 732-0615

Safety Switch

$

$

Not available

19

Cub Cadet 725-1625

Fuse, Automotive Type 7-1/2 Amp.

$8.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 729-0207

Fuse Holder

$

$

Not available

Cub Cadet 729-0209

Fuse Holder Mtg. Clip

Note: (Not Shown)

$

$

Not available

Cub Cadet 725-3237

Positive Term. Boot

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0
