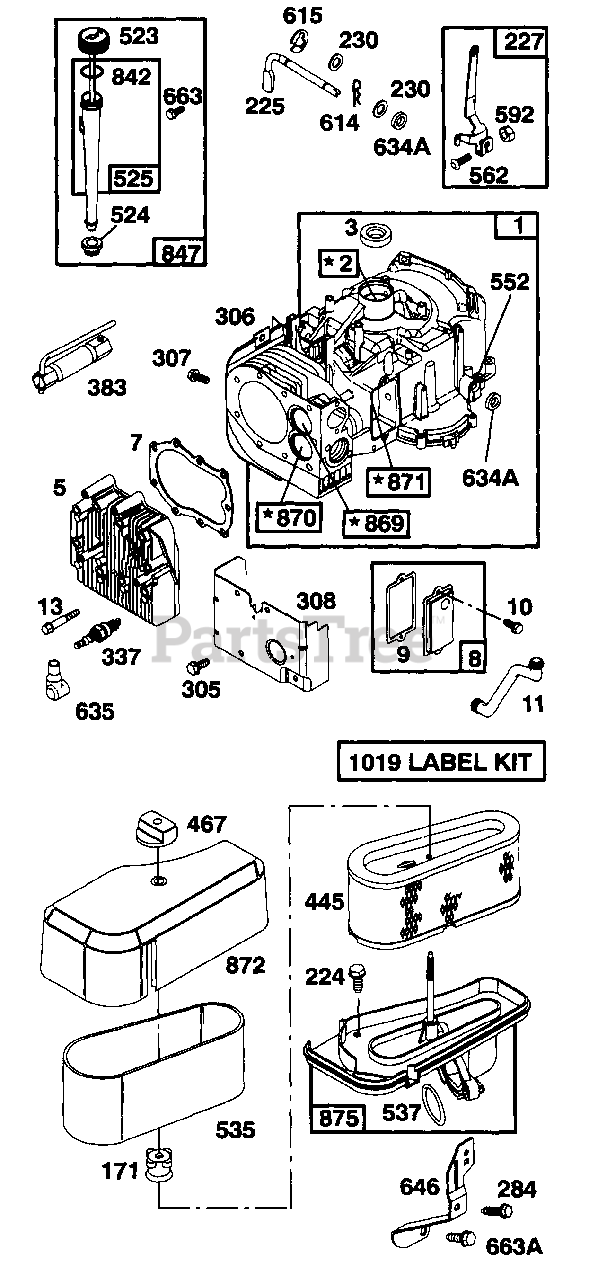

1030 (135B582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1995) Cylinder And Air Cleaner Assemblies Parts Diagram

Rear-Engine Riding Mower Engine

Cylinder And Air Cleaner Assemblies Parts Diagram

  • Title

Cub Cadet BS-496606

Short Block

$

$

Not available

1

Cub Cadet BS-496413

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399265

Bearing-Cylinder
(Superseded to BS-797673)

$19.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-391086

Seal-Oil
(Superseded to BS-391086S)

Note: Included In Gasket Set, P/N BS-494241

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-494240

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-271866

Gasket-Cylinder Head
(Superseded to BS-271866S)

Note: Included In Gasket Set, P/N BS-494241

$9.99

$

In Stock, only 3 left!

0

8

Cub Cadet BS-495735

Breather Assembly

$49.99

$

In Stock, only 2 left!

0

9

Cub Cadet BS-27803

Gasket-Valve Cover
(Superseded to BS-27803S)

Note: Included In Gasket Set, P/N BS-494241

$4.49

$

In Stock, Qty 8

0

10

Cub Cadet BS-94621

Screw-Sem
(Superseded to BS-691666)

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet BS-281246

Tube-Breather
(Superseded to BS-691328)

$16.99

$

In Stock, only 3 left!

0

13

Cub Cadet BS-94622

Screw-Cylinder Head
(Superseded to BS-690904)

$11.99

$

In Stock, only 3 left!

0

225

Cub Cadet BS-231058

Crank-Governor
(Superseded to BS-692012)

$15.99

$

In Stock, only 2 left!

0

227

Cub Cadet BS-493935

Lever Assy.-Governor

$

$

Not available

230

Cub Cadet BS-94742

Washer-Governor Lever
(Superseded to BS-691691)

$4.49

$

In Stock, Qty 5

0

305

Cub Cadet BS-94780

Screw-Hex. Head

$

$

Currently unavailable

306

Cub Cadet BS-224545

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-94623

Screw-Sem

$

$

Not available

308

Cub Cadet BS-491490

Cover-Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark

$3.99

$

In Stock, Qty 20+

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 2 left!

0

523

Cub Cadet BS-495230

Cap-Oil Filler
(Superseded to BS-692014)

$28.99

$

In Stock, only 3 left!

0

524

Cub Cadet BS-68838

Seal-Filler Tube
(Superseded to BS-281370S)

Note: Included In Gasket Set, P/N BS-494241

$8.99

$

In Stock, Qty 12

0

525

Cub Cadet BS-496113

Tube-Oil Filler

$

$

Not available

552

Cub Cadet BS-231597

Bushing-Gov. Crank

$

$

Not available

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex.

$

$

Not available

614

Cub Cadet BS-93306

Pin-Cotter

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$6.49

$

In Stock, only 4 left!

0

634A

Cub Cadet BS-491323

Seal-Governor
(Superseded to BS-692407)

Note: Included In Gasket Set, P/N BS-494241

$8.49

$

In Stock, Qty 7

0

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 9

0

663

Cub Cadet BS-94073

Screw-Hex. Head
(Superseded to BS-691002)

$8.99

$

In Stock, only 2 left!

0

842

Cub Cadet BS-270920

Seal-Oil Filler Cap
(Superseded to BS-691870)

Note: Included In Gasket Set, P/N BS-494241

$4.49

$

In Stock, Qty 6

0

847

Cub Cadet BS-496415

Fill Group-Oil

$52.99

$

In Stock, only 2 left!

0

869

Cub Cadet BS-261463

Seat-Intake Valve
(Superseded to BS-691802)

$

$

Not available

870

Cub Cadet BS-213316

Seat-Exhaust Valve
(Superseded to BS-691844)

$

$

Not available

871

Cub Cadet BS-261961

Guide-Exhaust Valve

$15.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-491254

Label Kit

$

$

Not available

171

Cub Cadet BS-281051

Nut-Air Cleaner Mtg.
(Superseded to BS-691668)

$5.99

$

In Stock, Qty 20+

0

224

Cub Cadet BS-94729

Screw-Air Cleaner Sem

$

$

Not available

284

Cub Cadet BS-94704

Screw-Air Cleaner

$

$

Not available

445

Cub Cadet BS-493910

Cartridge-Air Cleaner
(Superseded to BS-691667)

$30.99

$

In Stock, only 4 left!

0

467

Cub Cadet BS-493903

Knob-Air Cleaner
(Superseded to BS-691668)

$5.99

$

In Stock, Qty 20+

0

535

Cub Cadet BS-272477

Element-Air Cleaner
(Superseded to BS-272477S)

$4.49

$

In Stock, Qty 5

0

537

Cub Cadet BS-281106

O-Ring-Air Cleaner
(Superseded to BS-691917)

Note: Included In Gasket Set, P/N BS-494241

$4.49

$

In Stock, Qty 19

0

646

Cub Cadet BS-224546

Brace-Air Cleaner

$

$

Not available

663A

Cub Cadet BS-94620

Screw-Hex. Hd.
(Superseded to BS-691693)

$3.99

$

In Stock, only 2 left!

0

872

Cub Cadet BS-281105

Cover-Air Cleaner
(Superseded to BS-691324)

$61.99

$

Usually ships in 2-12 days

0

875

Cub Cadet BS-496368

Body-Air Cleaner

$

$

Not available

Cub Cadet BS-494241

Gasket Set

Note: Includes Ref Nos 3, 7, 9, 524, 634A, 842 & 537

$40.99

$

In Stock, only 2 left!
