1030 W (316E666H100) - Cub Cadet 30" Snow Thrower (1996) Fan And Housing Parts Diagram

30" Snow Thrower

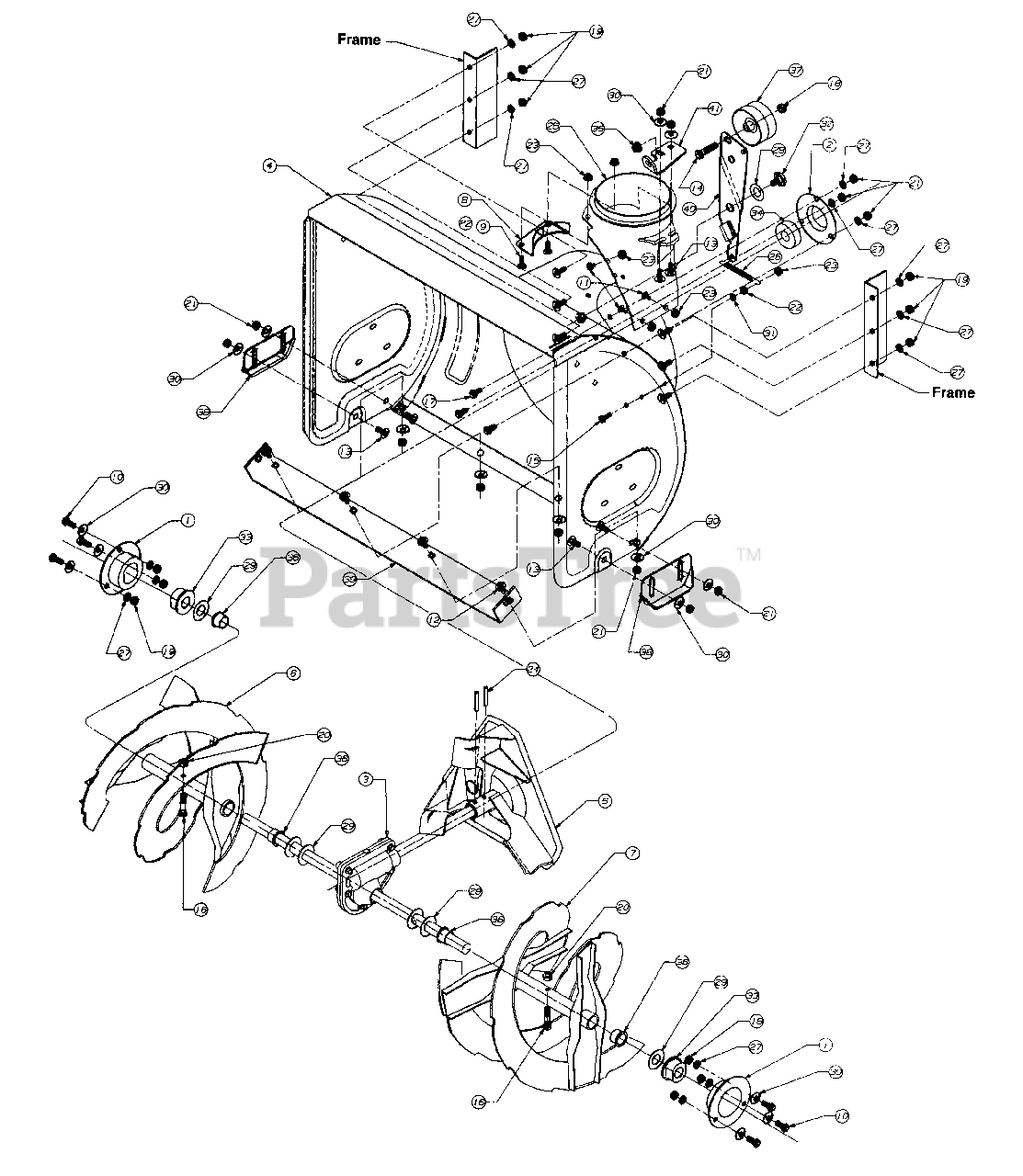

Fan And Housing Parts Diagram

  • Title

1

Cub Cadet 784-5618

Housing, Bearing
(Superseded to 784-5618A-0637)

Variations

Cub Cadet 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 8

0

$12.99

$

In Stock, Qty 8

0

2

Cub Cadet 05931

Housing, Bearing
(Superseded to 05931A)

$9.99

$

In Stock, only 2 left!

0

3

Cub Cadet 618-0120

Gear Assembly (24" Auger)
(Superseded to 918-0414B)

$

$

Not available

Cub Cadet 618-0121

Gear Assembly (26" Auger)
(Superseded to 918-0415B)

$411.99

$

Usually ships in 3-6 days

0

Cub Cadet 618-0160

Gear Assembly (30" Auger)
(Superseded to 918-0417B)

$372.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-0039A

24" Housing Assembly
(Superseded to 684-0039D)

Variations

Cub Cadet 684-0039A-0498

24" HOUSING ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0039A-0629

USE 684-0039D-0629 HOUSING AS - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 684-0039A-0638

24" HOUSING ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0039A-0662

USE 684-0039D-0662 HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0039A-0665

USE 684-0039D-0665 HOUSING AS - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0039A-0687

USE 684-0039D-0665 HOUSING AS - PINE GREEN (0687)

$

$

Not available

$

$

Cub Cadet 684-0040A

26" Housing Assembly
(Superseded to 684-0040D)

Variations

Cub Cadet 684-0040A-0483

USE 684-0040D-0483 HOUSING AS - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0040A-0498

USE 684-0040D-0716 HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0040A-0638

USE 684-0040D-0638 HOUSING AS - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0040A-0662

26" HOUSING ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0040A-0629

USE 684-0040D-0629 HOUSING AS - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 684-0040A-0665

USE 684-0040D-0665 HOUSING AS - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0040A-0667

USE 684-0040D-0667 HOUSING AS - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 684-0040A-0689

USE 684-0040D-0689 HOUSING AS - POLO GREEN (0689)

$

$

Not available

$

$

Cub Cadet 684-0055

30" Housing Assembly

Variations

Cub Cadet 684-0055-0498

30" HOUSING ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0055-0662

30" HOUSING ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

$

$

5

Cub Cadet 684-0065

Fan Asm, Blower 12"
(Superseded to 984-0065-0637)

Variations

Cub Cadet 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$84.99

$

In Stock, only 2 left!

0

Cub Cadet 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$84.99

$

In Stock, only 2 left!

0

$84.99

$

In Stock, only 2 left!

0

6

Cub Cadet 605-5188

Spiral, 24" R.H.
(Superseded to 684-04180-0637)

Variations

Cub Cadet 605-5188-0662

Auger Spiral Assembly, RH 24" - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 605-5188-0688

Auger Spiral Assembly, RH 24" - SPRING GREEN (0688)

$

$

Not available

$

$

Cub Cadet 605-5192

Spiral, 26" R.H.
(Superseded to 684-04182-0637)

Variations

Cub Cadet 605-5192-0638

Spiral Assembly, RH 26" - MTD/TROY-BILT RED (0638)

$178.99

$

Usually ships in 3-6 days

0

Cub Cadet 605-5192-0662

Spiral Assembly, RH 26" - OYSTER GRAY (0662)

$178.99

$

Usually ships in 3-6 days

0

Cub Cadet 605-5192-0665

Spiral Assembly, RH 26" - YARDMAN GREEN (0665)

$178.99

$

Usually ships in 3-6 days

0

$178.99

$

Usually ships in 3-6 days

0

Cub Cadet 605-5248

Spiral, 30" R.H.
(Superseded to 684-04186-0637)

$192.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 605-5189

Spiral, 24" L.H.
(Superseded to 684-04181-0637)

Variations

Cub Cadet 605-5189-0688

Auger Spiral Assembly, LH 24" - SPRING GREEN (0688)

$170.99

$

In Stock, only 1 left!

0

$170.99

$

In Stock, only 1 left!

0

Cub Cadet 605-5193

Spiral, 26" L.H.
(Superseded to 684-04183-0637)

Variations

Cub Cadet 605-5193-0638

Spiral Assembly, LH 26" - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 605-5193-0662

Spiral Assembly, LH 26" - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 605-5193-0665

Spiral Assembly, LH 26" - YARDMAN GREEN (0665)

$

$

Not available

$

$

Cub Cadet 605-5249

Spiral, 30" L.H.
(Superseded to 684-04187-0637)

Variations

Cub Cadet 605-5249-0662

Auger Spiral Assembly, LH 30" - OYSTER GRAY (0662)

$

$

Not available

$

$

8

Cub Cadet 705-5226

Reinforcement, Chute 5.0

Variations

Cub Cadet 705-5226-0498

Chute Reinforcement - OLD CUB YELLOW (0498)

$9.99

$

In Stock, Qty 7

0

Cub Cadet 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$9.99

$

In Stock, Qty 7

0

Cub Cadet 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$9.99

$

In Stock, Qty 7

0

$9.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0167

Bolt, Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0604

Screw, Hex
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0167

Screw, Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0451

Carriage Bolt

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0451

Screw, Carriage

$3.99

$

In Stock, Qty 20+

0

14

Welded to Ref. 100, 40

$

$

Not available

15

Cub Cadet 710-0812

Screw, Hex

$

$

Not available

16

Cub Cadet 710-0890A

Bolt, Shear

$1.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-1087

Screw, Hex
(Superseded to 710-3038)

$4.49

$

In Stock, Qty 5

0

18

Cub Cadet 712-0116

Hex Lock Nut

$4.49

$

In Stock, Qty 7

0

19

Cub Cadet 712-0123

Hex Nut
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

20

Cub Cadet 712-0158

Nut, Hex Lock
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0267

Nut, Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0287

Hex Nut
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet 712-3027

Nut, Lock, Hex, Flanged
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 715-0114

Spring Pin

$8.49

$

In Stock, Qty 9

0

25

Cub Cadet 731-1379

Adapter, Chute
(Superseded to 731-1379D)

$61.99

$

In Stock, only 1 left!

0

26

Cub Cadet 732-0611

Spring
(Superseded to 932-0611)

$6.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0167

Washer, Flat
(Superseded to 936-0167)

$6.49

$

In Stock, Qty 7

0

29

Cub Cadet 736-0188

Washer, Flat, .76 I D. x 1.49 O.D x .06

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0242

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0329

Washer, Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

32

Cub Cadet 738-0281

Screw, Shoulder

$9.99

$

In Stock, only 1 left!

0

33

Cub Cadet 741-0245

Bearing, Flange
(Superseded to 941-0245)

$9.49

$

In Stock, Qty 20+

0

34

Cub Cadet 741-0309

Bearing, Ball
(Superseded to 941-0309)

$69.99

$

In Stock, Qty 7

0

35

Cub Cadet 741-0475

Bushing, Plastic
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 741-0493A

Bushing, Flange
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 756-0178

Idler, Flat

$18.99

$

In Stock, only 4 left!

0

38

Cub Cadet 784-5580

Shoe, Slide

Variations

Cub Cadet 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$22.99

$

In Stock, Qty 7

0

Cub Cadet 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$22.99

$

In Stock, Qty 20+

0

$22.99

$

In Stock, Qty 20+

0

39

Cub Cadet 784-5581A

24" Shave Plate
(Superseded to 790-00120-0637)

Variations

Cub Cadet 784-5581A-0637

Shave Plate, 24" Powder Black - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5581A-0662

Shave Plate, 24" Gray - OYSTER GRAY (0662)

$33.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5581A-0687

Shave Plate, 24" Green - PINE GREEN (0687)

$33.99

$

In Stock, Qty 20+

0

$33.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A

26" Shave Plate
(Superseded to 790-00121-0637)

Variations

Cub Cadet 784-5579A-0629

Shave Plate, 26" Silver - SILVER FLAKE (0629)

$34.99

$

In Stock, Qty 8

0

Cub Cadet 784-5579A-0637

Shave Plate, 26" Powder Black - POWDER BLACK (0637)

$34.99

$

In Stock, Qty 8

0

Cub Cadet 784-5579A-0638

Shave Plate, 26" Red - MTD/TROY-BILT RED (0638)

$34.99

$

In Stock, Qty 8

0

Cub Cadet 784-5579A-0667

Shave Plate, 26" Blue - MIDNIGHT BLUE (0667)

$34.99

$

In Stock, Qty 8

0

Cub Cadet 784-5579A-0689

Shave Plate, 26" Green - POLO GREEN (0689)

$34.99

$

In Stock, Qty 8

0

Cub Cadet 784-5579A-0691

Shave Plate, 26" Black - BLACK JACK (0691)

$34.99

$

In Stock, Qty 8

0

Cub Cadet 784-5579A-0692

Shave Plate, 26" Blue - AGWAY BLUE (0692)

$34.99

$

In Stock, Qty 8

0

$34.99

$

In Stock, Qty 8

0

Cub Cadet 784-5575

Shave Plate
(Superseded to 790-00119-0637)

Variations

Cub Cadet 784-5575-0637

Shave Plate, 30" Powder Black - POWDER BLACK (0637)

$37.99

$

In Stock, Qty 5

0

$37.99

$

In Stock, Qty 5

0

40

Cub Cadet 684-0064

Arm, Auger Idler
(Superseded to 984-0064-0637)

$30.99

$

In Stock, only 3 left!

0

41

Cub Cadet 784-5647

Bracket, Chute Crank
(Superseded to 784-5647-0637)

Variations

Cub Cadet 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 8

0

$13.99

$

In Stock, Qty 8

0
