1030 W (316E666H100) - Cub Cadet 30" Snow Thrower (1996) Wheel Assembly (16 x 6.5) Parts Diagram

30" Snow Thrower

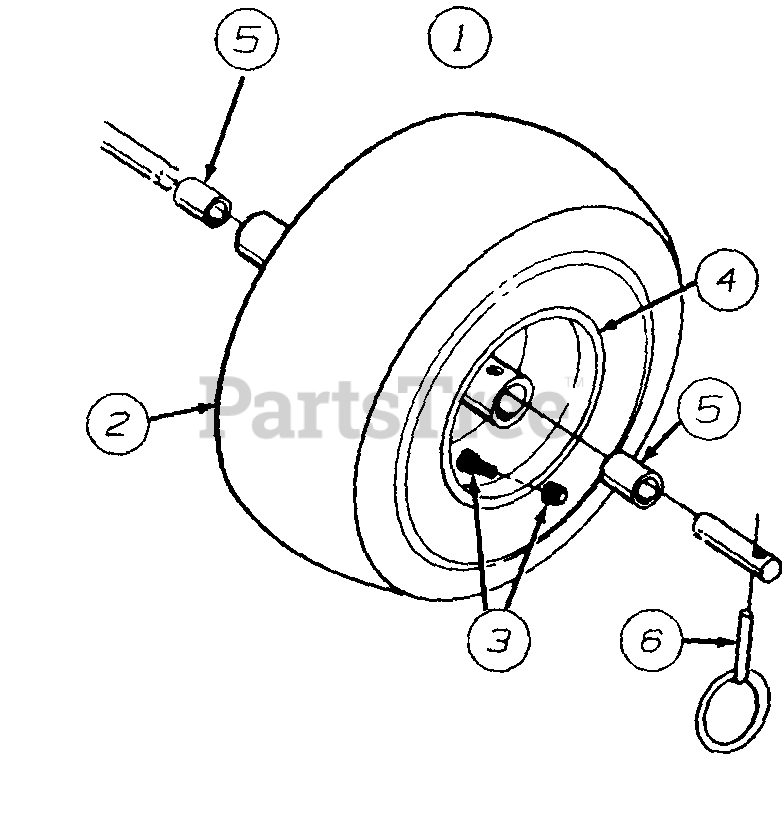

Wheel Assembly (16 x 6.5) Parts Diagram

  • Title

1

Cub Cadet 734-1712

Wheel Ass'y Complete

Variations

734-1712-0911

Cub Cadet 734-1712-0911

USE 934-1712A-0911 WHEEL ASM- - Carlisle Gray (0911)

$

$

Not available

734-1712-0931

Cub Cadet 734-1712-0931

WHEEL ASSEMBLY 16 x 6.5 - Carlisle Beige (0931)

$

$

Not available

734-1712-0941

Cub Cadet 734-1712-0941

WHEEL ASSEMBLY 16 x 6.5 - Carlisle Yellow (0941)

$

$

Not available

$

$

2

Cub Cadet 734-1525

Tire Only

$172.99

$

In Stock, only 2 left!

0

3

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 734-1711

Rim Only

Variations

734-1711-0499

Cub Cadet 734-1711-0499

WHEEL RIM 8.0 x 5.38 x 7.30 (BEIGE) - CUB BEIGE (0499)

$

$

Not available

734-1711-0629

Cub Cadet 734-1711-0629

WHEEL RIM 8.0 x 5.38 x 7.30 - SILVER FLAKE (0629)

$

$

Not available

734-1711-0662

Cub Cadet 734-1711-0662

WHEEL RIM 8.0 x 5.38 x 7.30 - OYSTER GRAY (0662)

$

$

Not available

734-1711-0674

Cub Cadet 734-1711-0674

WHEEL RIM 8.0 x 5.38 x 7.30 - YARDMAN YELLOW (0674)

$

$

Not available

734-1711-0688

Cub Cadet 734-1711-0688

WHEEL RIM 8.0 x 5.38 x 7.30 - SPRING GREEN (0688)

$

$

Not available

$

$

5

Cub Cadet 741-0401

Sleeve Bearing
(Superseded to 941-0401)

$7.99

$

In Stock, Qty 5

0

6

Cub Cadet 714-0143

Klick Pin
(Superseded to 714-0143A)

$6.99

$

In Stock, only 2 left!

0
