10302 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) 4 CYCLE ENGINE, FUEL TANK & BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

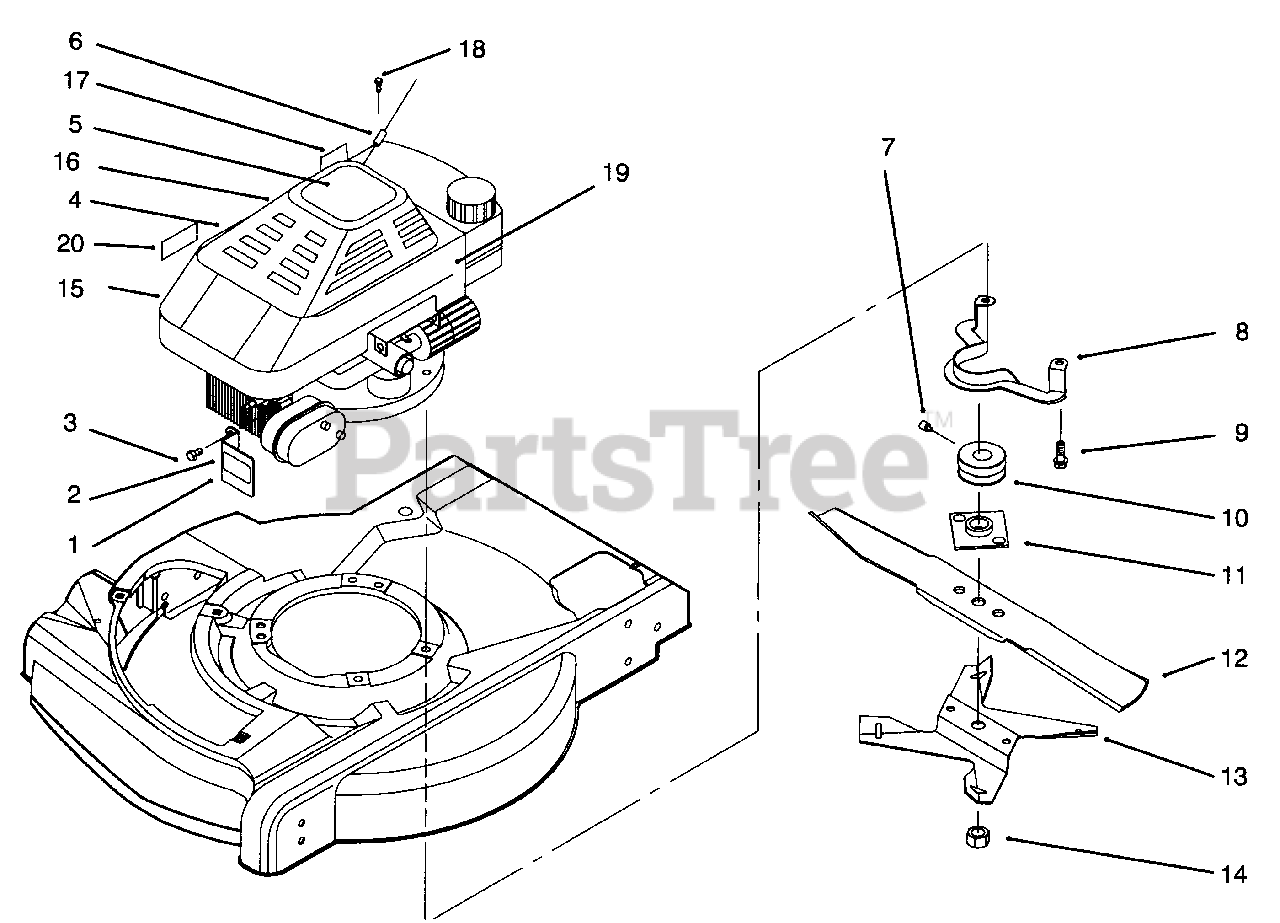

4 CYCLE ENGINE, FUEL TANK & BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 16-2139

Guard-Muffler (Incl. Ref.#2)

$

$

Not available

2

Lawn-Boy 65-2690

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

3

Lawn-Boy 3274-52

Screw

$3.49

$

Usually ships in 3-6 days

0

4

Engine-4 Cycle

$

$

Not available

5

Lawn-Boy 92-8644

Decal-Shroud (Hand Push)

$

$

Not available

Lawn-Boy 92-8643

Decal-Shroud (Self Propelled)

Note: Not Illustrated

$

$

Not available

6

Lawn-Boy 92-1701

Stop-Rope
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 613227

Screw-Set
(Superseded to 105-8875)

$10.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 92-1024

Guide-Belt
(Superseded to 92-1024-03)

$

$

Not available

9

Lawn-Boy 92-1624

Screw-Engine Mount
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 92-6542

Pulley-Engine

$77.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 677525

Plate & Collar Ass'y

$23.99

$

In Stock, Qty 11

0

12

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$29.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$32.99

$

In Stock, Qty 15

0

14

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 7

0

15

Lawn-Boy 92-4855

Shroud-Engine
(Superseded to 16-4319)

$183.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 92-4854

Cover-Recoil

$26.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 92-4851

Decal-Oil

$1.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 92-4852

Screw

$

$

Not available

19

Lawn-Boy 92-4855

Shroud
(Superseded to 16-4319)

$183.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 92-4851

Decal-Oil

$1.99

$

In Stock, only 1 left!

0
