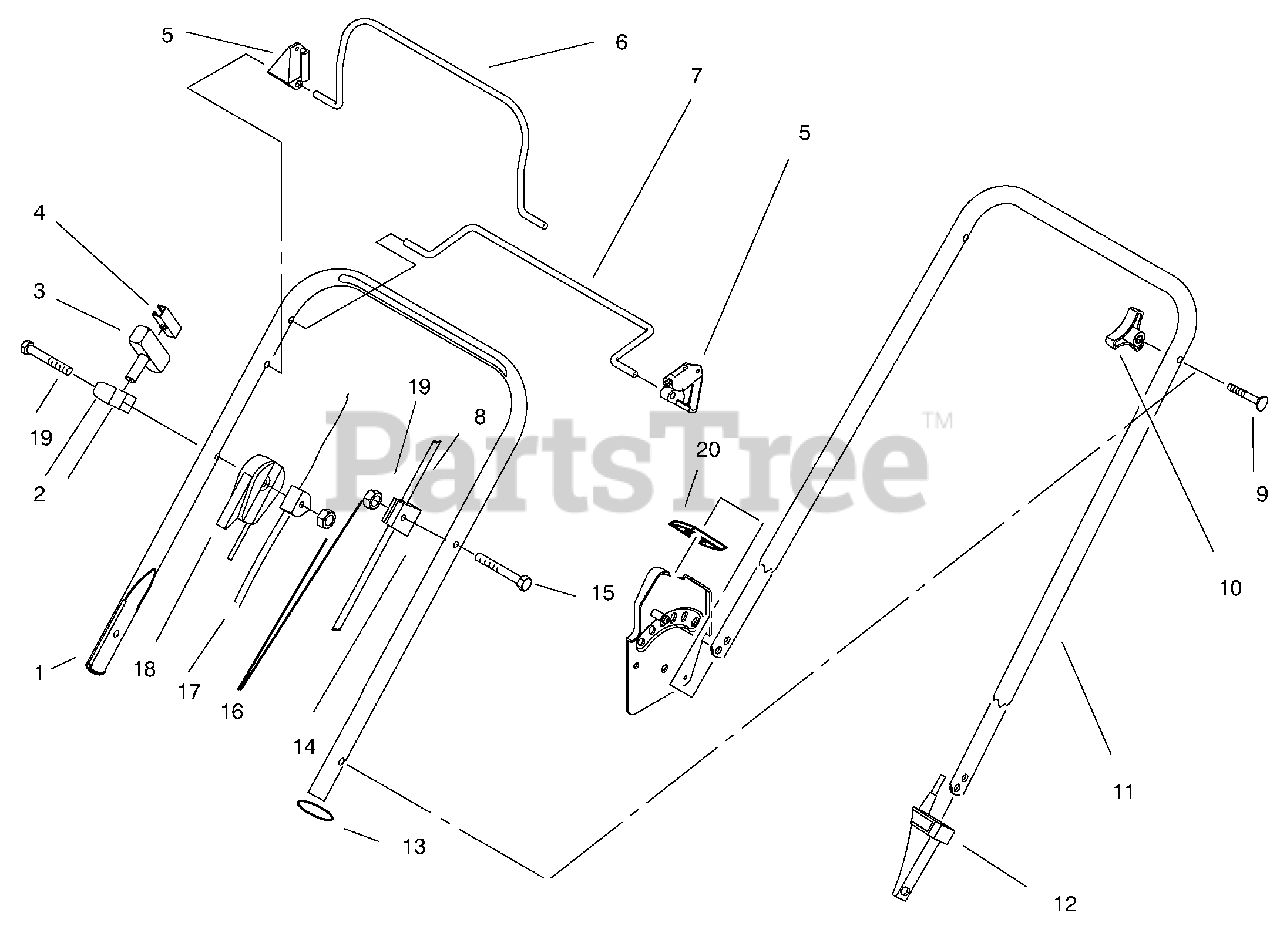

10302 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) HANDLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 93-4185

Handle-Upper

$

$

Not available

2

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 18

0

3

Lawn-Boy 92-4853

Handle-Starter

$8.49

$

In Stock, only 3 left!

0

4

Lawn-Boy 92-5424

Clip-Rope Insert

$1.49

$

In Stock, Qty 5

0

5

Lawn-Boy 92-5412

Stop-Pivot (Qty 1 Model No. 10202)(Qty 2 Model No. 10302)
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 93-4184

Bail-Brake
(Superseded to 93-4184-03)

$34.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 92-1001

Bail-Control (Model No. 10302 Only)
(Superseded to 92-1001-03)

$50.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 92-7726

Cable-Traction
(Superseded to 95-5590)

$29.99

$

In Stock, Qty 13

0

9

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 614243

Knob-Handle
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 614643

Handle-Lower
(Superseded to 614643-05)

$

$

Not available

12

Lawn-Boy 93-7380

Anchor-Cable, (Lower)(Model No. 10302 Only)

$12.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 92-7729

Anchor-Cable, (Upper)(Model No. 10302 Only)

$4.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 92-2266

Screw (Model No. 10302 Only)

$5.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 3296-73

Nut (Qty 1 Model No. 10202)(Qty 2 Model No. 10302)

$5.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 92-9589

Cable-Brake

$81.99

$

In Stock, only 4 left!

0

18

Lawn-Boy 92-1045

Cable-Throttle

$77.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 321-49

Screw

$1.49

$

In Stock, Qty 9

0

20

Lawn-Boy 93-3653

Handle-Guard
(Superseded to 104-1013)

$15.99

$

Usually ships in 3-6 days

0
