10303 (80163) - Snapper 30" Snow Thrower, 10hp Augers, Impeller Parts Diagram

30" Snow Thrower, 10hp

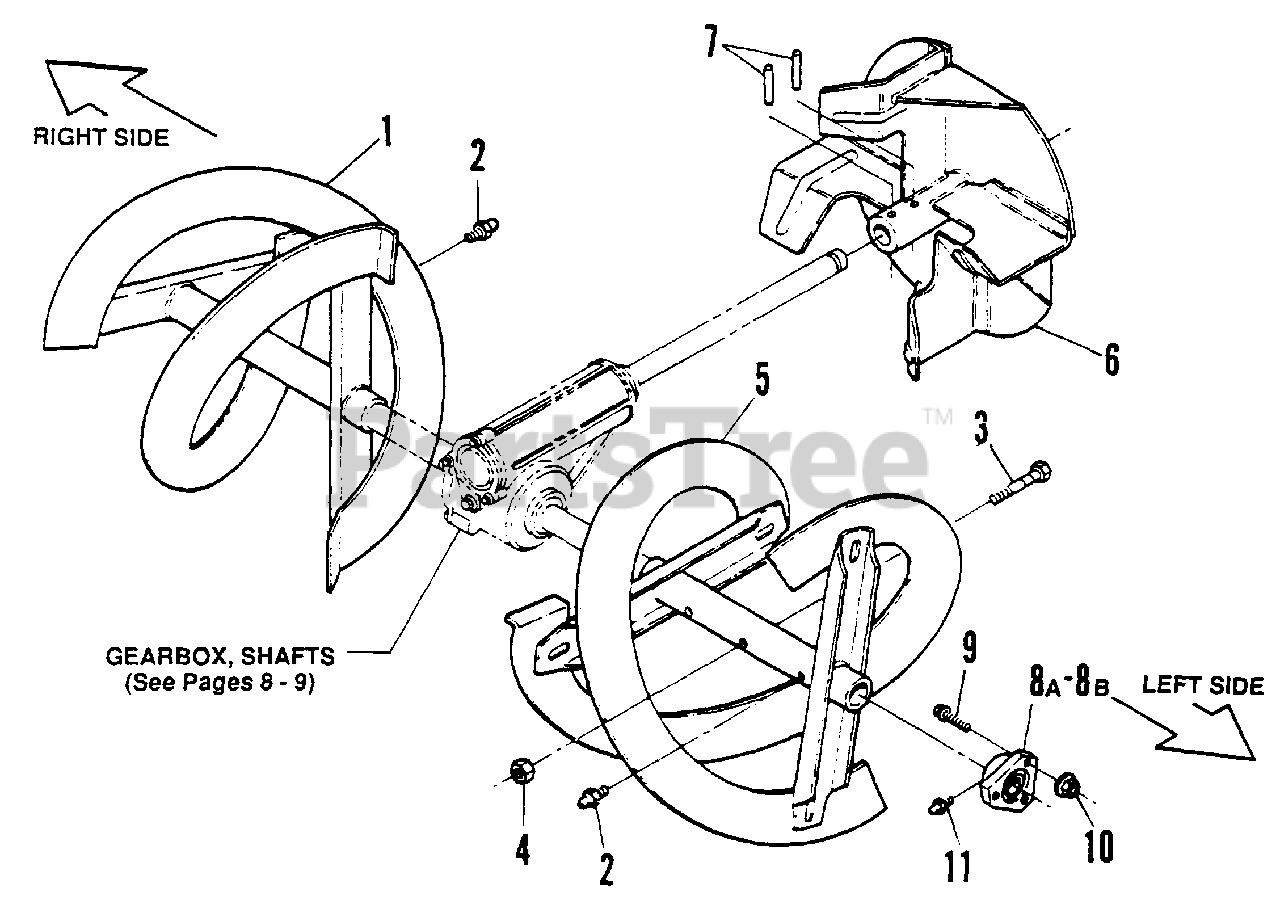

Augers, Impeller Parts Diagram

  • Title

1

Snapper 7049928

AUGER, Right Side

Note: (24" Units)

$

$

Not available

Snapper 7049935

AUGER, Right Side
(Superseded to 7049935YP)

Note: (26" Units)

$199.99

$

Usually ships in 2-12 days

0

Snapper 7049922

AUGER, Right Side
(Superseded to 7049922YP)

Note: (30" Units)

$307.99

$

Usually ships in 2-12 days

0

2

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 6

0

3

Snapper 7013865

BOLT, 5/16-18 x 1-7/8" Shear
(Superseded to 7091550YP)

$

$

Not available

4

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184 (Series 1 & 2)

$3.49

$

In Stock, Qty 10

0

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 91067 (Series 3 & 4)

$3.49

$

In Stock, Qty 10

0

5

Snapper 7049927

AUGER, Left Side

Note: (24" Units)

$

$

Not available

Snapper 7049936

AUGER, Left Side

Note: (26" Units)

$

$

Not available

Snapper 7049921

AUGER, Left Side
(Superseded to 7049921YP)

Note: (30" Units)

$245.99

$

Usually ships in 2-12 days

0

6

Snapper 7049677

FAN, Impeller

$

$

Not available

7

Snapper 7013862

PIN, 1/4 x 1-1/2" Roll
(Superseded to 7013862YP)

$4.49

$

In Stock, Qty 20+

0

8A

Snapper 7051490

ASSEMBLY, Bearing
(Superseded to 7051490YP)

Note: (24" Units) (Includes item 11)

$47.99

$

In Stock, only 2 left!

0

8B

Snapper 7051350

ASSEMBLY, Bearing
(Superseded to 7051350YP)

Note: (26" & 30" Units) (Includes Item 11)

$35.99

$

Usually ships in 2-12 days

0

9

Snapper 7090872

BOLT, 1/4-20 x 1-1/8" Hex Flange Lock
(Superseded to 7090872YP)

Note: (24" Units)

$3.49

$

Usually ships in 2-12 days

0

Snapper 7090699

BOLT, 1/4-20 x 3/4" Hex Flange Lock
(Superseded to 1935450SM)

Note: (26" & 30" Units)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583 (Series 1 & 2)

$4.49

$

In Stock, only 2 left!

0

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065 (Series 3 & 4)

$4.49

$

In Stock, only 2 left!

0

11

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, only 2 left!

0
