10304 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) HOUSING ASSEMBLY(MODEL NO. 10227) Parts Diagram

Silver Series Walk-Behind Mower

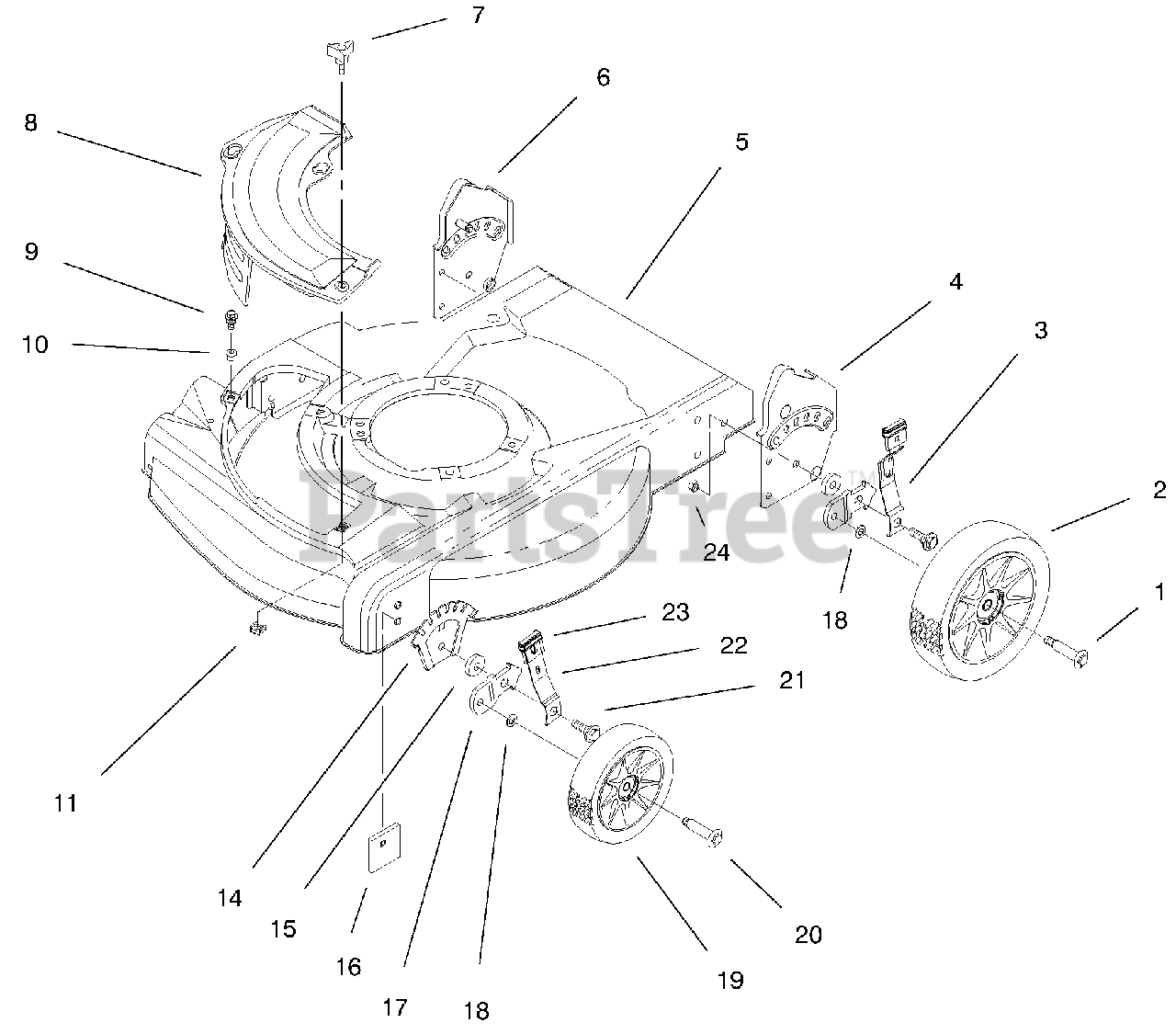

HOUSING ASSEMBLY(MODEL NO. 10227) Parts Diagram

  • Title

1

Lawn-Boy 614650

Bolt-Shoulder

$4.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 684777

Wheel & Tire Ass'y 8"

$52.99

$

In Stock, Qty 8

0

3

Lawn-Boy 92-1005

Spring Arm Assembly

$21.99

$

In Stock, only 2 left!

0

4

Lawn-Boy 92-7743

Bracket-Handle L.H.

$

$

Not available

5

Lawn-Boy 16-4359

Housing Assembly
(Superseded to 98-4471)

$

$

Not available

6

Lawn-Boy 92-7742

Bracket-Handle R.H.

$

$

Not available

7

Lawn-Boy 614682

Knob-Cover Plate
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 13

0

8

Lawn-Boy 92-8630

Plate-Mulch 21"

$

$

Not available

9

Lawn-Boy 614677

Screw-Sems Thr'd Form

$3.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 613765

Nut-Cage

$8.49

$

In Stock, Qty 11

0

14

Lawn-Boy 92-4881

Plate-Height Adjust
(Superseded to 92-4881-03)

$25.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-4890

Washer

$8.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 92-7731

Plate-Baffle

$8.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 614637

Bracket-Wheel Height Adj.
(Superseded to 95-7403-03)

$

$

Not available

18

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 684776

Wheel-Tire Assembly 6"

$33.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 92-1099

Bolt-Shoulder

$7.49

$

In Stock, Qty 10

0

21

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 9

0

22

Lawn-Boy 614687

Spring Arm Ass'y-Front

$21.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 92-1008

Knob-Height Adjust.

$12.99

$

In Stock, only 3 left!

0

24

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0
