10307 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) HANDLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

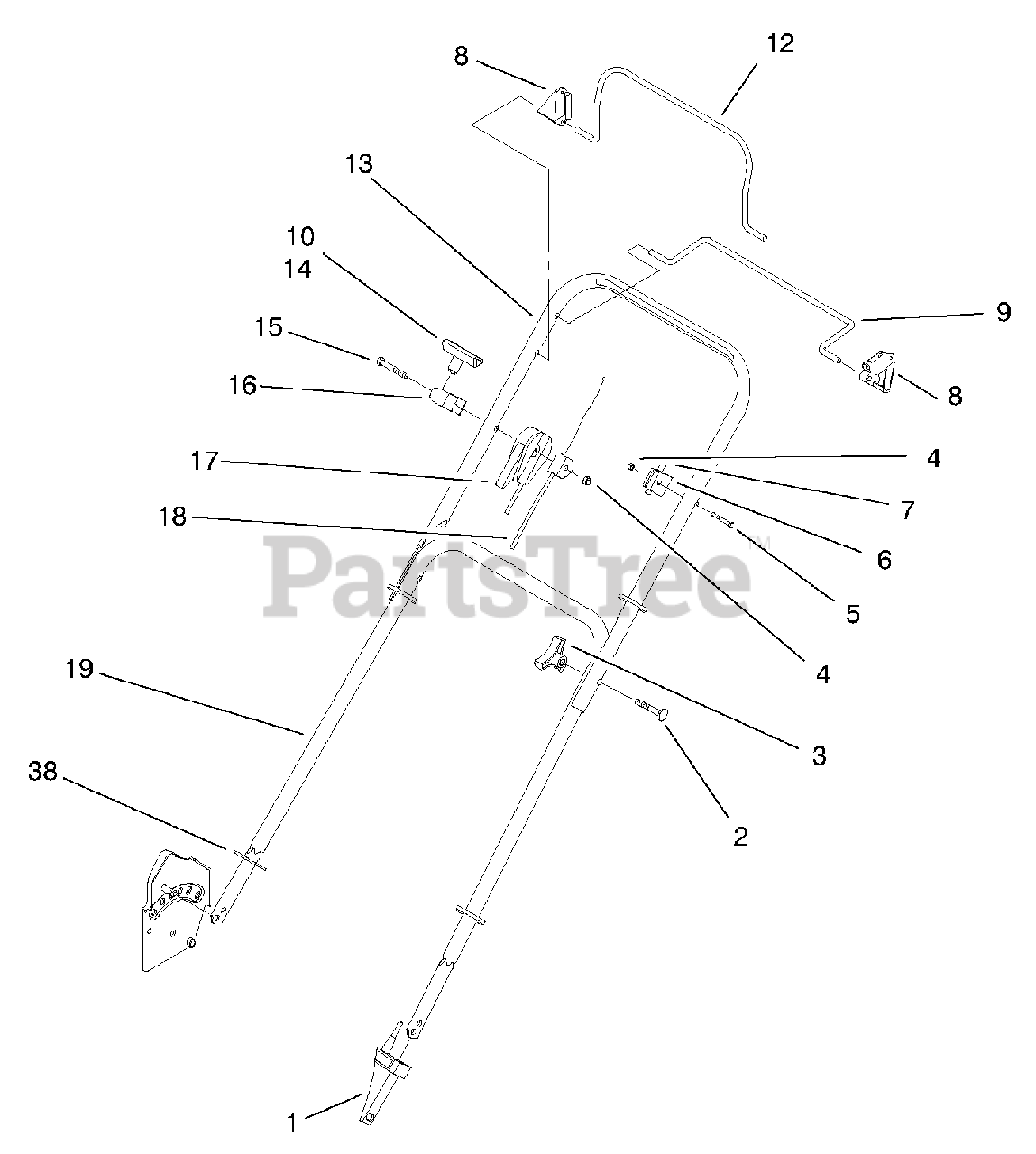

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 93-7380

Anchor-Cable

$12.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 92-2266

Screw-Handle

$5.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 92-7729

Anchor-Cable

$4.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 92-7726

Cable-Traction
(Superseded to 95-5590)

$29.99

$

In Stock, Qty 13

0

8

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-1001

Bail-Sp Control
(Superseded to 92-1001-03)

$50.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 92-5424

Staple-Handle

$1.49

$

In Stock, Qty 5

0

12

Lawn-Boy 93-4184

Bail-Flywheel Brake
(Superseded to 93-4184-03)

$34.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 95-1713

Handle Section-Upper
(Superseded to 95-1713-05)

$91.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 92-4853

Handle-Starter

$8.49

$

In Stock, only 3 left!

0

15

Lawn-Boy 321-49

Screw-HH

$1.49

$

In Stock, Qty 9

0

16

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 18

0

17

Lawn-Boy 92-1045

Cable-Throttle

$77.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 92-9589

ASM-Brake Cable

$81.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 614643

Handle Section-Lower
(Superseded to 614643-05)

$

$

Not available

38

Lawn-Boy 93-3653

Handle-Guard
(Superseded to 104-1013)

$15.99

$

Usually ships in 3-6 days

0
