10314 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE ASSEMBLY Parts Diagram
Silver Series Walk-Behind Mower

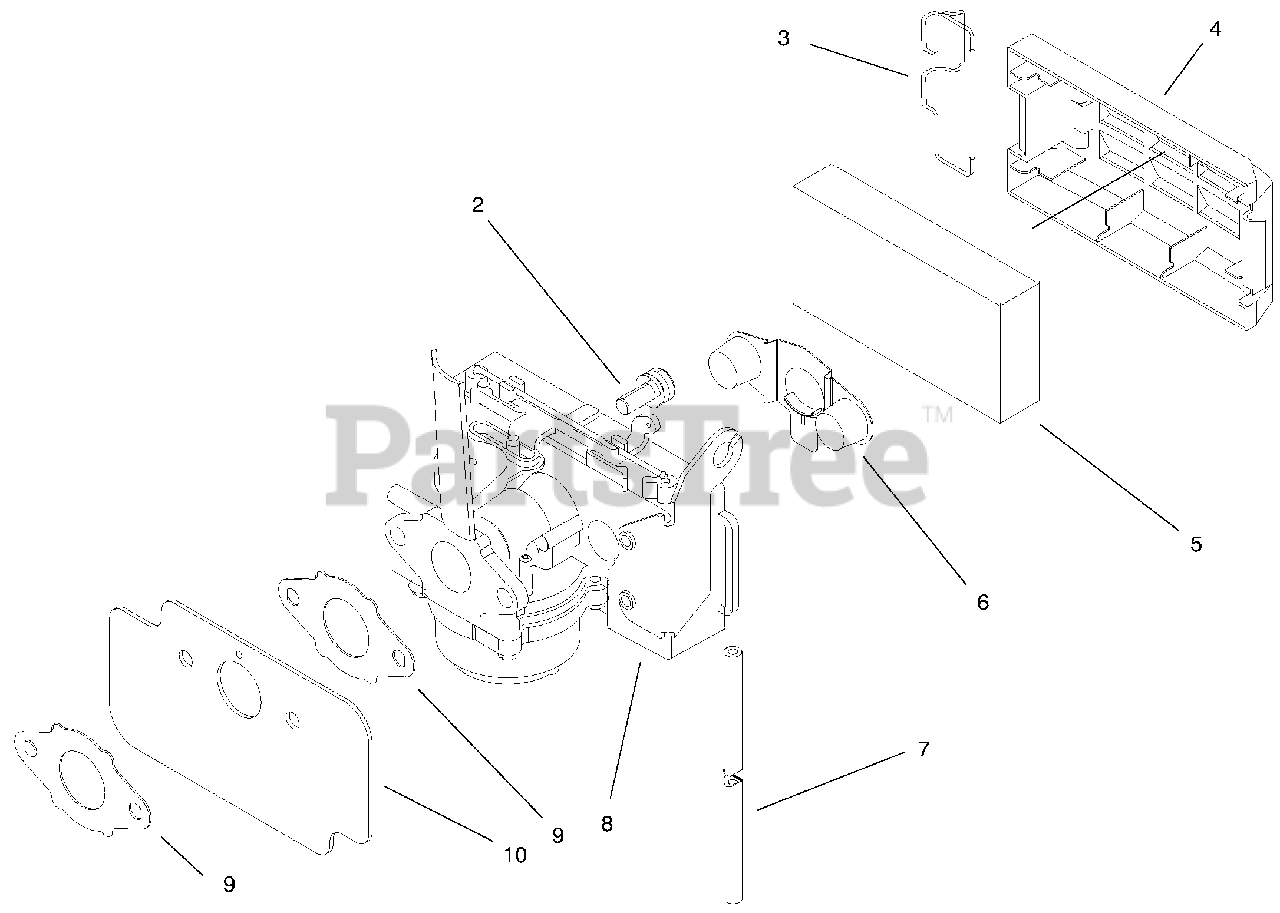

ENGINE ASSEMBLY Parts Diagram
Lawn-Boy 609482
Screw
$2.49
$
In Stock, Qty 8
Lawn-Boy 610383
Retainer-Filter
$7.99
$
In Stock, Qty 20+
Lawn-Boy 93-1231
Cover-Air Cleaner
$
$
Not available
$4.99
$
In Stock, Qty 20+
Lawn-Boy 93-4320
Shield-Fuel
$
$
Not available
Lawn-Boy 44-3174
Hose-Primer
$4.99
$
In Stock, Qty 20+
Lawn-Boy 93-4331
Carburetor Assembly (Incl. Ref. #9)
$242.99
$
Usually ships in 3-6 days
Lawn-Boy 92-4948
Gasket-Carburetor
$1.99
$
In Stock, Qty 20+
Lawn-Boy 93-1221
Shield-Carburetor
$
$
Not available
