10316 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12V802-3118-E1 Parts Diagram

Silver Series Walk-Behind Mower

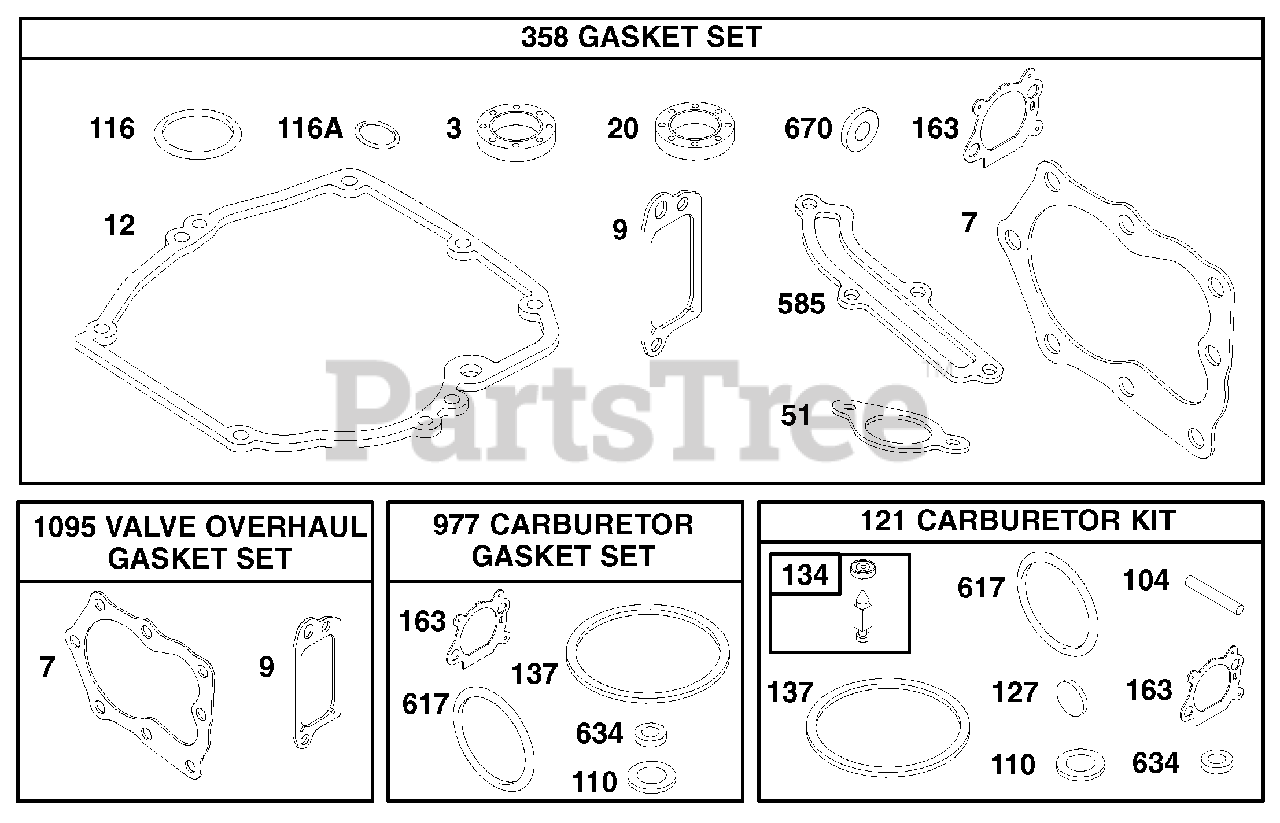

ENGINE BRIGGS & STRATTON MODEL 12V802-3118-E1 Parts Diagram

  • Title

3

Lawn-Boy 299819

Seal-Oil

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

7

Lawn-Boy 272916

Gasket-Cylinder Head

Note: Included in Gasket Set-Part Number 497316. Included in Valve Overhaul Gasket Set-Part No. 498528.

$

$

Currently unavailable

9

Lawn-Boy 272481

Gasket-Breather

Note: Included in Gasket Set-Part Number 497316. Included in Valve Overhaul Gasket Set-Part No. 498528.

$

$

Currently unavailable

12

Lawn-Boy 272198

Gasket-Crankcase

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

20

Lawn-Boy 399781

Seal-Oil

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

51

Lawn-Boy 272199

Gasket-Intake

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

104

Lawn-Boy 231371

Pin-Float Hinge
(Superseded to 701979)

Note: Included in Carburetor Kit-Part Number 498260.

$

$

Not available

110

Washer-Bowl (Sold in Kit Only)

Note: Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Not available

116

Lawn-Boy 280393

Seal-O-Ring

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

116A

Lawn-Boy 280966

Seal-O-Ring

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

121

Lawn-Boy 498260

Carburetor Kit

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part Number 498260.

$

$

Not available

134

Lawn-Boy 398188

Valve-Needle

Note: Included in Carburetor Kit-Part Number 498260.

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Not available

163

Lawn-Boy 272653

Gasket-Air Cleaner

Note: Included in Gasket Set-Part Number 497316. Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Currently unavailable

358

Lawn-Boy 497316

Gasket Set

$

$

Currently unavailable

585

Lawn-Boy 272238

Gasket-Breather Passage

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-Intake Manifold

Note: Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Currently unavailable

634

Washer-Foam (Sold in Kit Only)

Note: Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Not available

670

Lawn-Boy 493823

Spacer (Includes 2)

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

977

Lawn-Boy 498261

Gasket Set-Carburetor

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

1095

Lawn-Boy 498528

Gasket Set-Valve Overhaul

$

$

Currently unavailable
