10316 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12V802-3118-E1 Parts Diagram

Silver Series Walk-Behind Mower

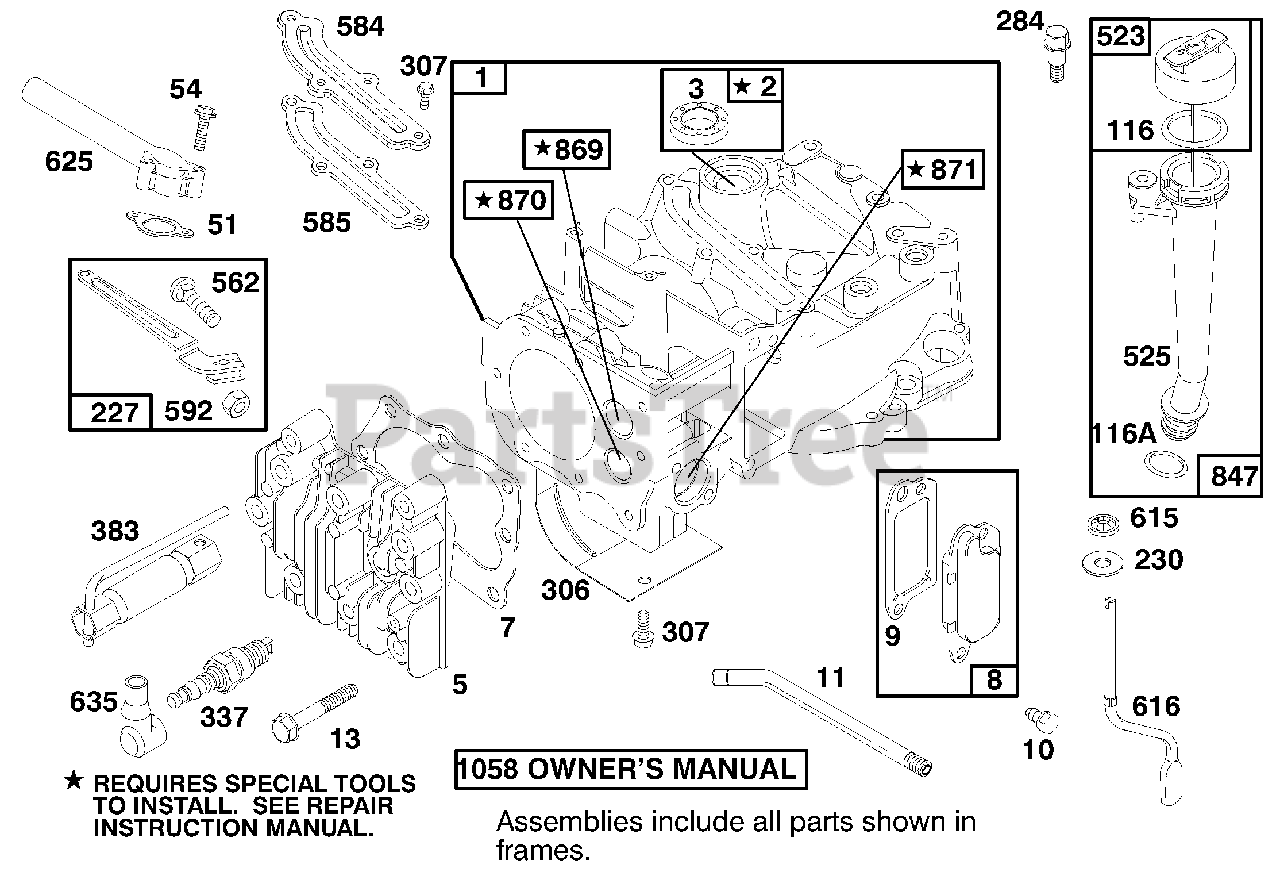

ENGINE BRIGGS & STRATTON MODEL 12V802-3118-E1 Parts Diagram

  • Title
1

Lawn-Boy 493260

Cylinder Assembly

$

$

Currently unavailable

2

Lawn-Boy 293708

Bushing-Cylinder

$

$

Currently unavailable

3

Lawn-Boy 299819

Seal-Oil

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

5

Lawn-Boy 214368

Head-Cylinder

$

$

Currently unavailable

7

Lawn-Boy 272916

Gasket-Cylinder Head

Note: Included in Gasket Set-Part Number 497316. Included in Valve Overhaul Gasket Set-Part No. 498528.

$

$

Currently unavailable

8

Lawn-Boy 495786

Breather-Valve Chamber

$

$

Currently unavailable

9

Lawn-Boy 272481

Gasket-Breather

Note: Included in Gasket Set-Part Number 497316. Included in Valve Overhaul Gasket Set-Part No. 498528.

$

$

Currently unavailable

10

Lawn-Boy 94955

Screw-Hex.

$

$

Currently unavailable

11

Lawn-Boy 231685

Tube-Breather

$

$

Currently unavailable

13

Lawn-Boy 94547

Screw-Hex.

$

$

Currently unavailable

51

Lawn-Boy 272199

Gasket-Intake

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

54

Lawn-Boy 94526

Screw-Hex.

$

$

Currently unavailable

116

Lawn-Boy 280393

Seal-O-Ring

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

116A

Lawn-Boy 280966

Seal-O-Ring

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

227

Lawn-Boy 492349

Lever Assembly-Gov.

$

$

Currently unavailable

230

$

$

Currently unavailable

284

Lawn-Boy 94511

Screw-Shoulder

$

$

Currently unavailable

306

Lawn-Boy 224324

Shield-Cylinder

$

$

Currently unavailable

307

Lawn-Boy 94515

Screw-Hex.

$

$

Currently unavailable

337

Lawn-Boy 802592

Plug-Spark

$

$

Currently unavailable

383

Lawn-Boy 89838

Wrench-Spark Plug

$

$

Currently unavailable

523

Lawn-Boy 495264

Dipstick

$

$

Currently unavailable

525

Lawn-Boy 495265

Tube-Oil Fill

$

$

Currently unavailable

562

Lawn-Boy 94907

Bolt-Carriage

$

$

Currently unavailable

584

Lawn-Boy 224328

Cover-Breather Passage

$

$

Currently unavailable

585

Lawn-Boy 272238

Gasket-Breather Passage

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

592

Lawn-Boy 231082

Nut-Hex.

$

$

Currently unavailable

615

Lawn-Boy 94474

Retainer

$

$

Currently unavailable

616

Lawn-Boy 263175

Crank-Governor

$

$

Currently unavailable

625

Lawn-Boy 497465

Manifold-Intake

$

$

Currently unavailable

635

Lawn-Boy 66538

Boot-Spark Plug

$

$

Currently unavailable

847

Lawn-Boy 495263

Dipstick / Tube Assembly

$

$

Currently unavailable

869

Lawn-Boy 213512

Seat-Valve (Intake)

$

$

Currently unavailable

870

Lawn-Boy 213513

Seat-Valve (Exhaust)

$

$

Not available

871

Lawn-Boy 262001

Guide-Exhaust Valve Note: 63709 Guide-Intake Valve

$

$

Currently unavailable

1058

Lawn-Boy 273693

Owner's Manual

$

$

Currently unavailable
