10317 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) HANDLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

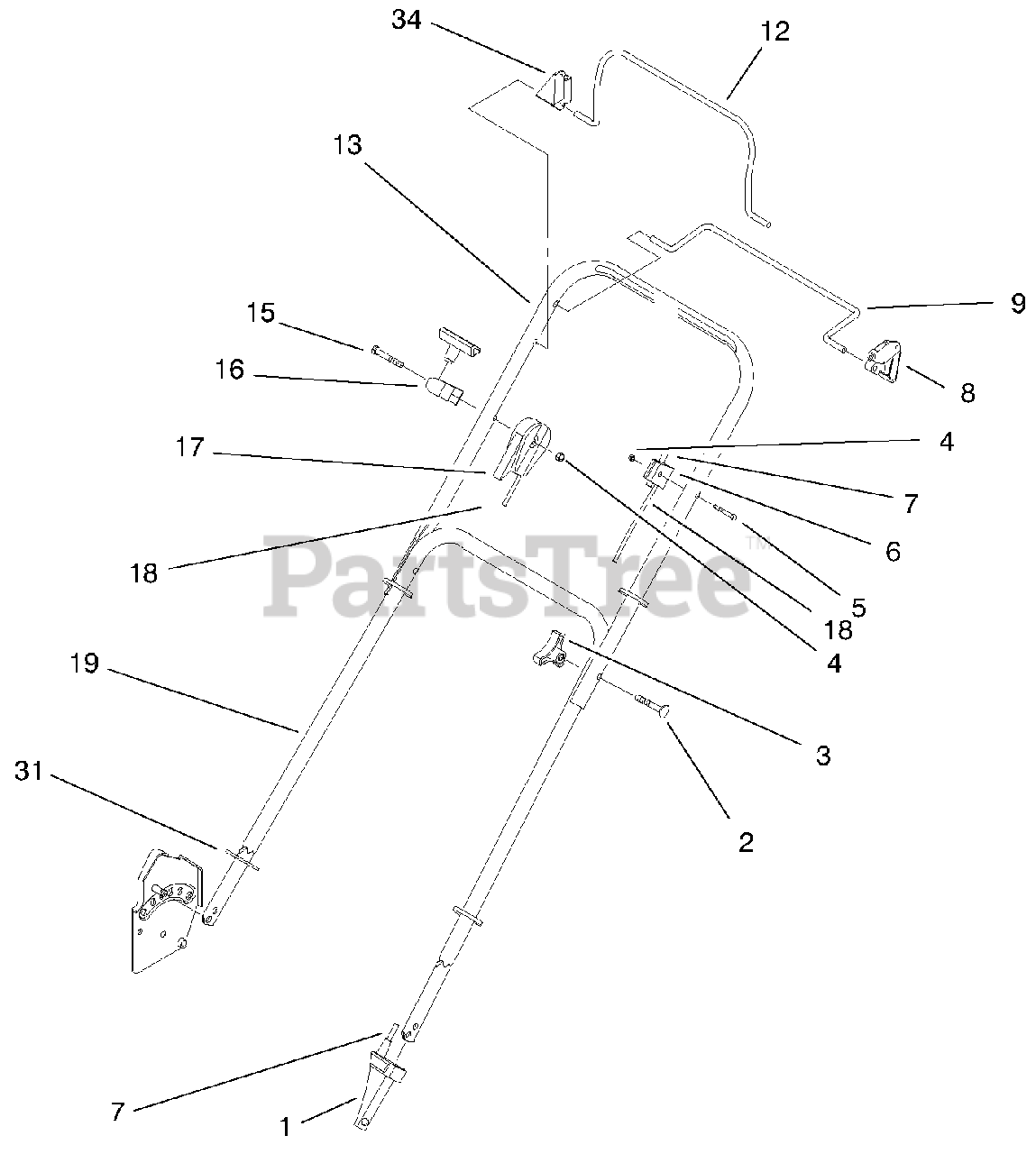

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 93-7380

Anchor-Cable

$12.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 92-2269

Screw-Handle

$6.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 94-6096

Anchor-Cable

$6.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 92-7726

Cable-Traction
(Superseded to 95-5590)

$29.99

$

In Stock, Qty 13

0

8

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-1001

Bail-Sp Control
(Superseded to 92-1001-03)

$50.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 94-6093

Card-Product Description

$

$

Currently unavailable

12

Lawn-Boy 94-6099

Bail-Flywheel Brake
(Superseded to 94-6099-03)

$

$

Not available

13

Lawn-Boy 95-1713

Handle Section-Upper
(Superseded to 95-1713-05)

$91.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 321-50

Screw

$1.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 16

0

17

Lawn-Boy 95-1720

Cable-Throttle

$59.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 95-1718

ASM-Brake Cable

$71.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 614643

Handle Section-Lower
(Superseded to 614643-05)

$

$

Not available

31

Lawn-Boy 93-3653

Handle-Guard
(Superseded to 104-1013)

$15.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 94-6097

Stop-Bail

$9.49

$

Usually ships in 3-6 days

0

35

Lawn-Boy 95-0656

Applique-Shroud

$

$

Not available
