10317 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) HOUSING ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

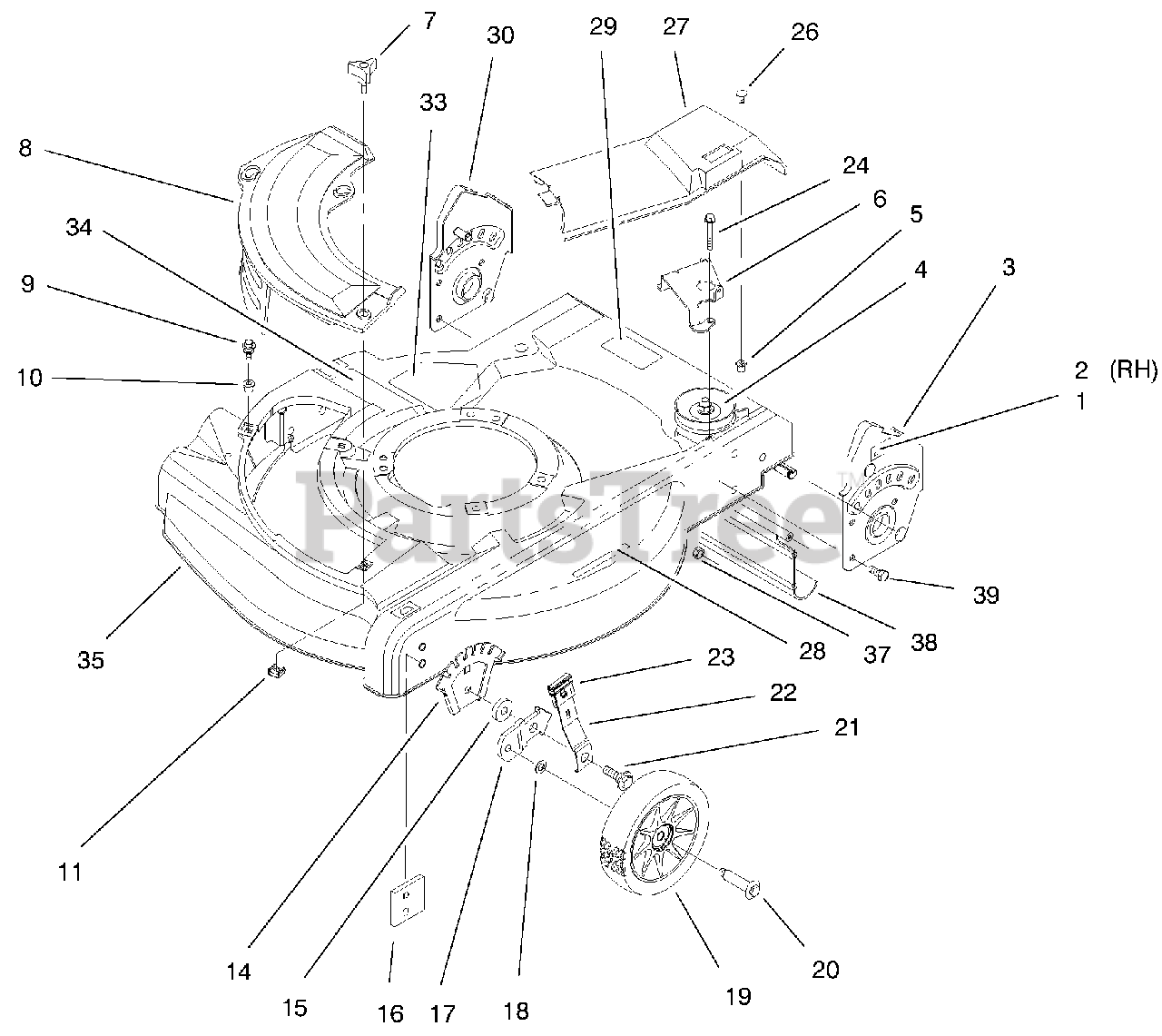

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-2915

Decal-HOC

$5.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-2914

Decal-HOC

$

$

Not available

3

Lawn-Boy 92-7724

ASM-Handle Bracket
(Superseded to 105-8604)

$47.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-7735

ASM-Gear Case
(Superseded to 104-7671)

$

$

Not available

5

Lawn-Boy 605120

Grommet

$3.99

$

In Stock, Qty 16

0

6

Lawn-Boy 92-7728

Guide-Transmission
(Superseded to 92-7728-03)

$7.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 614682

Knob-Cover Plate
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 13

0

8

Lawn-Boy 92-8630

Mulch Plate-21"

$

$

Not available

9

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 613765

Nut-Cage

$8.49

$

In Stock, Qty 11

0

14

Lawn-Boy 92-4881

Plate-Height Adjust
(Superseded to 92-4881-03)

$25.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-4890

Washer

$8.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 92-7731

Plate-Baffle

$8.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 614637

Bracket-Wheel Height Adj
(Superseded to 95-7403-03)

$

$

Not available

18

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 684776

ASM-Wheel & Tire 6"

$33.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 92-1099

Bolt-Shoulder 6" Wheel

$7.49

$

In Stock, Qty 10

0

21

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 9

0

22

Lawn-Boy 614687

Spring Arm-Front

$21.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 92-1008

Knob-Height Adjust

$12.99

$

In Stock, only 3 left!

0

24

Lawn-Boy 49-2040

Screw-HH

$2.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 92-9665

Screw-Phil

$1.99

$

In Stock, Qty 11

0

27

Lawn-Boy 614671

Cover-Drive
(Superseded to 92-8649)

$

$

Not available

28

Lawn-Boy 93-7250

Decal-Warning

$14.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 92-7723

ASM-Handle Bracket
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

$30.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 39-5770

Decal-Danger

$7.99

$

In Stock, Qty 8

0

34

Lawn-Boy 92-1097

Decal-Discharge

$

$

Not available

35

Lawn-Boy 16-4369

ASM-Housing & Baffle
(Superseded to 98-4477)

$293.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

38

Lawn-Boy 92-8647

Shield-Trailing

$35.99

$

In Stock, Qty 9

0

39

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0
