10318 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12V802-3118-E1 Parts Diagram

Silver Series Walk-Behind Mower

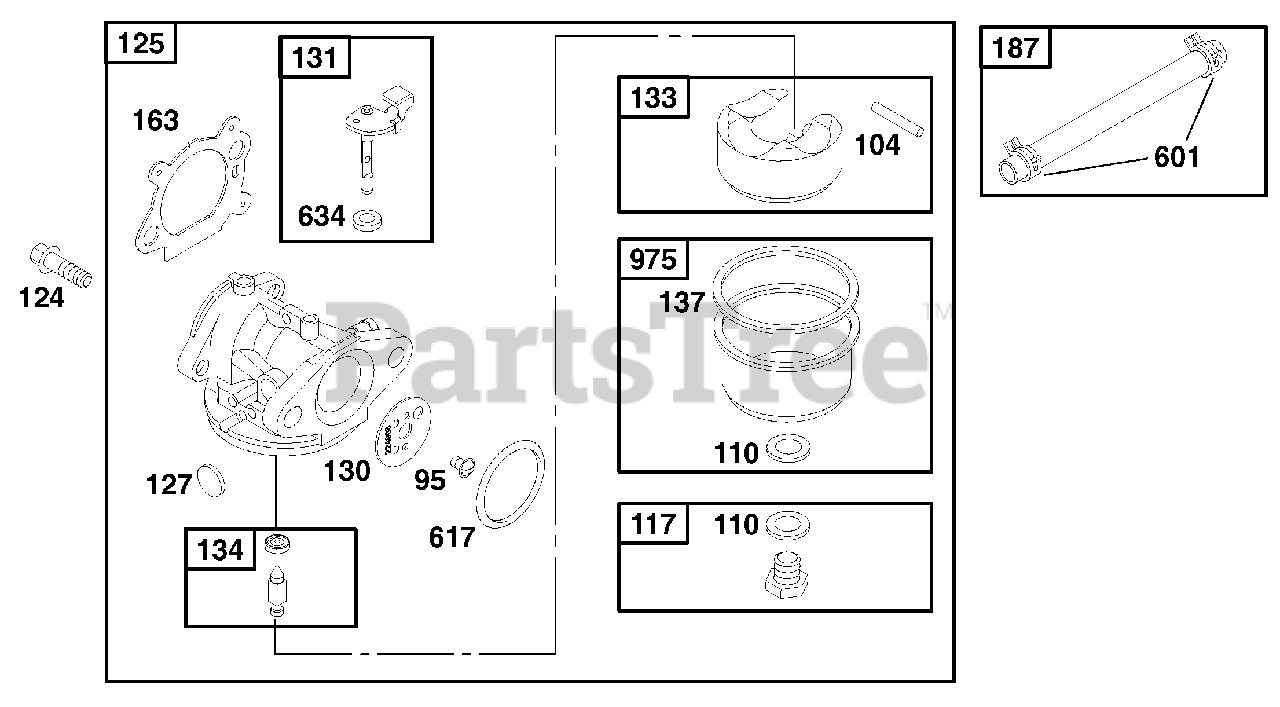

ENGINE BRIGGS & STRATTON MODEL 12V802-3118-E1 Parts Diagram

  • Title

95

Lawn-Boy 94098

Screw-Choke/Throttle

$

$

Currently unavailable

104

Lawn-Boy 231371

Pin-Float Hinge
(Superseded to 701979)

Note: Included in Carburetor Kit-Part Number 498260.

$

$

Not available

110

Washer-Bowl (Sold in Kit Only)

Note: Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Not available

117

Lawn-Boy 498975

Jet-Main (Standard)

$

$

Currently unavailable

124

Lawn-Boy 94525

Screw-Hex

$

$

Currently unavailable

125

Lawn-Boy 498966

Carburetor

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part Number 498260.

$

$

Not available

130

Lawn-Boy 224908

Valve-Throttle

$

$

Currently unavailable

131

Lawn-Boy 493267

Shaft Kit Throttle

$

$

Currently unavailable

133

Lawn-Boy 398187

Float-Carburetor

$

$

Currently unavailable

134

Lawn-Boy 398188

Kit-Needle/Seat

Note: Included in Carburetor Kit-Part Number 498260.

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Not available

163

Lawn-Boy 272653

Gasket-Air Cleaner

Note: Included in Gasket Set-Part Number 497316. Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Currently unavailable

187

Lawn-Boy 492790

Line-Fuel

$

$

Currently unavailable

601

Lawn-Boy 93053

Clamp-Hose (Green)

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-Intake Manifold

Note: Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Currently unavailable

634

Washer-Foam (Sold in Kit Only)

Note: Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Not available

975

Lawn-Boy 493640

Bowl Float

$

$

Currently unavailable
