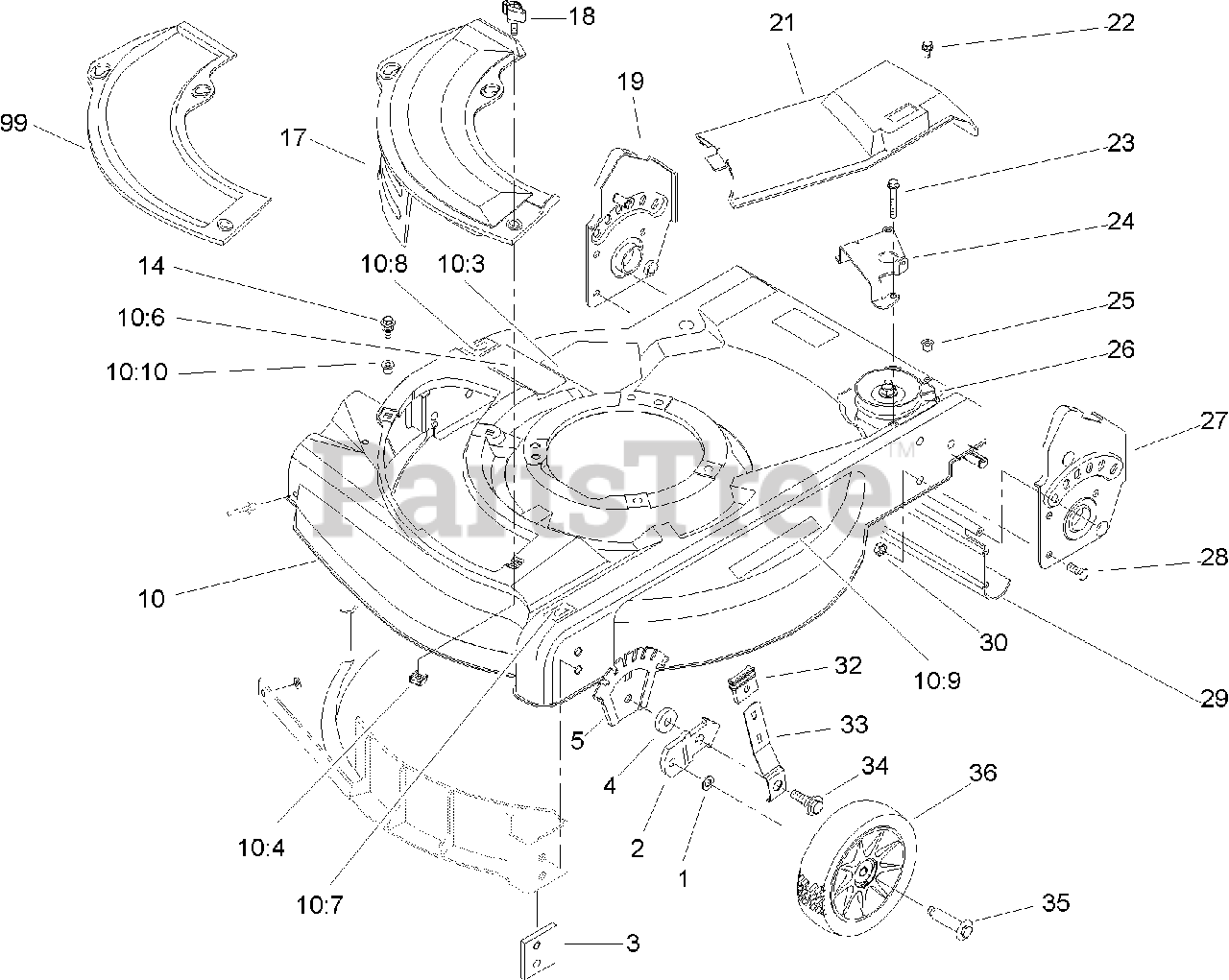

10324 C - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) HOUSING ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

3

Lawn-Boy 92-7731

PLATE-BAFFLE

$8.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-4890

WASHER-WHEEL

$8.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 92-4881-03

PLATE-HEIGHT, ADJUSTMENT

$25.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 104-7639

HOUSING

$724.99

$

Usually ships in 3-6 days

0

10:3

Lawn-Boy 56-6270

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

10:4

Lawn-Boy 613765

NUT-CAGE

$8.49

$

In Stock, Qty 11

0

10:6

Lawn-Boy 104-7629

DECAL-WARNING

$

$

Not available

10:7

Lawn-Boy 104-7616

DECAL-HOC, LH

$5.49

$

Usually ships in 3-6 days

0

10:8

Lawn-Boy 104-7617

DECAL-HOC, RH

$

$

Not available

10:9

Lawn-Boy 104-7627

DECAL-WARNING

$

$

Not available

10:10

Lawn-Boy 94-1610

NUT-CLIP

$0.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 614677

SCREW-SEMS

$3.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 92-8630

PLATE-MULCH

$

$

Not available

18

Lawn-Boy 98-8332

KNOB

$5.49

$

In Stock, Qty 13

0

19

Lawn-Boy 105-8602

RH BRACKET ASM

$45.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 95-7413

COVER-DRIVE

$23.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 92-9665

SCREW-THREAD CUT

$1.99

$

In Stock, Qty 11

0

23

Lawn-Boy 65-5221

SCREW-HWHTF

$1.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 95-1732-03

Guide-Transmission

$9.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 605120

NUT-CLIP

$3.99

$

In Stock, Qty 16

0

26

Lawn-Boy 104-7672

GEAR CASE ASM

$332.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 105-8604

LH BRACKET ASM

$47.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 92-8647

SHIELD-TRAILING

$35.99

$

In Stock, Qty 9

0

30

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$12.99

$

In Stock, only 3 left!

0

33

Lawn-Boy 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

34

Lawn-Boy 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 9

0

35

Lawn-Boy 92-1099

BOLT-SHOULDER

$7.49

$

In Stock, Qty 10

0

36

Lawn-Boy 684776

WHEEL AND TIRE ASM

$33.99

$

In Stock, Qty 20+

0

99

Lawn-Boy 95-7052

PLATE-OPENING, CHUTE

$30.99

$

In Stock, only 2 left!

0
