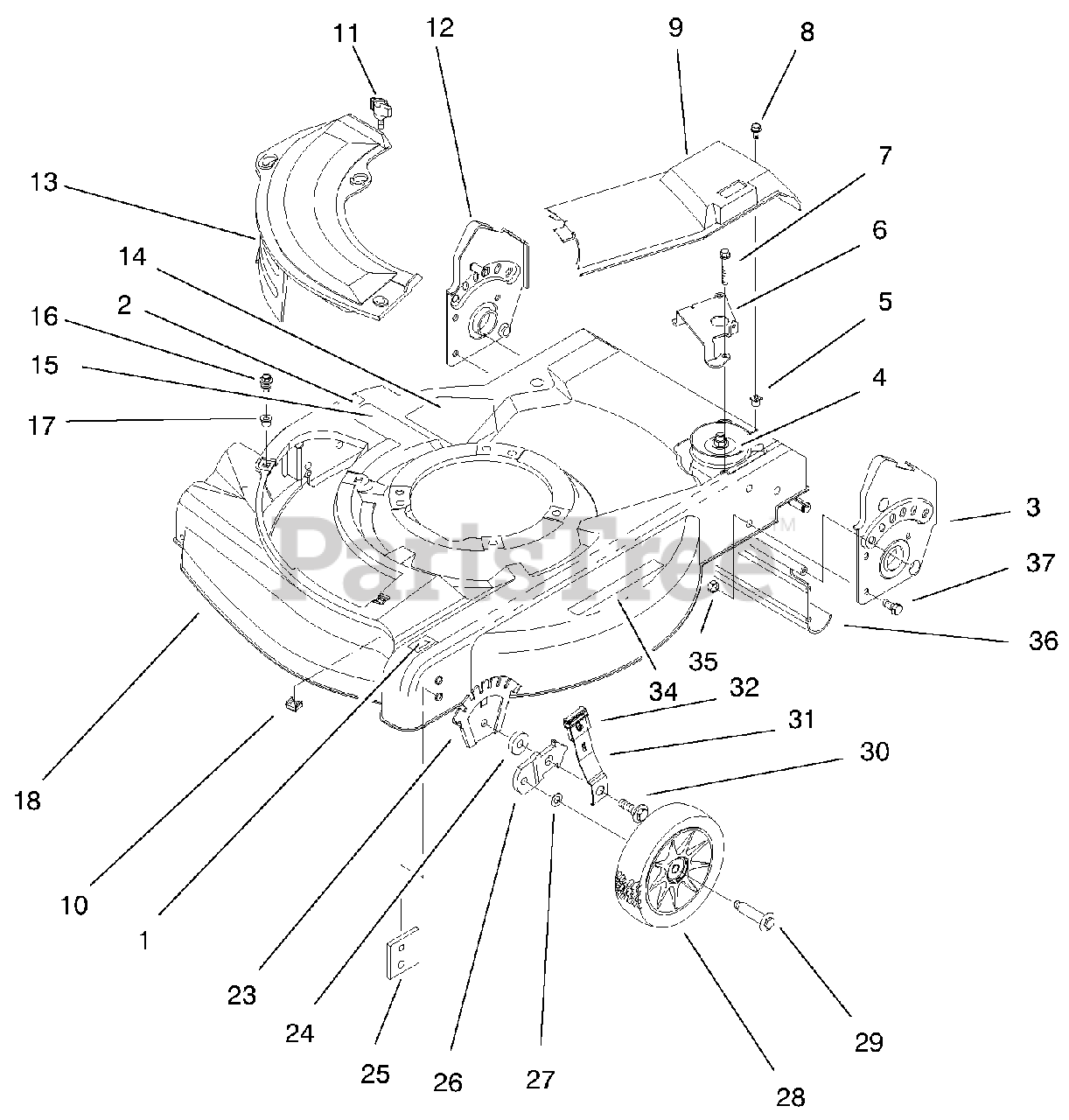

10324 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) HOUSING ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-2915

Decal-HOC L

$5.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-2914

Decal-HOC R

$

$

Not available

3

Lawn-Boy 92-7724

LH Handle Brkt ASM
(Superseded to 105-8604)

$47.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 95-7412

Assembly-Gear Case
(Superseded to 104-7672)

$332.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 605120

Grommet

$3.99

$

In Stock, Qty 16

0

6

Lawn-Boy 95-1732-03

Guide-Transmission

$9.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 65-5221

Screw-Thread Forming

$1.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 92-9665

Screw-Pth

$1.99

$

In Stock, Qty 11

0

9

Lawn-Boy 95-7413

Cover-Drive

$23.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 613765

Nut-Cage

$8.49

$

In Stock, Qty 11

0

11

Lawn-Boy 98-8332

Knob

$5.49

$

In Stock, Qty 13

0

12

Lawn-Boy 92-7723

RH Handle Brkt ASM
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

14

Lawn-Boy 43-8480

Decal-Danger

$6.49

$

In Stock, Qty 8

0

15

Lawn-Boy 99-6018

Decal-Warning

$2.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 98-4472

ASM-Housing & Baffle

$779.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 92-4881-03

Plate-Hght Adj

$25.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 92-4890

Washer-Wheel

$8.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 92-7731

Plate-Baffle

$8.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 95-7403-03

Bracket-Wheel Ht Adj

$

$

Not available

27

Lawn-Boy 40-1940

Washer-Wheel Bolt

$2.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 684776

6" Wheel & Tire ASM

$33.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 92-1099

Bolt-Shoulder 6" Wheel

$7.49

$

In Stock, Qty 10

0

30

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 9

0

31

Lawn-Boy 614687

Arm-Front Spring

$21.99

$

In Stock, only 3 left!

0

32

Lawn-Boy 92-1008

Knob-Height Adj Lever

$12.99

$

In Stock, only 3 left!

0

34

Lawn-Boy 93-7250

Decal-Safety

$14.99

$

In Stock, only 2 left!

0

35

Lawn-Boy 3296-29

Nut-Lock Ni

$2.49

$

In Stock, Qty 20+

0

36

Lawn-Boy 92-8647

Shield-Trailing

$35.99

$

In Stock, Qty 9

0

37

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

Lawn-Boy 95-7052

Plate-Chute Opening

Note: Not Illustrated

$30.99

$

In Stock, only 2 left!

0
