10329 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) HANDLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

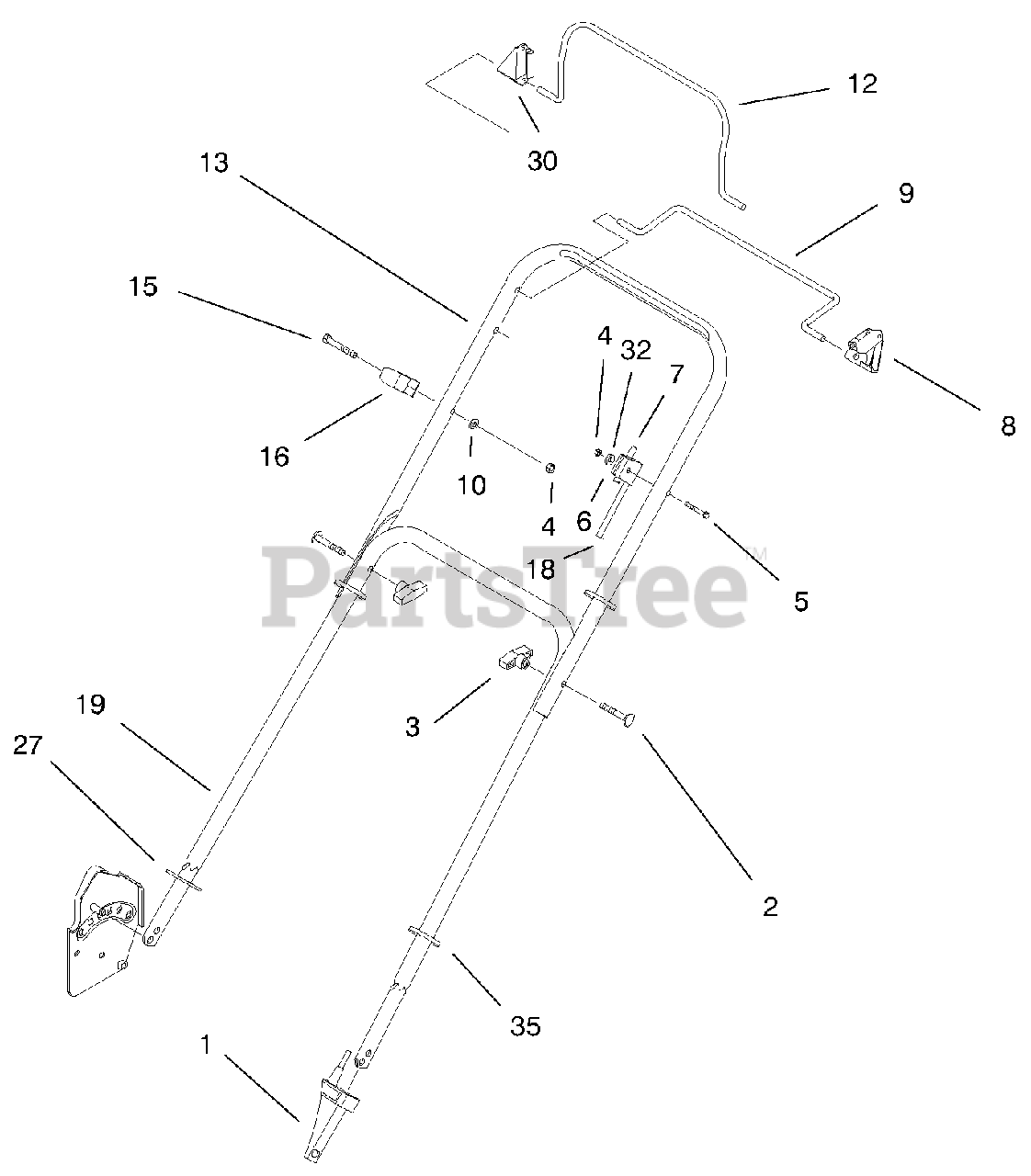

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 93-7380

Anchor-Cable

$12.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 98-7134

Knob

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 92-2269

Screw-Handle

$6.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 94-6096

Anchor-Cable

$6.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 95-5590

Cable-Traction

$29.99

$

In Stock, Qty 13

0

8

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-1001

Bail-Sp Control
(Superseded to 92-1001-03)

$50.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 92-8632

Washer
(Superseded to 115-0995)

$6.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 94-6099

Bail-Flywheel Brake
(Superseded to 94-6099-03)

$

$

Not available

13

Lawn-Boy 95-1713

Handle Section-Upper
(Superseded to 95-1713-05)

$91.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 321-51

Bolt-Hex

$1.49

$

In Stock, only 3 left!

0

16

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 17

0

18

Lawn-Boy 95-1718

ASM-Brake Cable

$71.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 614643

Handle Section-Lower
(Superseded to 614643-05)

$

$

Not available

27

Lawn-Boy 93-3653

Handle-Guard
(Superseded to 104-1013)

$15.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 94-6097

Stop-Bail

$9.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

35

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 20+

0
