10330 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) MULCH PLATE & WHEEL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

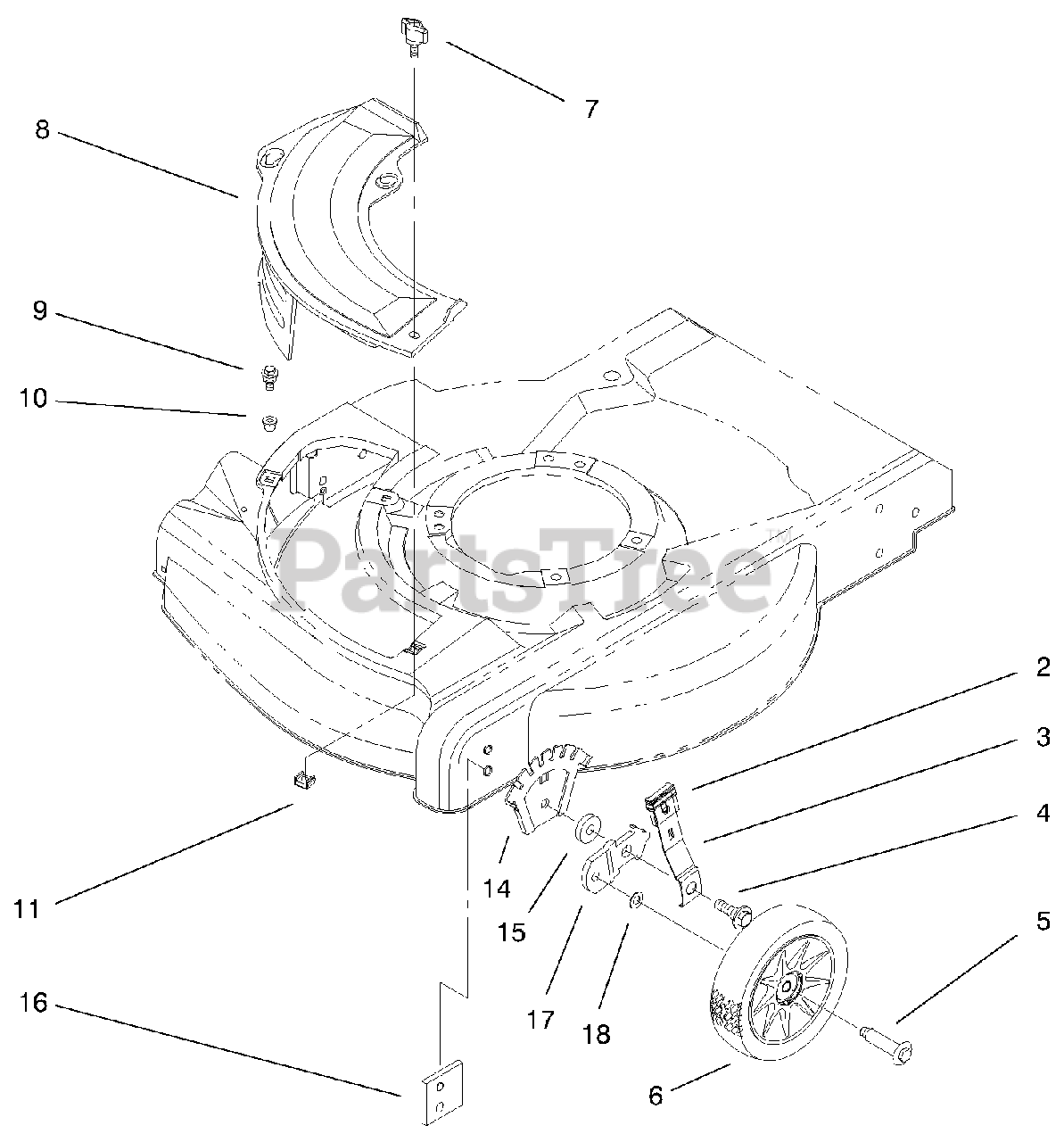

MULCH PLATE & WHEEL ASSEMBLY Parts Diagram

  • Title

2

Lawn-Boy 92-1008

Knob-Height Adjust

$12.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 614687

Spring Arm-Front

$21.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 9

0

5

Lawn-Boy 92-1099

Bolt-Shoulder

$7.49

$

In Stock, Qty 10

0

6

Lawn-Boy 684776

ASM-Wheel & Tire 6"

$33.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 98-8332

Knob-Cover Plate

$5.49

$

In Stock, Qty 13

0

8

Lawn-Boy 92-8630

Mulch Plate-21"

$

$

Not available

9

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 613765

Nut-Cage

$8.49

$

In Stock, Qty 11

0

14

Lawn-Boy 92-4881

Plate-Height Adjust
(Superseded to 92-4881-03)

$25.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-4890

Washer

$8.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 92-7731

Plate-Baffle

$8.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 95-7403

Bracket-Wheel Height Adj
(Superseded to 95-7403-03)

$

$

Not available

18

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 95-7052

Plate-Cover

Note: Not Illustrated

$30.99

$

In Stock, only 1 left!

0
