10330 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) HOUSING ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

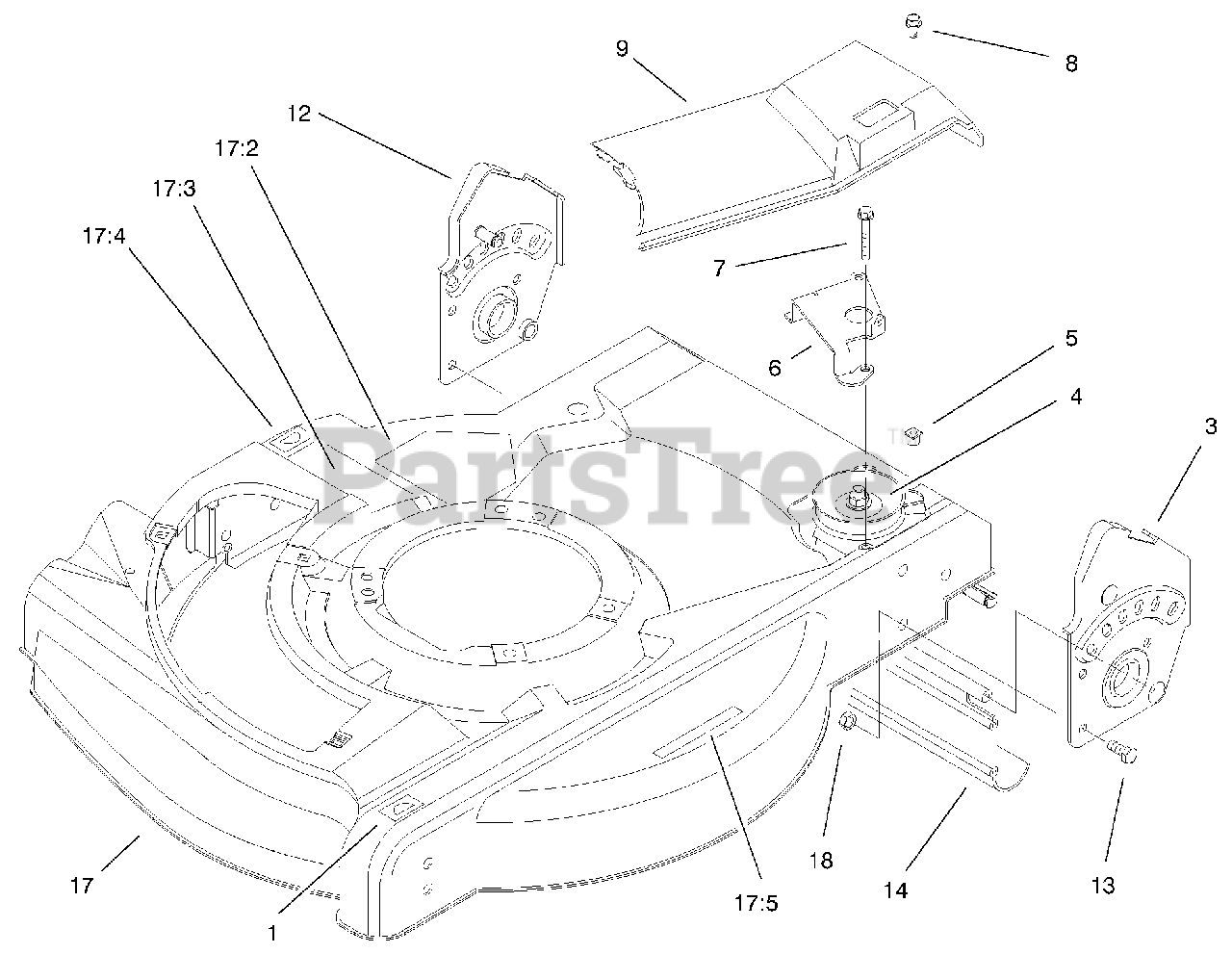

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-2915

Decal-HOC

$5.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 92-7724

ASM-Handle Bracket
(Superseded to 105-8604)

$47.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-7735

ASM-Gear Case
(Superseded to 104-7671)

$

$

Not available

5

Lawn-Boy 605120

Grommet

$3.99

$

In Stock, Qty 16

0

6

Lawn-Boy 92-7728

Guide-Transmission
(Superseded to 92-7728-03)

$7.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 65-5221

Screw-Thread Forming

$1.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 92-9665

Screw-Phil

$1.99

$

In Stock, Qty 11

0

9

Lawn-Boy 95-7068

Cover-Drive

$25.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 92-7723

ASM-Handle Bracket
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 92-8647

Shield-Trailing

$35.99

$

In Stock, Qty 9

0

17

Lawn-Boy 98-4477

ASM-Housing & Baffle

$293.99

$

Usually ships in 3-6 days

0

17:2

Lawn-Boy 43-8480

Decal-Danger

$6.49

$

In Stock, Qty 8

0

17:3

Lawn-Boy 99-6018

Decal-Discharge

$2.49

$

Usually ships in 3-6 days

0

17:4

Lawn-Boy 92-2914

Decal-HOC

$

$

Not available

17:5

Lawn-Boy 93-7250

Decal-Warning

$14.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0
