10334 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HANDLE AND CONTROLS ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

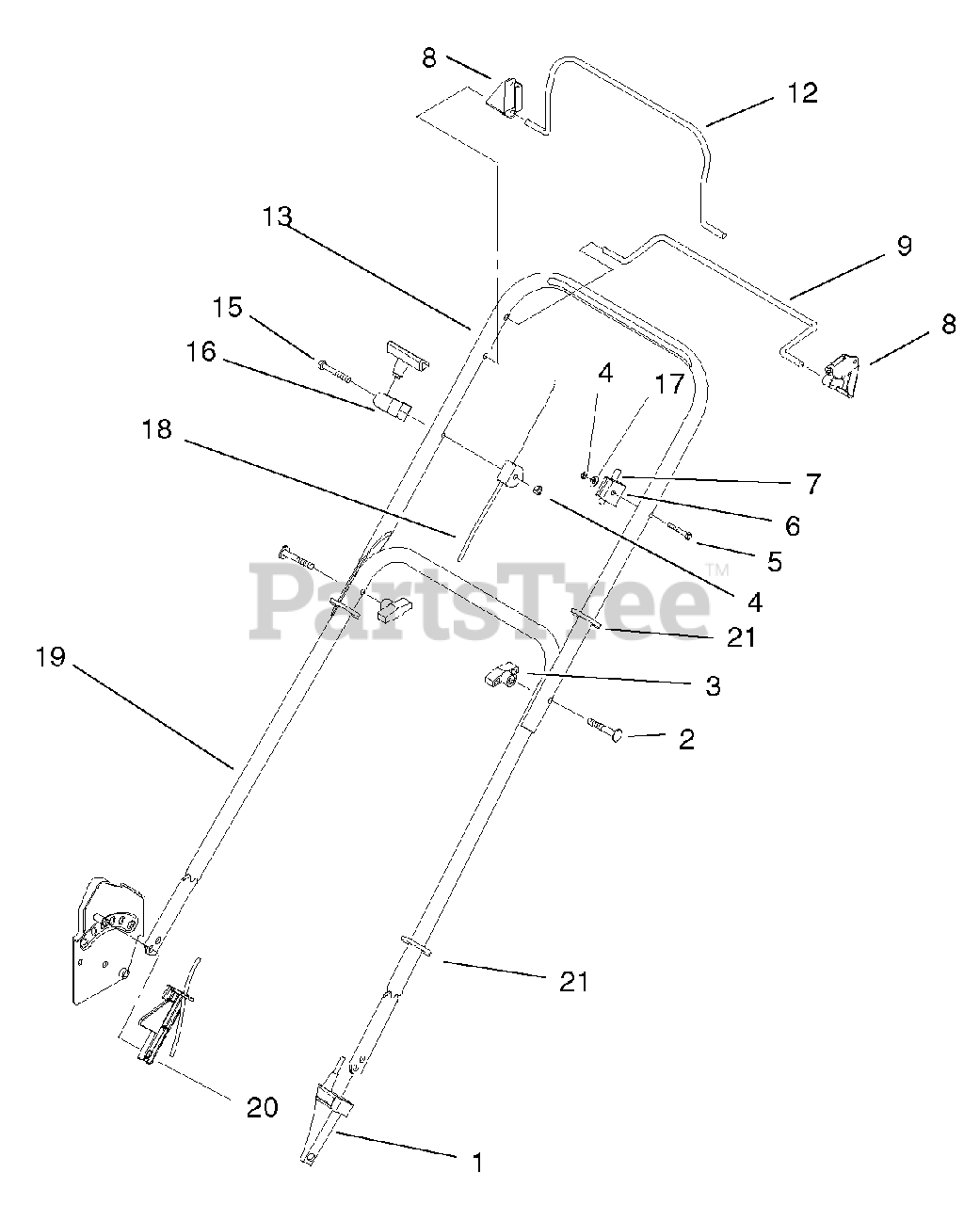

HANDLE AND CONTROLS ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 93-7380

Anchor-Cable

$12.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 614697

Screw

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 98-7134

Knob-Handle

$2.99

$

In Stock, Qty 18

0

4

Lawn-Boy 3296-73

Nut-Lock, NI

$5.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 92-2266

Screw-Handle

$5.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 92-7729

Anchor-Upper, Cable

$4.99

$

In Stock, Qty 18

0

7

Lawn-Boy 100-5982

Cable-Ground Speed

$34.99

$

In Stock, Qty 11

0

8

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 18

0

9

Lawn-Boy 92-1001-03

Bail-Control

$50.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 93-4184-03

Bail-Brake

$34.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 100-2888-05

Handle-Upper

$

$

Not available

15

Lawn-Boy 321-50

Screw-HH

$1.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 93-7383

Rope-Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 15

0

17

Lawn-Boy 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 100-5989

Brake Cable ASM

$29.99

$

In Stock, Qty 8

0

19

Lawn-Boy 614643-05

Handle-Lower Section

$

$

Not available

20

Lawn-Boy 104-1013

Guard-Handle

$15.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 20+

0
