10335 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) HANDLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

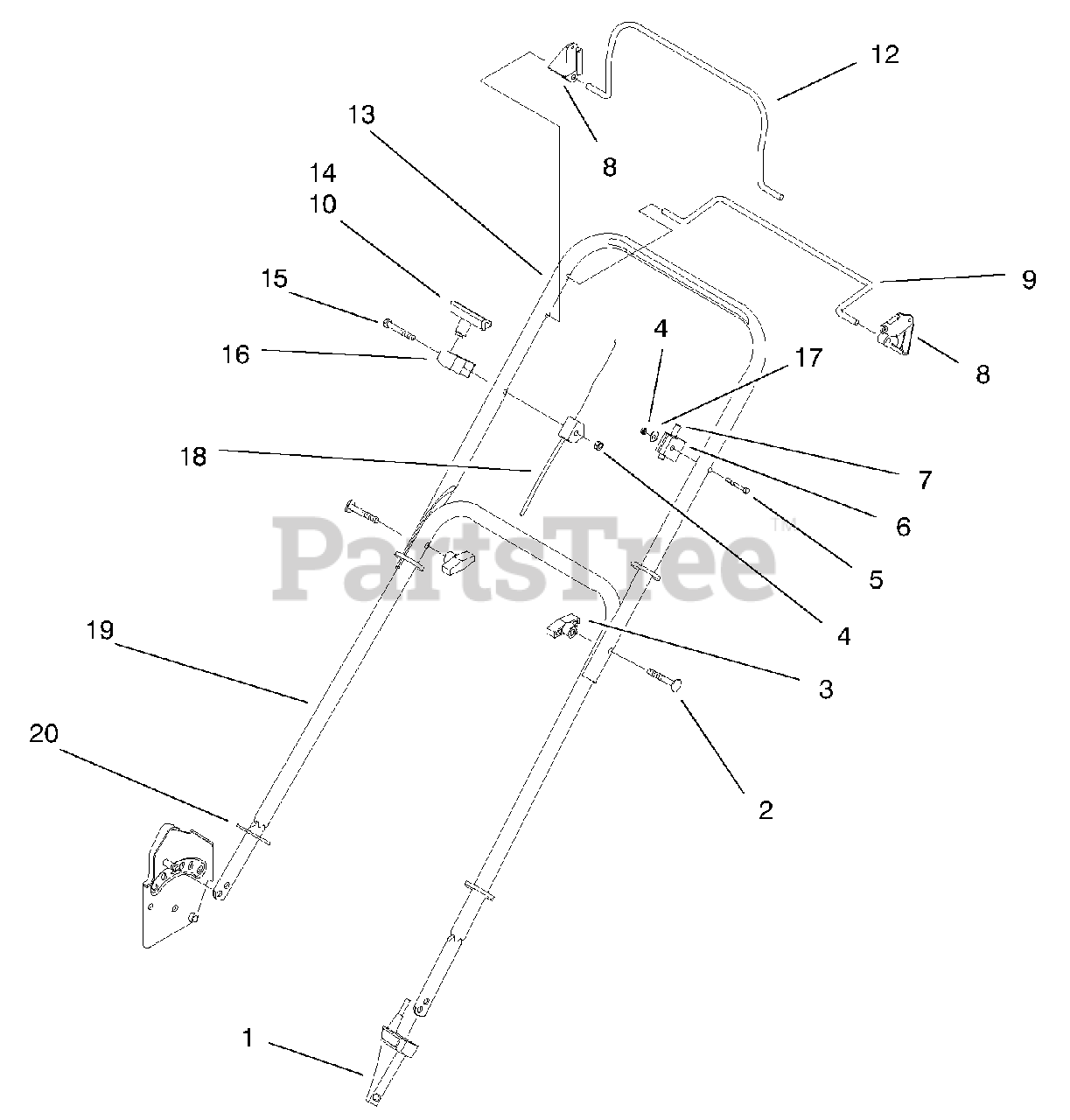

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 93-7380

Anchor-Cable

$12.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 614697

Screw-HH

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 98-7134

Knob-Handle

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 92-2266

Screw-Handle

$5.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 92-7729

Anchor-Upper Sp Cable

$4.99

$

In Stock, Qty 19

0

7

Lawn-Boy 92-7726

Cable-Traction
(Superseded to 95-5590)

$29.99

$

In Stock, Qty 12

0

8

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-1001-03

Bail-Sp Control

$50.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 92-5424

Handle Staple

$1.49

$

In Stock, Qty 5

0

12

Lawn-Boy 93-4184-03

Bail-Brake

$34.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 95-1713-05

Handle-Upper

$91.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 92-4853

Handle-Starter

$8.49

$

In Stock, only 3 left!

0

15

Lawn-Boy 321-50

Screw-HH

$1.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 93-7383

Rope-Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 15

0

17

Lawn-Boy 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 98-1560

ASM Brake Cable

$35.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 614643-05

Section-Lower Handle

$

$

Not available

20

Lawn-Boy 93-3653

Guard-Handle
(Superseded to 104-1013)

$15.99

$

Usually ships in 3-6 days

0

99

Lawn-Boy 613455

Wire Hanger,

Note: Not illustrated

$62.99

$

In Stock, only 4 left!

0

99

Lawn-Boy 613462-03

Clamp-Hanger

Note: Not illustrated

$

$

Not available

99

Lawn-Boy 684728

Bag & Adapter ASM

Note: Not illustrated

$

$

Not available

99

Lawn-Boy 684729

Chute & Support

Note: Not illustrated

$

$

Not available
